Robuschi RBS - Page 26

26
4 INSTALLATION
4.1 On-site positioning of blower
The blower has to be set horizontally on a level surface and attached using screws which secure the feet or
the outlet flange ( /F e /SP version).

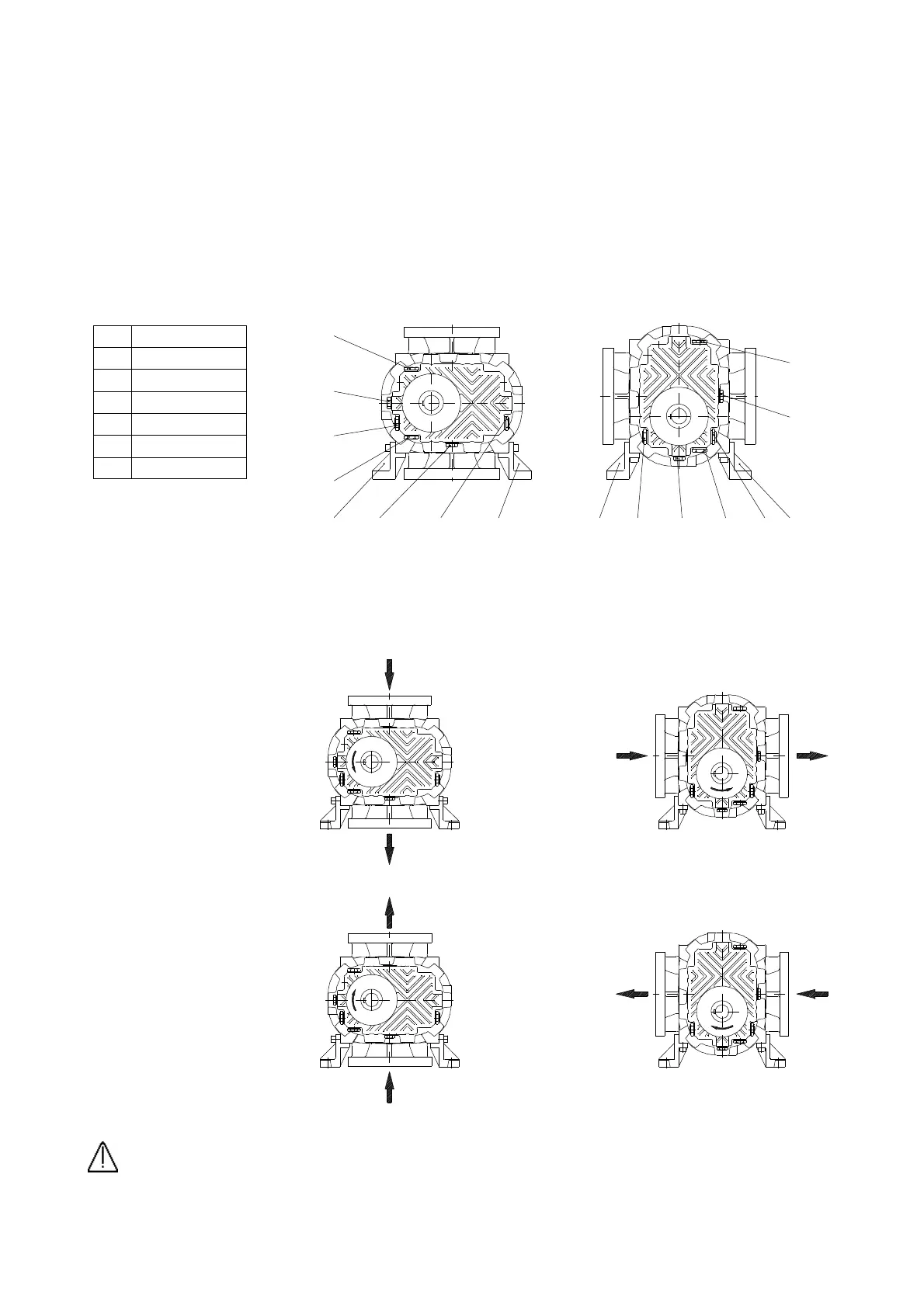

4.2 Changing the inlet/outlet arrangement (from size 35 to 155 only)
To move from the arrangement with inlet and outlet on a vertical axis to that with inlet and outlet on a
horizontal axis and vice versa exchange the oil levels by changing the position of the plugs in accordance
with Fig. 4 on both blower sumps.
Pos Description
Ps Left foot
Pd Right foot
Tc Oil fill plug
Ts Oil drain plug
T Plugs
L Oil level plugs
Fig. 4
4.3 Direction of rotation – Gas flow direction
Standard blower
Blower – F.I.
with inverted flow
Fig. 5
Warning : Do not use the blower with a direction of rotation or a flow direction different from
that one shown in Fig 5.
Tc
Ts
Pd
L
T
Ts
L
Ps
L
Pd
Ts
Ps
T
L
Ts
Tc
