iii) Terminating into a gully, below the grid
level but above the water level
iv) Into a soakaway
Note:
If any condensate pipework is to be installed
externally then it should be kept to a minimum
and be insulated with a waterproof insulation
and have a continuous fall. The total length
of external pipe used should not exceed 3
meters.

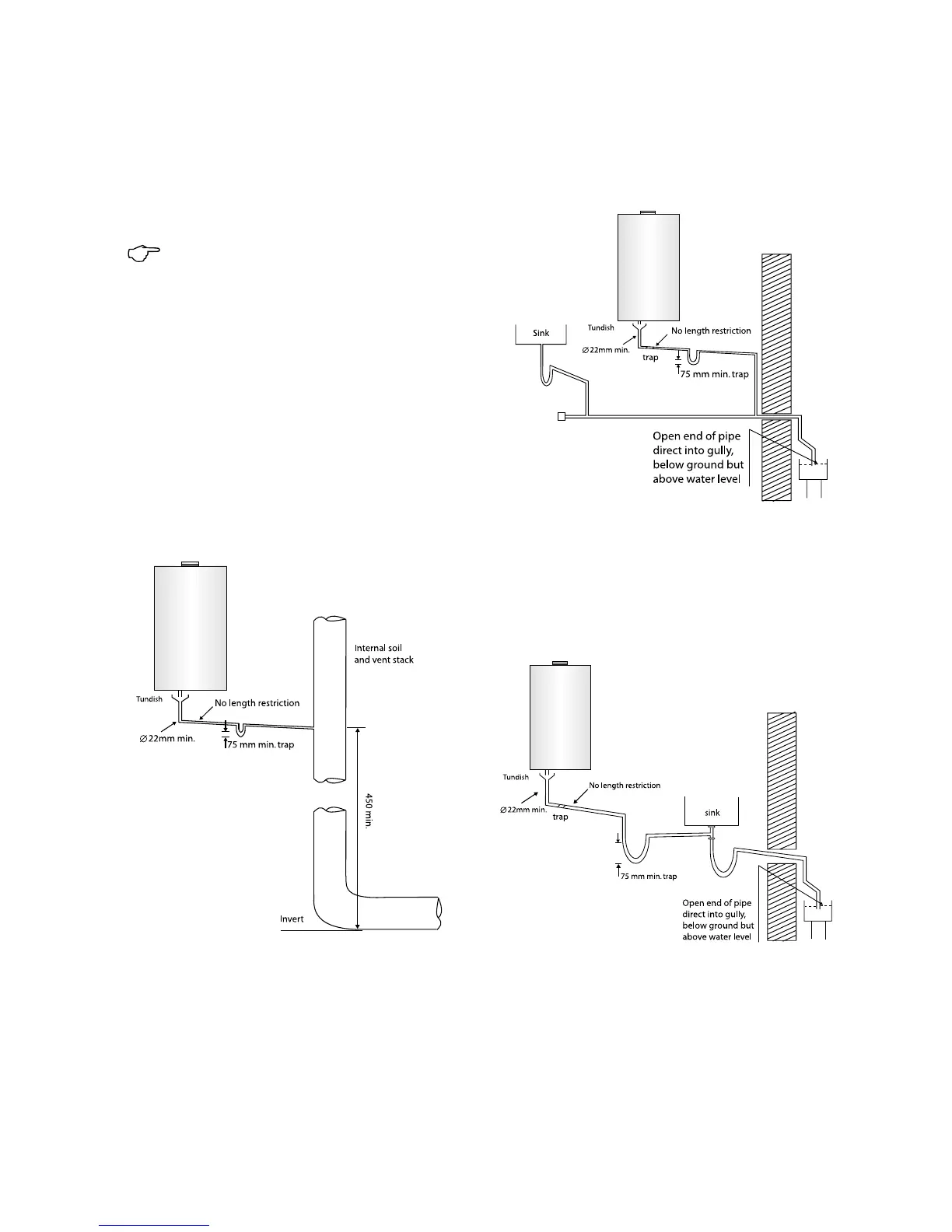

Some examples of the type of condensate
terminations can be found below.
1. Internal termination of condensate drainage
pipe to internal stack.
Condensate Discharge
Push t the exible condensate pipe into the
outlet spigot on the appliance. Cut to length
and locate outlet into a tundish
2. External termination of condensate drainage
pipe via internal discharge branch (e.g. sink
waste) and condensate siphon.
3. External termination of condensate
drainage pipe via internal discharge branch
(e.g. sink waste-proprietary tting).
