RK3288 Hardware Design Guide

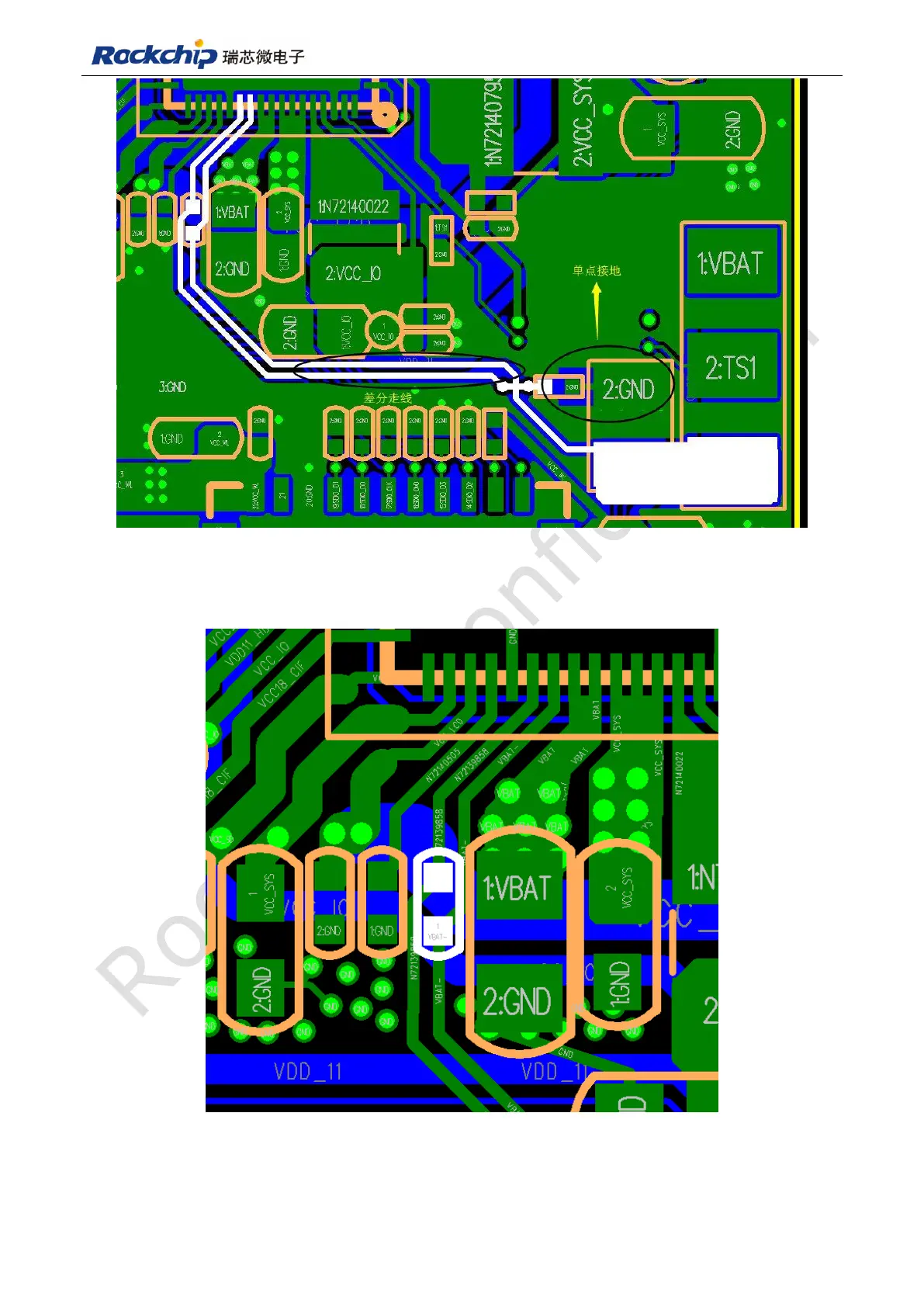

Fig 5-24
To improve the sampling accuracy of battery, capacitor C2363 in feedback circuit should
be placed close to the pin of RK818, as shown in Fig 5-25.
Fig 5-25
