STEP 3 - Option 2: Attaching the horizontal brackets to a
TV with irregular or obstructed back
CAUTION: To avoid personal injury or property damage, do not use power tools.

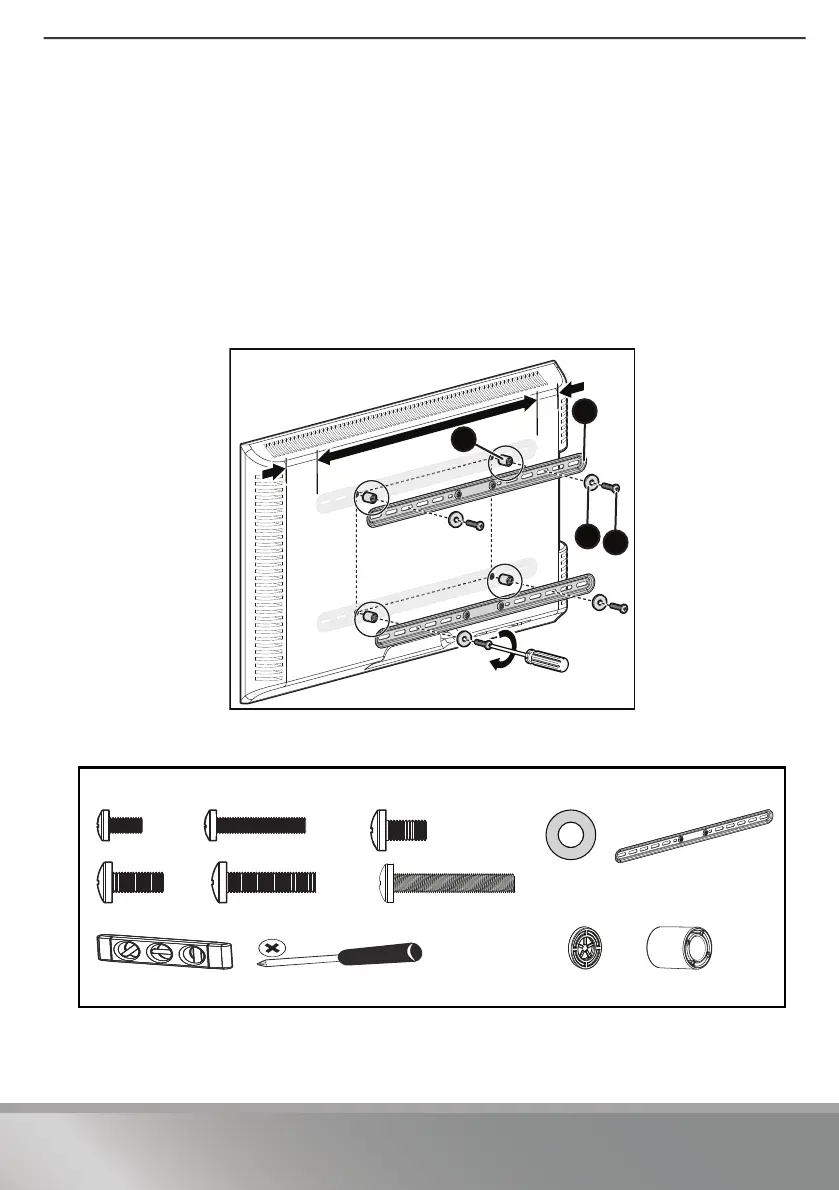

1 Place the spacers you selected in STEP 2 (03) over the screw holes on the back of
your TV.
2 Align the horizontal brackets (04) over the spacers, then place the washers (
02)
over the holes in the brackets. Insert the screws you selected in STEP 2 (
01)
through the washers, brackets, and spacers. Make sure that the brackets are
level.
3 Tighten the screws until they are snug against the brackets. Do not over tighten.
You’ll need
4
2
1
3
02
Washer
(4)
01 Screws (4)
Phillips screwdriver
OR
Level
04 Horizontal
brackets (2)
OR
OR OR
OR
03 Spacers (4)
