17
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTLF23
STEP 6 - Option 2: Installing on a solid concrete or concrete
block wall
CAUTION: To prevent property damage or personal injury, never drill into the mortar between
the blocks. Mount the wall plate directly onto the concrete surface.

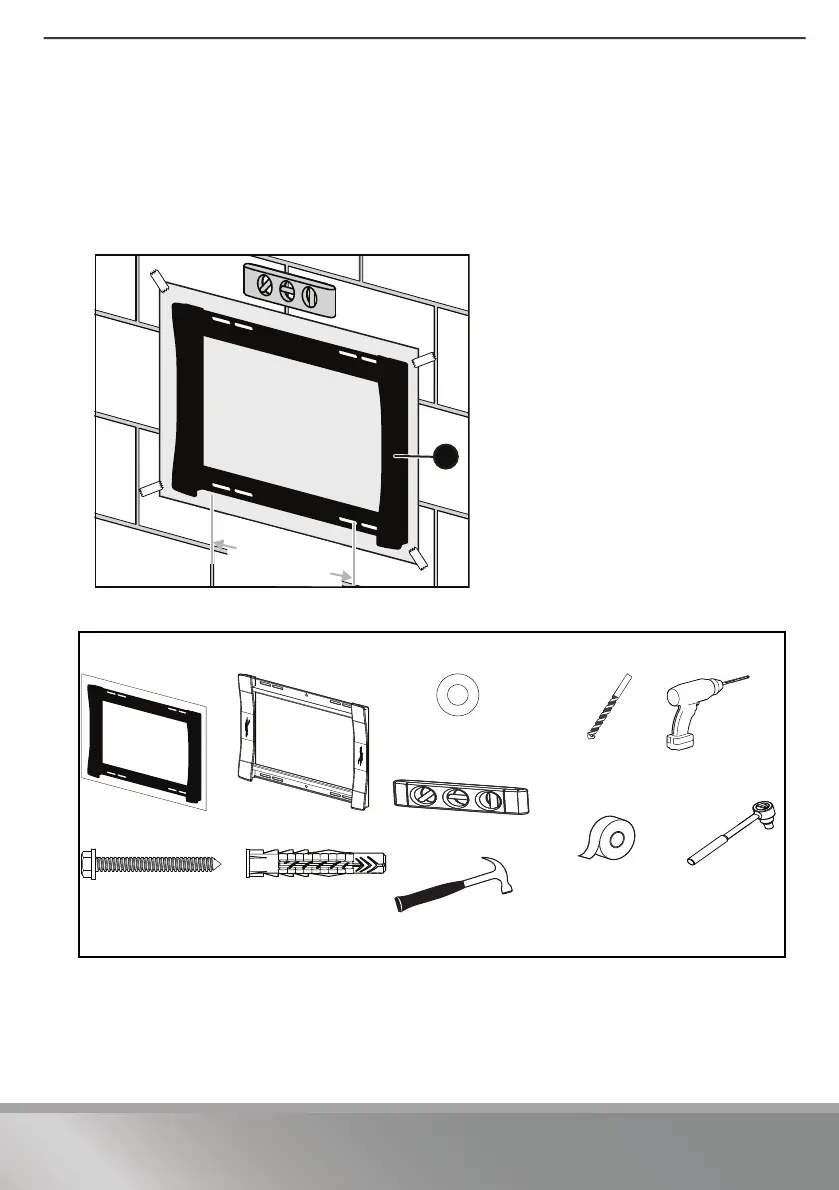

1 Align the center of the wall plate template (07) at the height you determined in
the previous step and make sure that it is level. Tape the template to the wall.
You’ll need
Note: Mount the wall plate (08)
directly onto the concrete surface (no
wall covering).
Minimum solid concrete thickness:
8in. (20.3 cm).
Minimum concrete block size:
8 × 8 × 16 in. (20.3 × 20.3 × 40.6 cm).
Minimum horizontal space between
fasteners: 16 in. (40.6 cm).
For concrete applications, the arm
assembly (11) must remain centered
in wall plate (08). Keep this in mind
when selecting the wall plate
location.
C1 Lag screw (4)
Drill
1/2" socket
wrench
07 Template (1)
Tape
08 Wall plate (1)
Level
Hammer
3/8" (10 mm)
masonry drill bit
C3 Concrete
anchors (04)
C2 Washer
(04)
To Next Page
