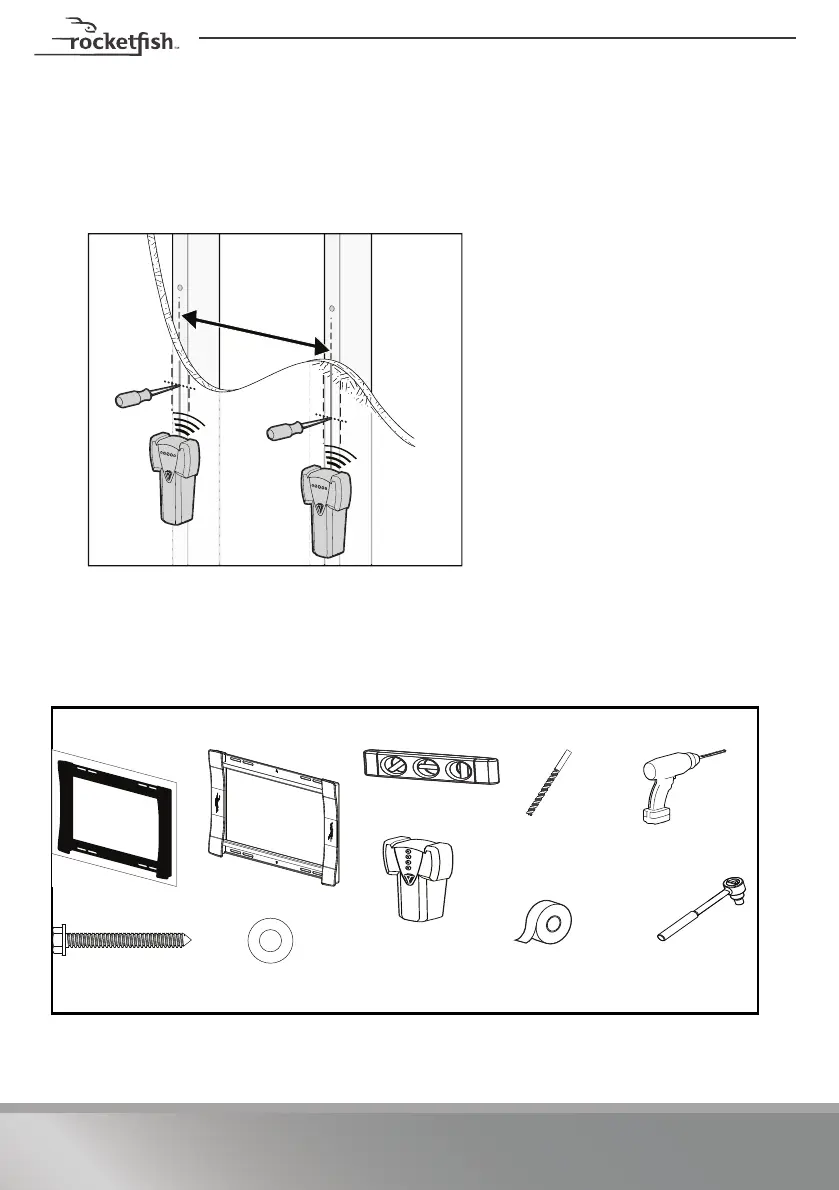

STEP 6 - Option 1: Installing on a wood stud wall
Note: Drywall covering the wall must not exceed 5/8" (16 mm).
1 Locate the stud, then verify the center of the stud with an edge-to-edge stud
finder.
2 Make sure that the distance between the studs is 16 in. (40.6 cm).
You’ll need
16"
(40.6 cm)
Note:
Drywall covering the wall must
not exceed 5/8 in. (1.6 cm).
Minimum wood stud size:
nominal 2 × 4 in. (5.1 × 10.2 cm)
actual 1 1/2 × 3 1/2 in.
(3.8 × 8.9 cm).
Edge-to edge
stud finder
09 Lag screw (4)
Drill
7/32" wood
drill bit
1/2" socket
wrench
07 Template (1)
Tape
08 Wall plate (1)
Level
10 Washer (4)
To Next Page
