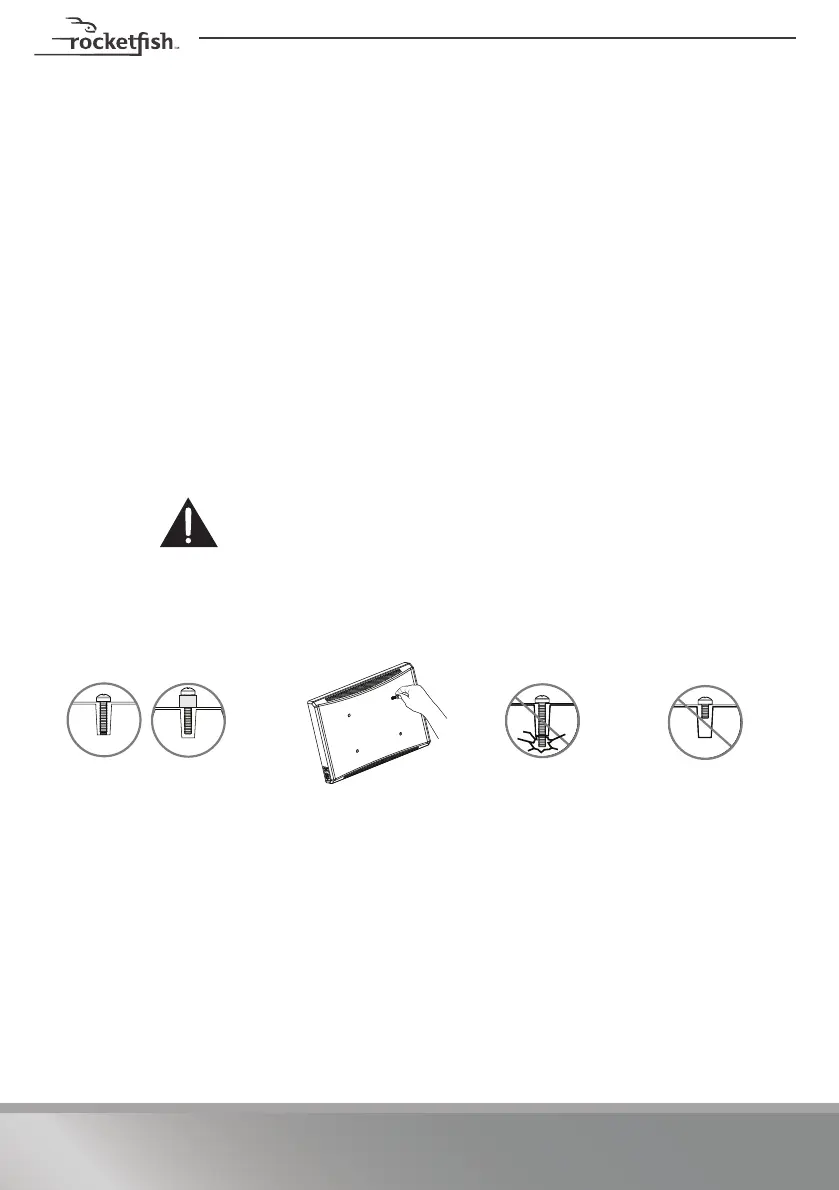

STEP 2 - Select screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). A limited number
of TVs come with mounting hardware included. (If screws came with your TV,
they are almost always in the holes on the back of your TV.) If you don't know the
correct length of the mounting screws your TV requires, test various sizes by
hand threading the screws.
Select the screws that fit:
Use the M4 washers (02) for M4 screws and M6/M8 washers (02) for all M6 or M8
screws. For an irregular or obstructed TV back, also use the 2.5 mm, 5 mm, or
22 mm spacers (
03).
CAUTION: To avoid potential personal injuries and property damage,
make sure that the screws have adequate threads to secure the brackets
to your TV. If you encounter resistance, stop immediately and contact
customer service. Use the shortest screw and spacer combination to
accommodate your TV. Using hardware that is too long may damage your TV.
However, using a screw that is too short may cause your TV to fall from the mount.
2 Remove the screws.
M4 × 12 mm screws (01)M8×16mm screws (01)
M4 × 35 mm screws (01)M8×25mm screws (01)
M6 × 12 mm screws (01)M8×35mm screws (01)
M6 × 20 mm screws (01)M8×50mm screws (
01)
M6 × 35 mm screws (01)
Screw is
too long
Screw fits
correctly
Screw is
too short
