9
RF-HTMF19
Installation instructions
STEP 1 - Determine whether your TV has a flat, irregular,
or obstructed back
1 Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the
documentation that came with your TV for instructions.
3 Temporarily lay the horizontal brackets (
04) on the back of your TV.
4 Align the screw holes in the brackets with the mounting screw holes on your TV.

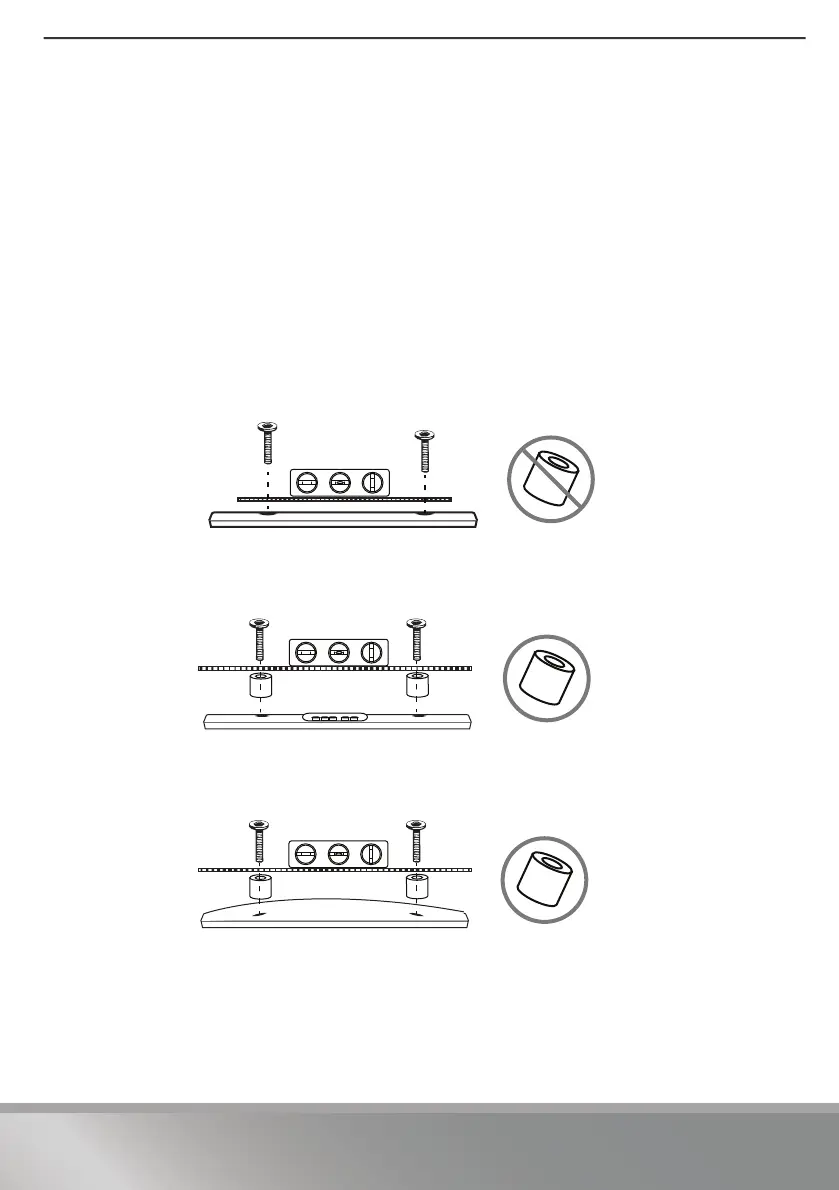

5 Identify which type of back your TV has:
• Flat back: The brackets lay flush against the back of your TV and do not block
any jacks. You do not need spacers when assembling the wall mount.
• Obstructed back: The brackets block any of the jacks on the back of your TV.
You need 2.5 mm, 5 mm, or 22 mm spacers (03) when assembling the wall
mount.
• Irregularly-shaped back: There is a gap between the brackets and some part
of the back of your TV. You need 2.5 mm, 5 mm, or 22 mm spacers (03) when
assembling the wall mount.
6 Remove the brackets.
