12

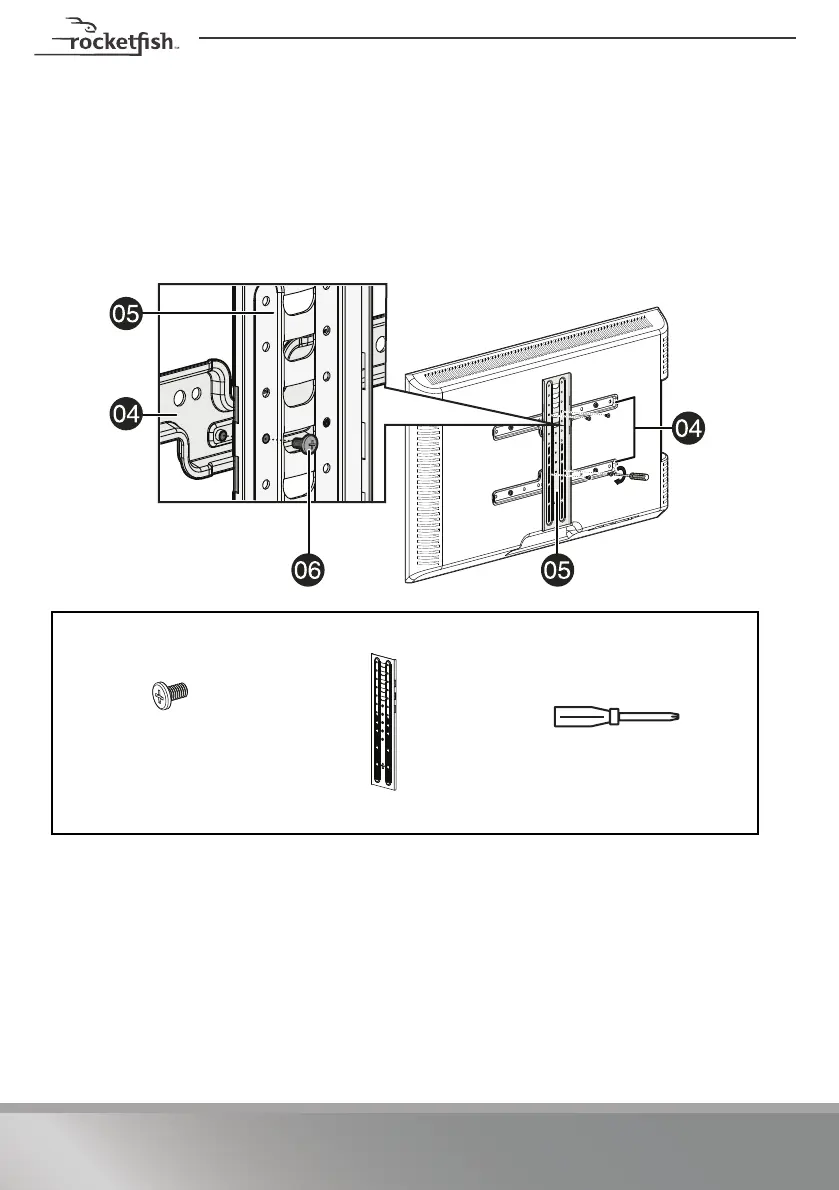

STEP 4 - Attach the vertical bracket to your TV
CAUTION: To avoid personal injury or property damage, do not use power tools.
1 Lay the vertical bracket (05) on top of the horizontal brackets (04). Make sure
that the bracket is centered.
2 Secure the vertical bracket (
05) to the horizontal brackets with the TV bracket
screws (
06). Tighten the screws until they are snug against the vertical brackets.
Do not over tighten.
You’ll need
06 TV bracket
screws (4)
Phillips screwdriver
05 Vertical TV bracket (1)
