17
RF-HTMF19
STEP 6 - Option 2: Install on a solid concrete or concrete
block wall
CAUTION: To prevent property damage or personal injury, never drill into the mortar between
the blocks. Mount the wall plate directly onto the concrete surface.

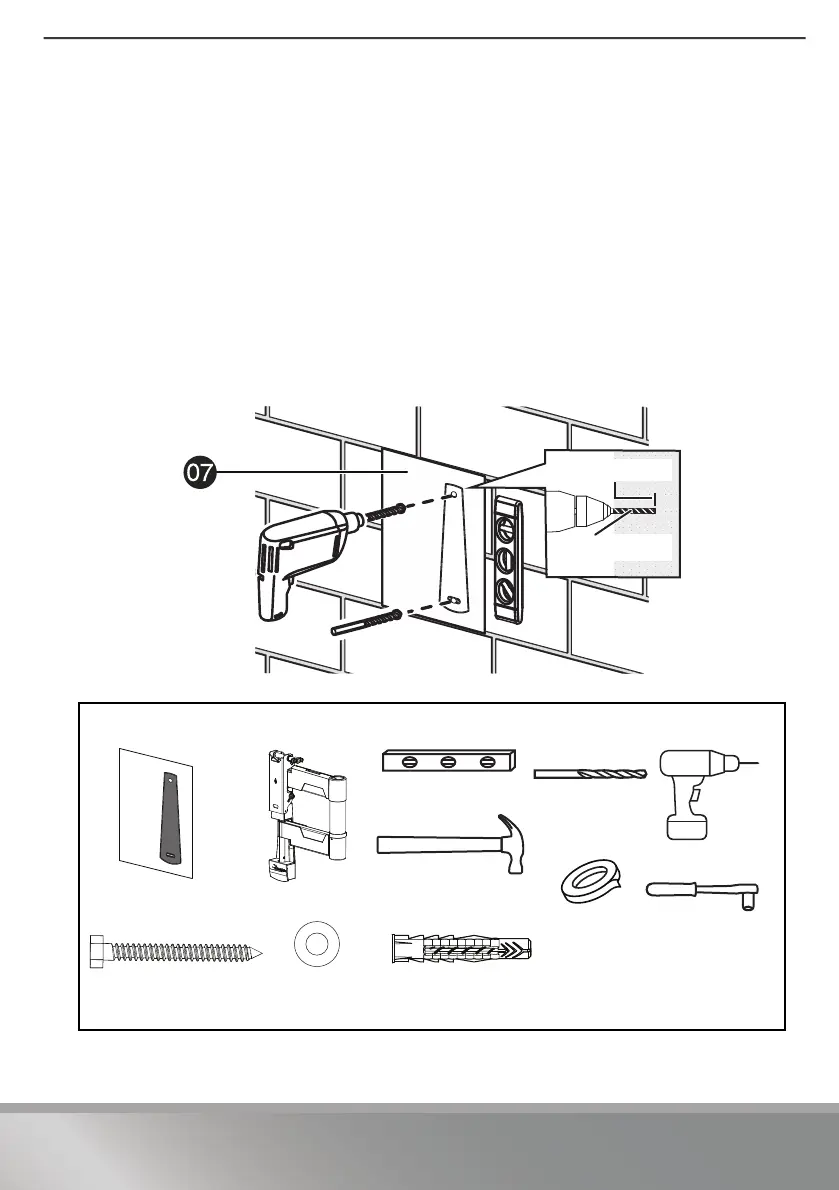

1 Align the center of the mounting template (07) at the height you determined in
the previous step and make sure that it is level. Tape the mounting template to
the wall, then drill pilot holes to a depth of 3 in. (76 mm) using a 3/8 in. (10 mm)
diameter masonry drill bit, then remove the mounting template.
Note: Mount the TV arm assembly (08) directly onto the concrete surface (no wall
covering).
Minimum solid concrete thickness: 8 in. (20.3 cm).
Minimum concrete block size: 8 × 8 × 16 in. (20.3 × 20.3 × 40.6 cm).
You’ll need
3/8 in (10 mm)
3 in. (76 mm)
Hammer
C1 Concrete
anchors (2)
09 Lag screw (2)
Drill
3/8" masonry
drill bit
1/2" socket
wrench
07 Mounting
template
Tape
08 TV arm assembly
Level
10 Washer (2)
Note: The Concrete Installation Kit
(CMK1) is not included. Contact
Customer Service to request it.
To Next Page
