13
RF-HTMF19
STEP 5 - Determine the wall-mount location
Note: Your TV should be high enough so your eyes are level with the middle of the
screen from a seated position (normally, 40 to 60 inches from the ground).
For more detailed information on determining where to drill your holes, visit our
online height-finder at: http://bestbuy.selectionassistant.com/heightfinder/#!step1

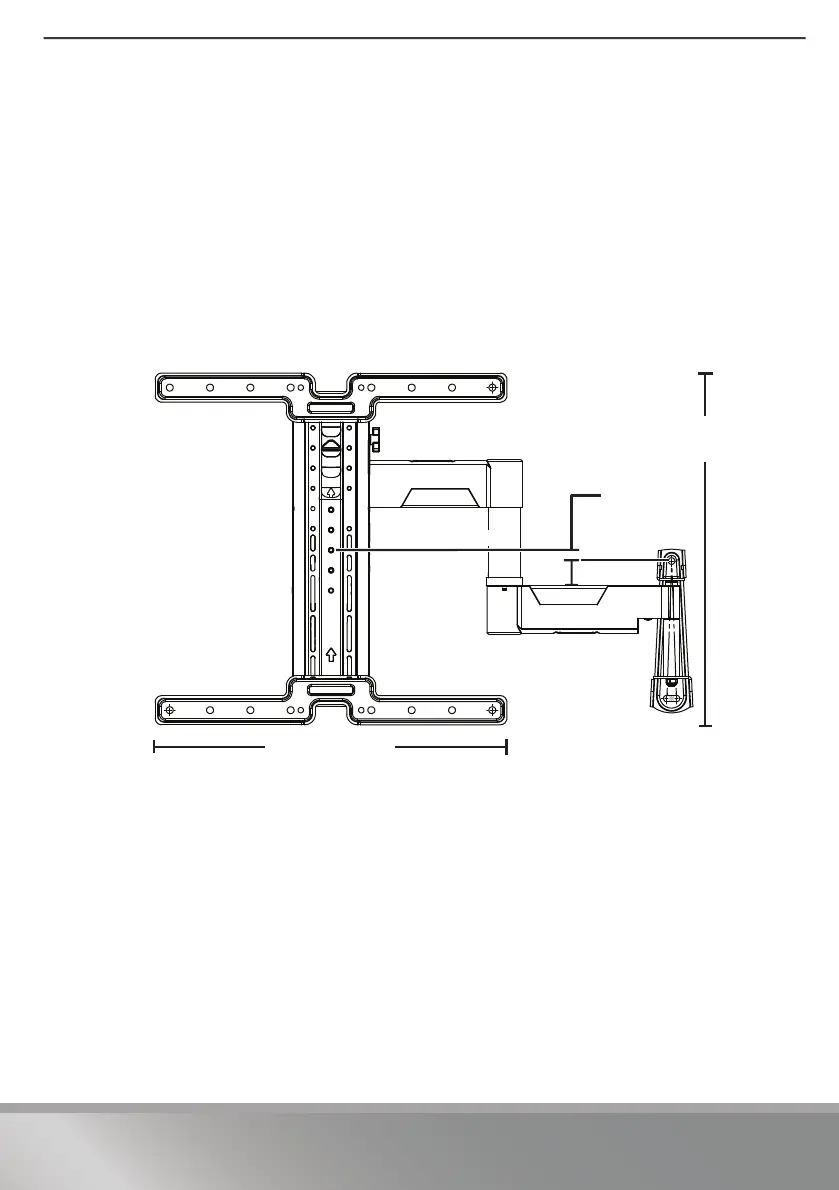

The center of the TV arm assembly (08) is NOT the same as the center of the Vertical
TV bracket (05). The center of the Vertical TV bracket is HIGHER than the center of the
TV arm assembly. When the center slot of the Vertical TV bracket is used, the top hole
in the TV arm assembly will be 0.6 in below the center of the Vertical TV bracket and
the center point of your TV.
VESA mounting patterns are not centered on all TVs. You will need to account for the
location of the VESA when determining the height of the TV arm assembly.
17.2 in. (43.6 cm)
17.2 in. (43.6 cm)
.6 in. (1.6 cm)
Vertical centerline
