22

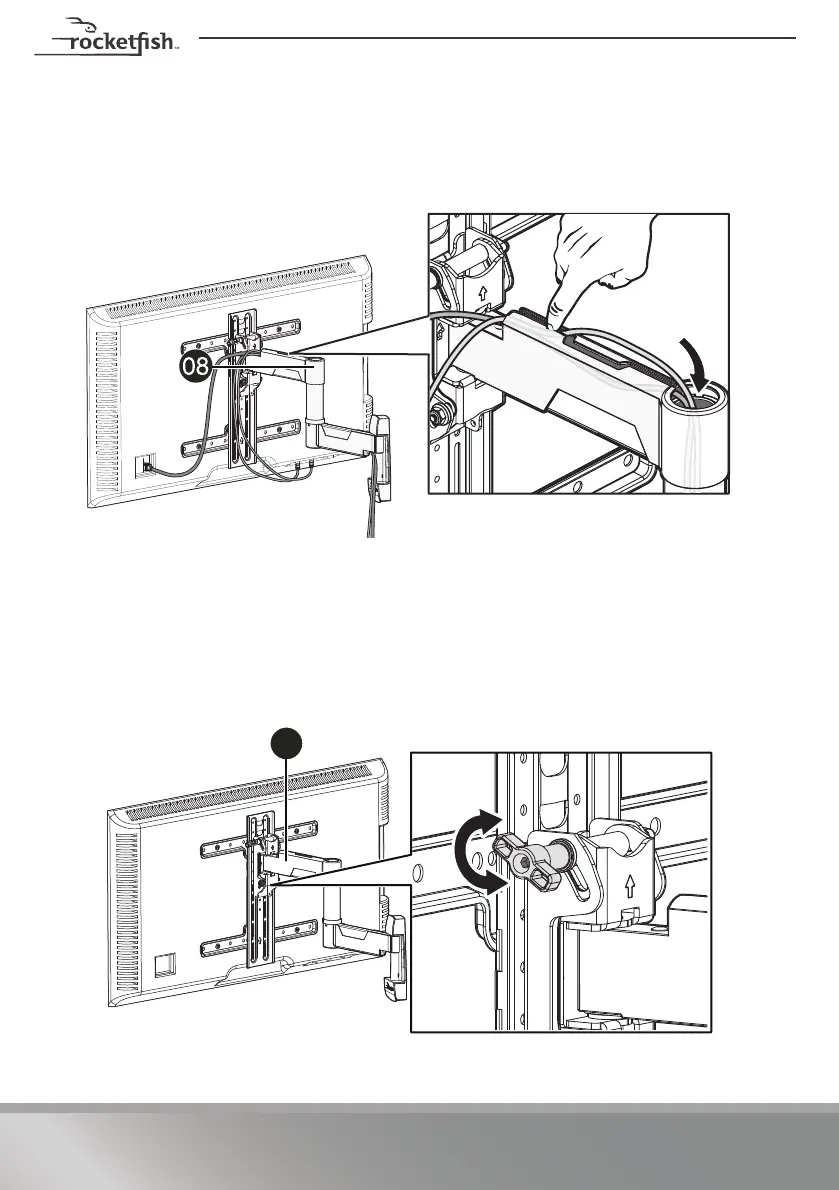

STEP 8 - Manage cables
• Fully extend the TV arm assembly (08) to provide enough slack, then route
cables along the arms, inserting them into the channels on the arms to provide
a clean look to your installation.
STEP 9 - Adjust the tilt
Note: After your TV is in place, tighten the tilt tension knob to prevent unwanted
movement. Additional tension can be applied by using a 3/16 in. hex key (not
provided).
• Loosen the tension knob with your fingers, adjust the tilt angle, then tighten
the knob to keep your TV in place.
