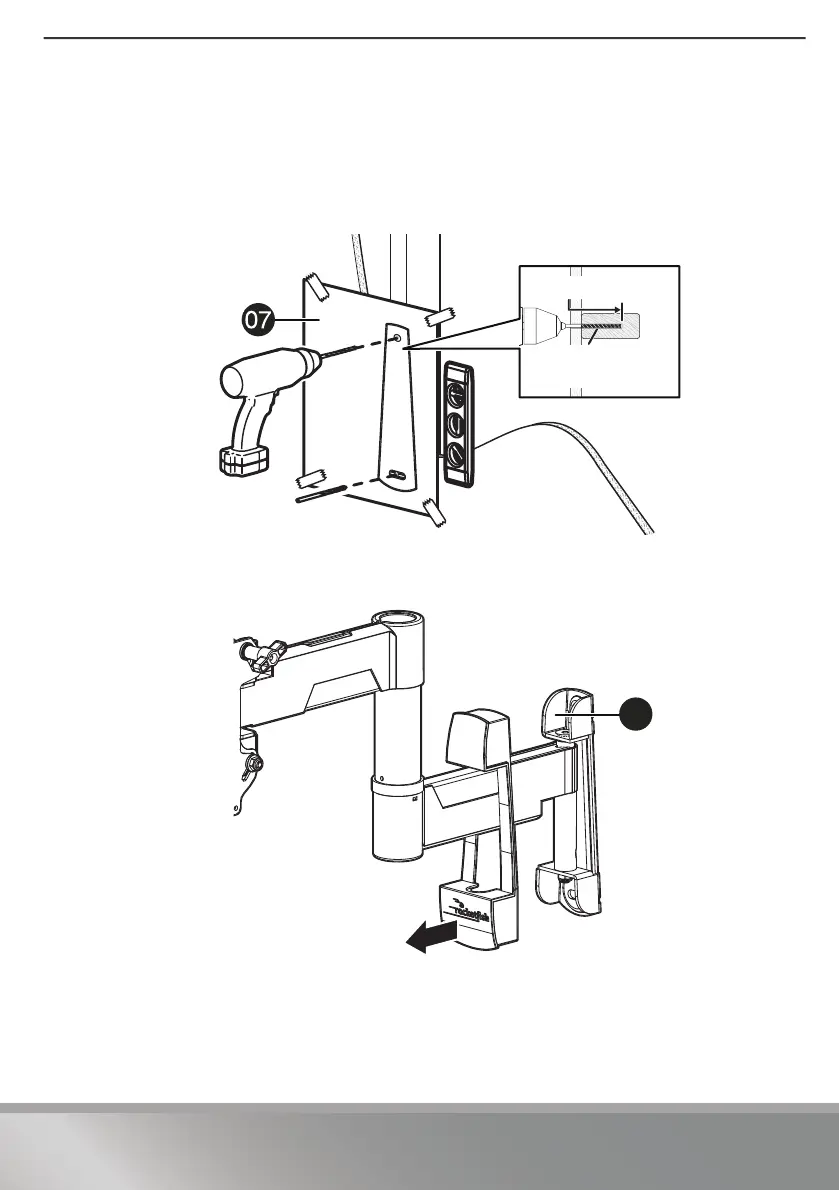

2 Align the center of the mounting template (07) at the height you determined in
the previous step and make sure that it is level. Tape the mounting template to
the wall.
3 Drill two pilot holes through the mounting template to a depth of 2 3/4 in.
(70 mm) using a 7/32 in. (5.5 mm) diameter drill bit, then remove the mounting
template.
4 Move the cover out away from the arm assembly wall plate.
7/32 in. (5.5 mm)
2 3/4 in. (70 mm)
