4

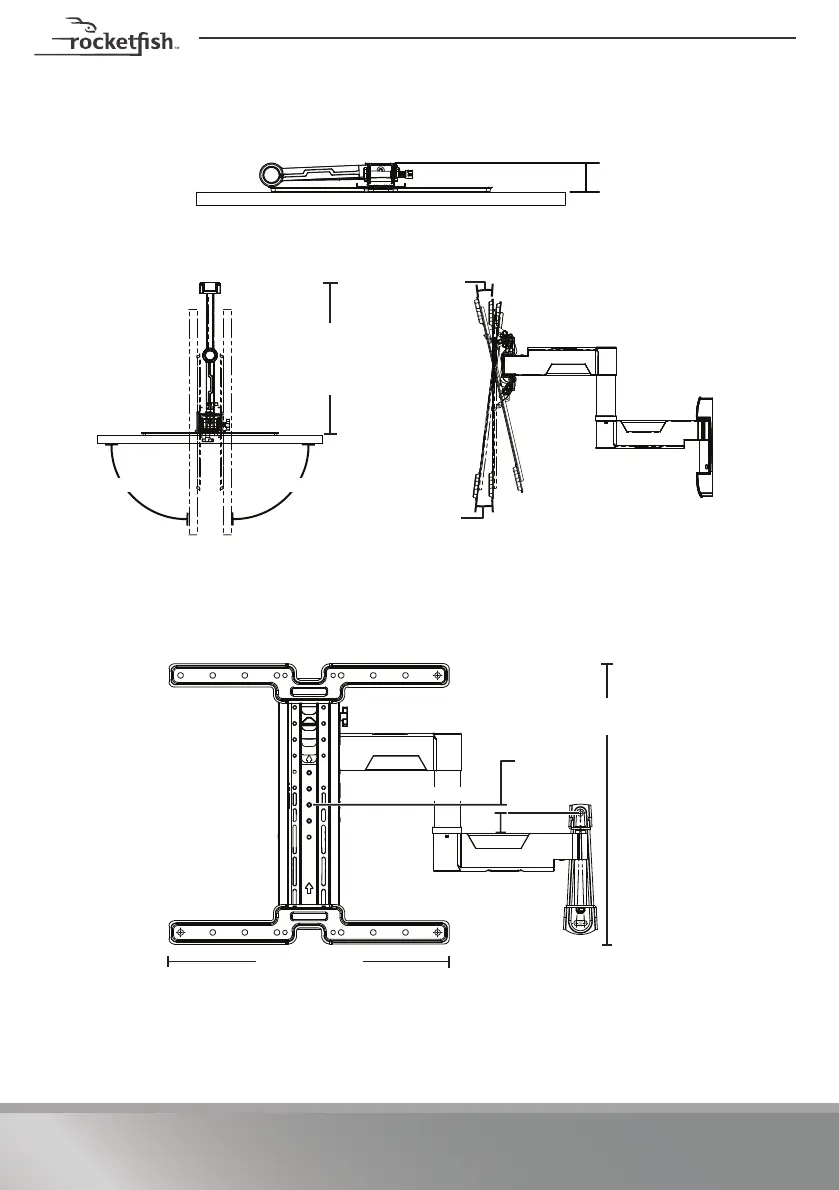

Dimensions
19.2in.
(48.8 cm)
90°
90°
15°
Down
5° Up
2.2 in. (5.7 cm)
Top View
Side/Tilt View
Top View Extended
17.2 in. (43.6 cm)
17.2 in. (43.6 cm)
.6 in. (1.6 cm)
Vertical centerline
Dimensions for mounting
(also see Step 5)
