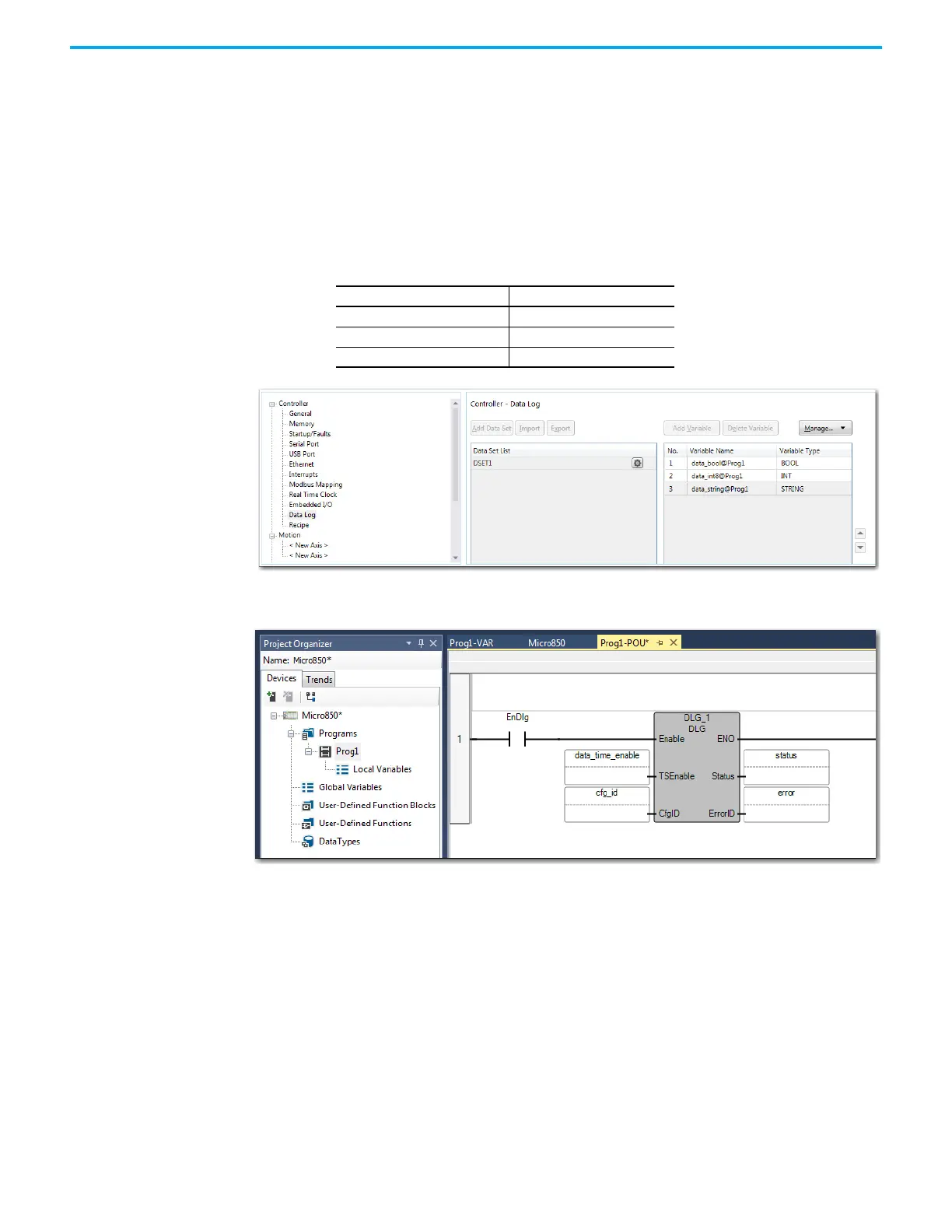

Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 249
Chapter 12 Using microSD Cards
Configure Data Log
1. In the Connected Components Workbench software, go to the Properties pane to
configure your data log.
2. Select Data Log. Click Add Data Set to add a dataset. Note that each dataset will be
stored in the same file. You can add up to 10 datasets per configuration.
3. Click Add Variable to add variables to the dataset. You can add up to 128 variables to
each dataset.
For this quickstart sample project, add the following variables that you have previously
created to Dataset 1.
Create Data Log Ladder Program
1. Launch the Connected Components Workbench software. Create a user program for
your Micro800 controller.
2. Right-click Programs. Select Add New LD: Ladder Diagram. Name the Program (for
example, Prog1).
Local Variables
Variable Name Data Type
data_bool BOOL
data_int8 INT
data_string STRING
