Chapter 12 Using microSD Cards

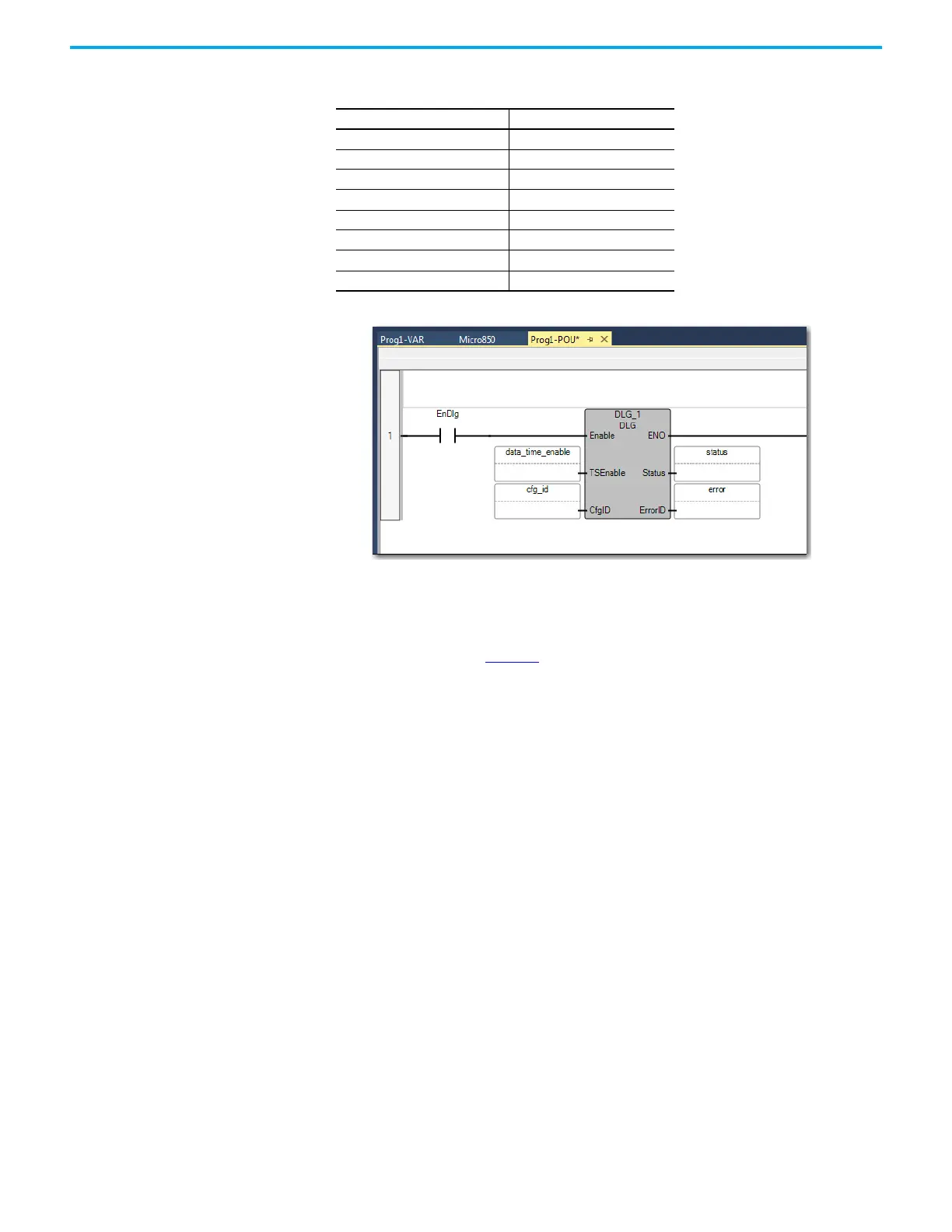

7. Assign the variables to the DLG input and output parameters as follows:
Note: For CfgID input parameter, you can choose a predefined variable by choosing from the
Defined Words in the Connected Components Workbench software. To do so, click the CfgID
input box. From the Variable Selector window that appears, click the Defined Words tab and
choose from the list of defined words. For example, DSET1 that corresponds to DSET1 in your
recipe configuration. See Figure 26
.
Local Variables
Variable Name Data Type
EnDlg BOOL
cfg_id USINT
data_time_enable BOOL
error UDINT
status USINT
data_bool BOOL
data_int8 INT
data_string STRING
To Next Page
