Rockwell Automation Publication 842E-UM002A-EN-P - November 2013 31
Configuring the 842E-CM Encoder Using the Logix Designer Application Chapter 5
Adding and Configuring
the Add-on Profile in
RSlogix 5000
After installing and setting up the encoder, use the encoder add-on
profile to add the encoder to the project and configure it.
Adding the Encoder to Your Logix Designer Project
1. Apply power to the controller and open the Logix Designer
application.

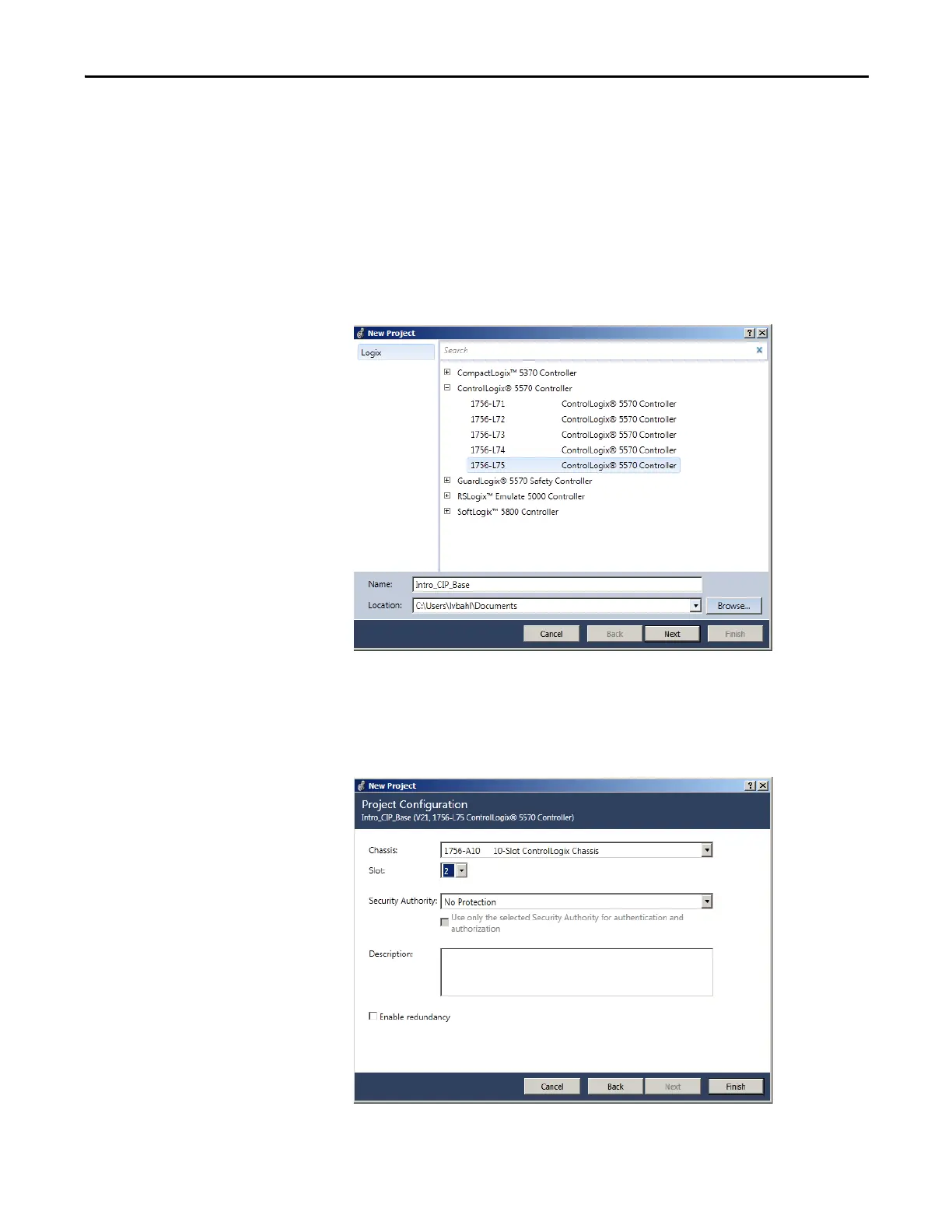

2. From the File menu, choose New. The New Controller dialog opens.
3. Select a controller and name it.
4. Click Next.
5. Select the slot your controller is in and configure it.
6. Click Finish.
