8 1769-L32E, 1769-L35E CompactLogix Controller
Publication
1769-IN020D-EN-P - October 2008

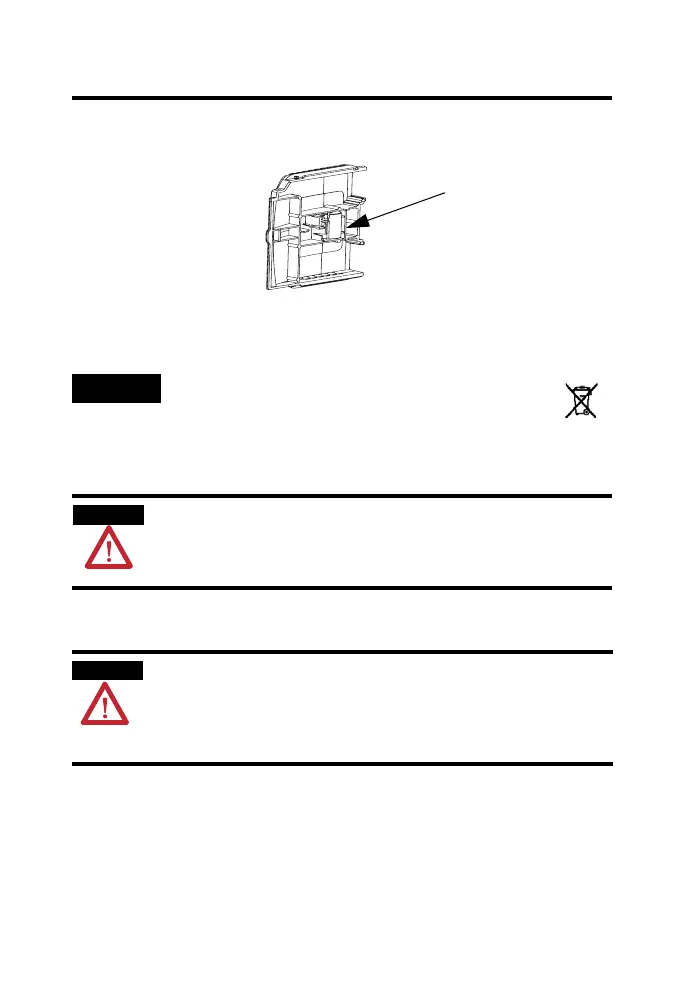

4. Slide the battery door back until it clicks into position.
Install a 1784-CF64 or 1784-CF128 CompactFlash Card (optional)
The optional industrial CompactFlash card provides nonvolatile memory for
a CompactLogix controller. The card is not required for controller operation.
TIP
At the end of its life, the used battery should be collected
separately from any unsorted municipal waste and recycled.
ATTENTION
Do not remove the CompactFlash card while the controller is reading from or
writing to the card, as indicated by a flashing green CF status indicator. This
could corrupt the data on the card or in the controller, as well as corrupt the
latest firmware in the controller.
WARNING
When you insert or remove the CompactFlash card while power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
Battery
