1769-L32E, 1769-L35E CompactLogix Controller 9
Publication
1769-IN020D-EN-P - October 2008

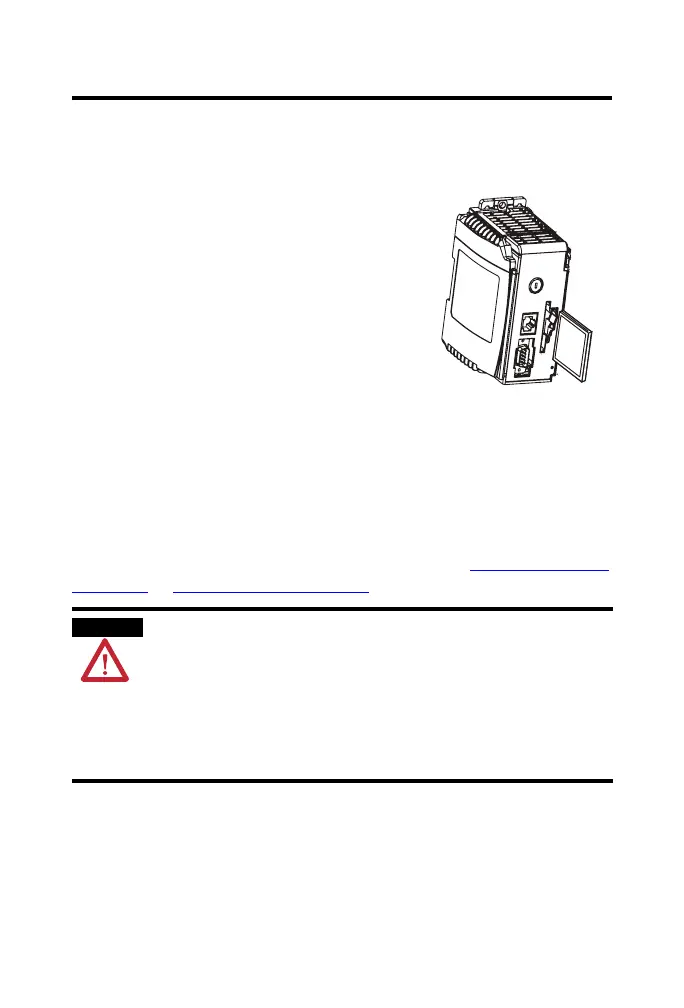

Follow these steps to install a CompactFlash card.
1. Push the locking tab to the right and
insert the industrial CompactFlash card
into the socket on the front of the
controller.
The label of the CompactFlash card
faces toward the left. Match the
orientation arrow on the card with the
arrow on the front of the controller.
2. To remove the CompactFlash card, push
the locking tab away from the
CompactFlash card and pull the
CompactFlash card from the socket.
Assemble the System
The controller can be attached to an adjacent I/O module or power supply
before or after mounting. For mounting instructions, see Ground the Wiring
on page 12 or Mount the Panel on page 13.
WARNING
The CompactLogix controller is not designed for removal and insertion under
power.
If you insert or remove the module while backplane power is on, an electrical
arc can occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
44732
