Rockwell Automation Allen-Bradley Guardmaster 442G-MABE1

Rockwell Automation Publication 442G-UM002B-EN-P - August 2021 13
Chapter 1 Product Overview
Mounting Plates

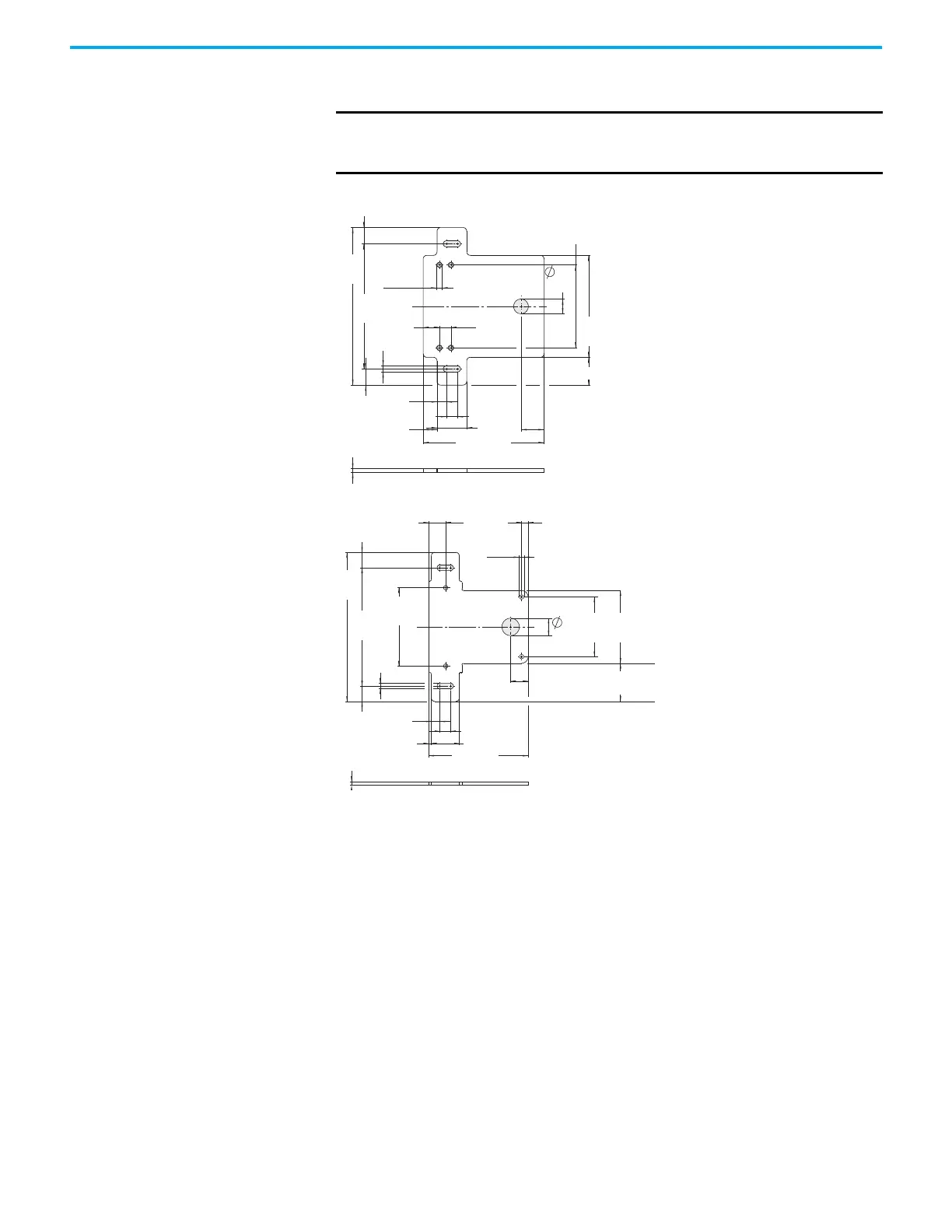

Figure 8 - Handle Assembly Mounting Plate [mm (in.)]
Figure 9 - Escape Release Mounting Plate [mm (in.)]
Mounting Hardware Reference
Handle Assembly Mounting Plate is supplied with the following hardware:
• 4X DIN 7984-M6X12 ZN (screw)
• 4X DIN 433-6 NI (washer)
• 4X DIN 6797-JZ-D6,4 (lock washer)
Escape Release Mounting Plate is supplied with the following hardware:
•4X DIN 7984-M6X8 (screw)
• 4X DIN 433-6 NI (washer)
• 4X DIN 6797-JZ-D6,4 (lock washer)
IMPORTANT
The use of the handle assembly mounting plate is required with the
Ethernet version of the access box. The use of the escape release
mounting plate is optional.
16
(0.63)
10
(0.39)
32 (1.26)
15
(0.59)
6.5 (0.25)
12 (0.47)
17.5 (0.69)
17.5
89.4
(3.54)
135
(5.31)
130.5 (5.14)
12.5
(0.49)
4 (0.16)
170
(6.69)
25
(0.98)
30 (1.18)
110
(4.33)
17.5
M6 (4x)
10
(0.39)
32 (1.26)3
(0.12)
6.5
(0.25)
12 (0.47)
17.5
(0.69)
17.5
135
(5.31)
113.5 (4.47)
4 (0.16)
170
(6.69)
20
(0.79)
89.4
(3.54)
M6 (4x)
20
(0.79)
68
(2.68)
43.5
(1.71)
83
(3.27)
7.5
(0.29)
86.5 (3.40)
19.5
(0.77)
