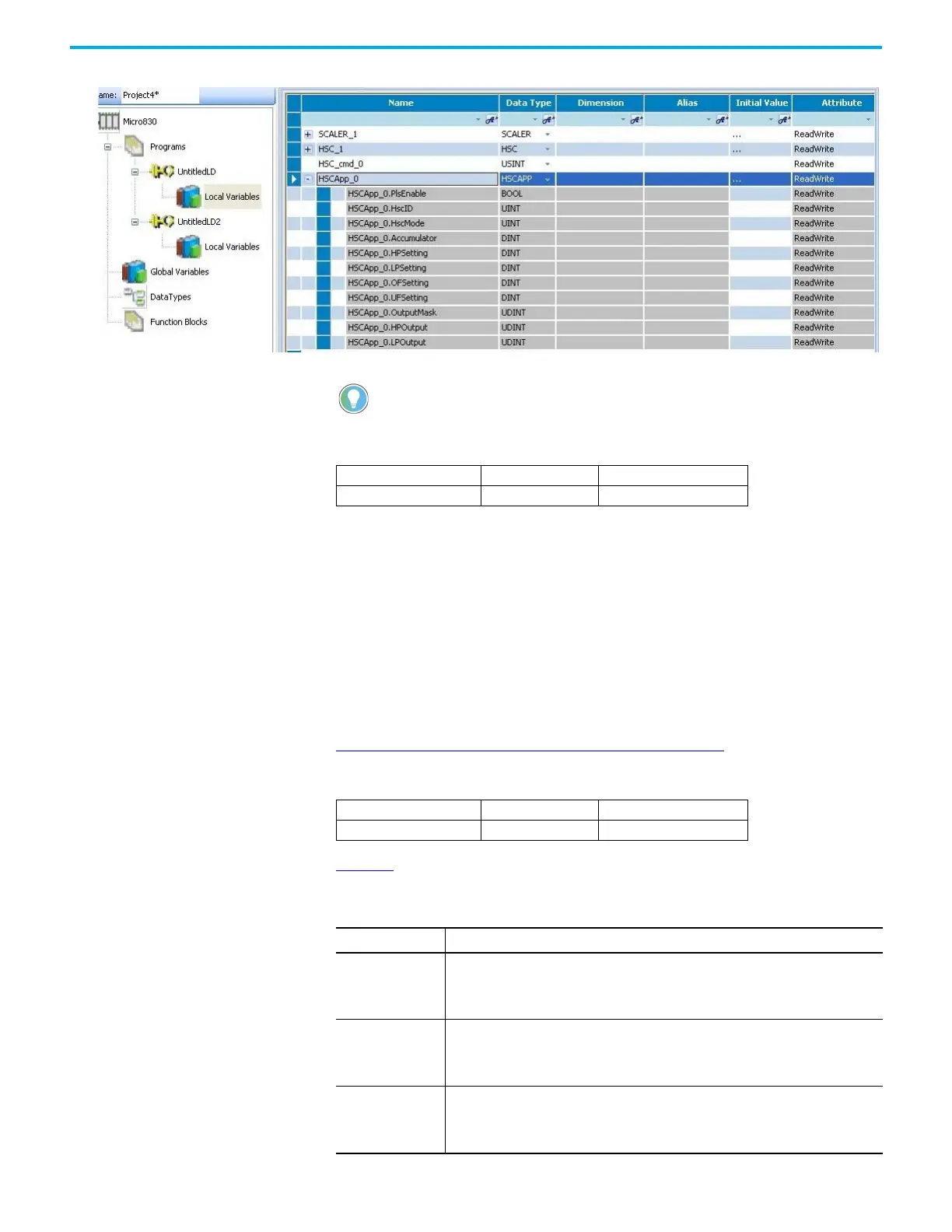

126 Rockwell Automation Publication 2080-UM002L-EN-E - November 2021
Chapter 8 Use the High-Speed Counter and Programmable Limit Switch
This bit enables and disables the HSC Programmable Limit Switch (PLS)
function.
When the PLS function is enabled, the setting in
• HSCAPP.HpSetting
• HSCAPP.LpSetting
• HSCAPP.HPOutput
• HSCAPP.LPOutput
are superseded by corresponding data values from PLS data. See
Programmable Limit Switch (PLS) Function
on page 142 for more information.
Table 22
lists the definition for HSCID.
HSC1, HSC3, and HSC5 support mode 0, 2, 4, 6, and 8 only, and HSC0, HSC2,
and HSC4 support all counting modes.
PLS Enable (HSCAPP.PLSEnable)
Description Data Format User Program Access
PLSEnable bit read/write
HSCID (HSCAPP.HSCID)
Description Data Format User Program Access
HSCID Word (UINT) read/write
Table 22 - HSCID Definition
Bits Description
15…13
HSC Module Type:
0x00: Embedded
0x01: Expansion (not yet implemented)
0x02: Plug-in module
12…8
Module Slot ID:
0x00: Embedded
0x01…0x1F: Expansion (not yet implemented)
0x01…0x05: Plug-in module
7…0
Module internal HSC ID:
0x00-0x0F: Embedded
0x00-0x07: Expansion (not yet implemented)
0x00-0x07: Plug-in module
