116 Rockwell Automation Publication 750-RM100A-EN-P - August 2019
Chapter 11 Application References

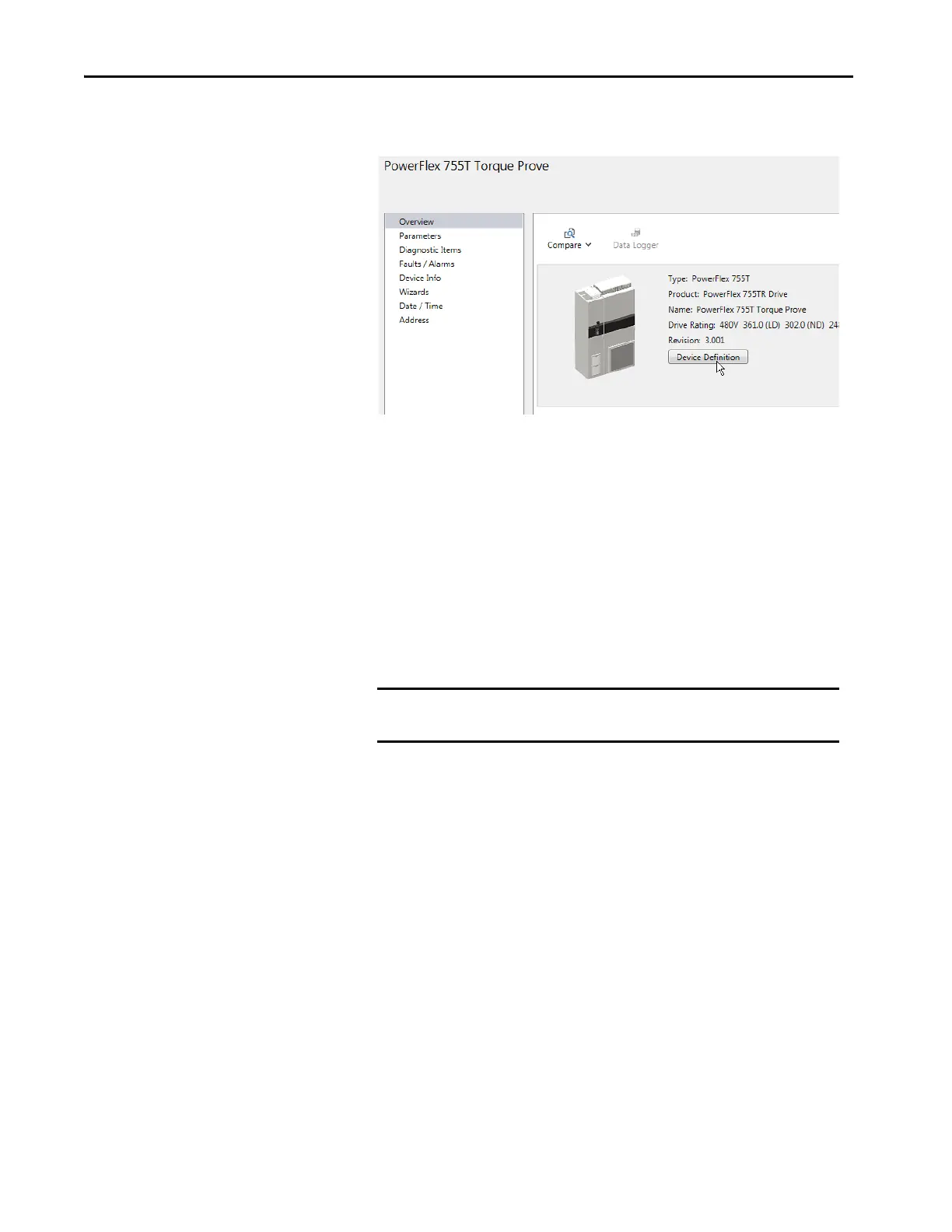

8. Navigate to the parameter display by clicking Parameters in the left-hand
pane.
9. Navigate to port 0, which is the Main Product Port.
10. Find parameter 0:33 [VoltageClass Cfg] and enter the configuration for
Low Volta g e or High Voltage.
11. Find parameter 0:35 [Duty Rating Cfg] and enter the configuration.
Heavy Duty is recommended, but not required.
12. Navigate to parameter 0:46 [Velocity Units] and enter the configuration
for Hz or RPM. This is only needed when you are using RPM.
Cycle Power and Verify the Modular Control Profile Configurations
1. Cycle power or reset the drive (Reset Device) to load the control profiles.
2. Re-establish a connection with Connected Components Workbench
software. Navigate to port 0.
3. To verify the configuration, navigate to ‘Actual’ feedback parameters:
Configure the Line Side Converter
1. Navigate to port 13, which is the port for Line Side Converter Control.
2. Navigate to the following parameters and enter the data for the incoming
power conditions.
3. Navigate to parameter 13:104 [Regen Power Lim] and enter a value
of -200%.
IMPORTANT You must cycle power or reset the drive (Reset Device) to load the
value of these parameters.
0:34 [VoltageClass Act] 0:47 [Vel Units Act] 0:71 [Application Act]
0:36 [Duty Rating Act] 0:66 [Pri MtrCtrl Act]
13:30 [Nom Line Freq] 13:32 [AC Line kVA A] 13:34 [AC Line Imped% A]
