Chapter 6 Predictive Maintenance
Configuration Examples
This section provides instructions for configuring the Predictive Maintenance
Event Level and Event Action.
Heatsink Fan Example
Go to the Predictive Maintenance group in the Protection file of port 0.

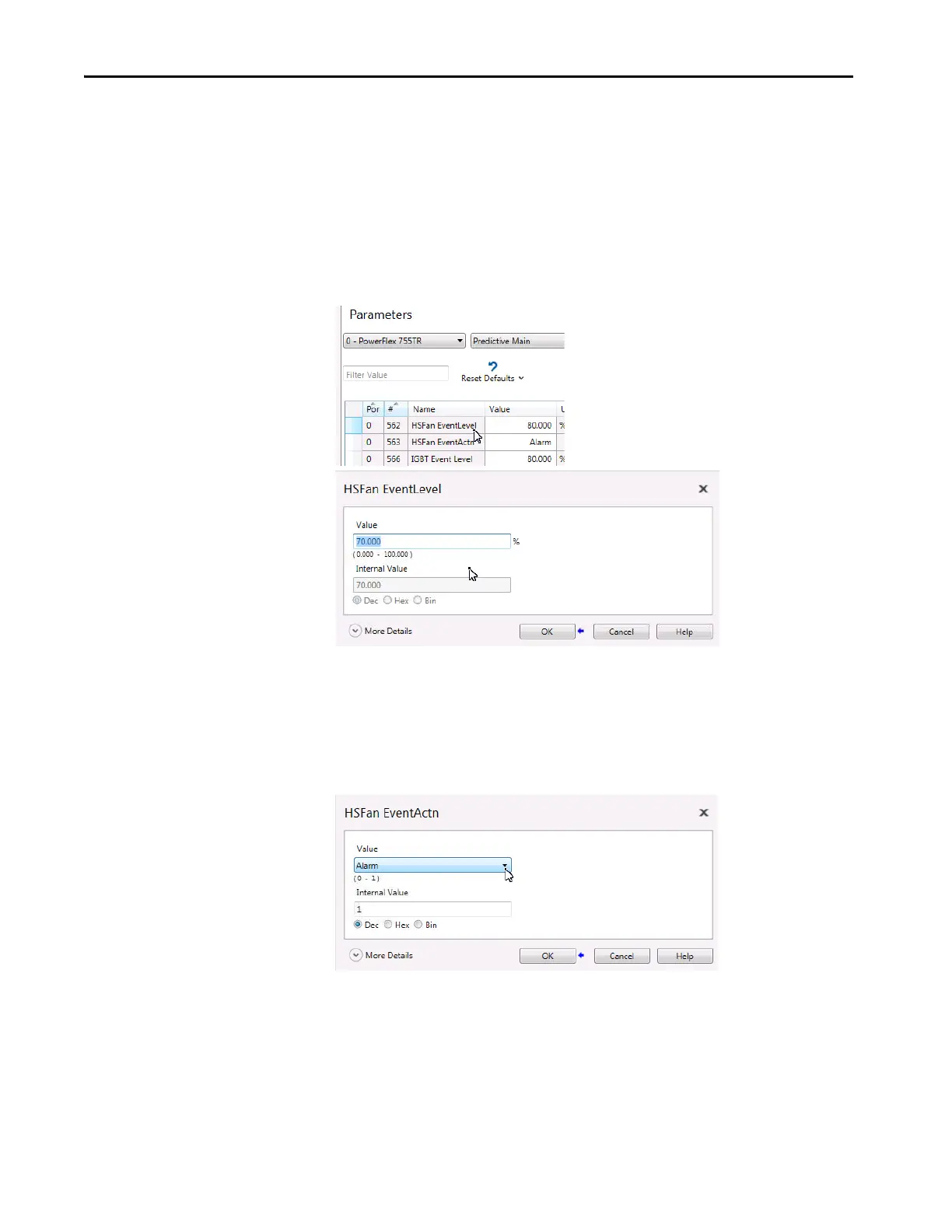

Go to parameter 0:562 [HSFan EventLevel]. Change the value to 70%.
Now all heatsink fan events occur when 70% of the fan life is consumed. The
heatsink fan events affect the fans in the M0 motor side inverter power module,
the L0 line side converter power module, and the F0 LCL filter.
Go to parameter 0:563 [HSFan EventActn]. The value is set to ‘Alarm’ with an
internal value of 1.
When this parameter is set to alarm, a heatsink fan event results in a numbered
alarm with text to indicate which heatsink fan is affected.
