Rockwell Automation Publication 750-RM100A-EN-P - August 2019 59
DeviceLogix Chapter 7

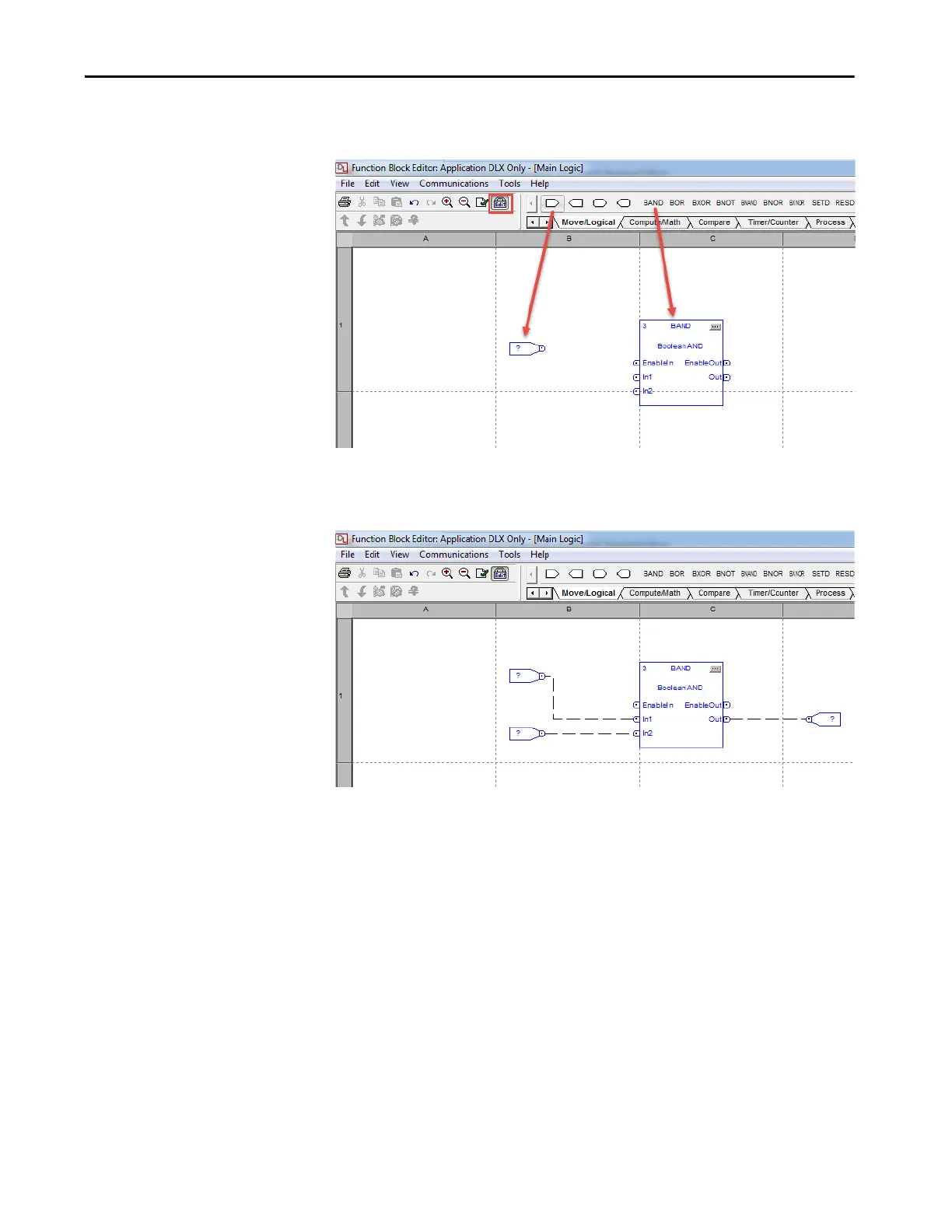

7. Click the blocks or instructions and drag and drop elements on the sheet
to add code.
8. Click one connection pin and move the cursor to another pin and then
release to interconnect items. Notice that the editor makes a connection
line.
Double-click the inputs and outputs to define the tags to use, or double-
click the function blocks to see the parameters.
