Rockwell Automation Publication 750-RM100A-EN-P - August 2019 61
DeviceLogix Chapter 7

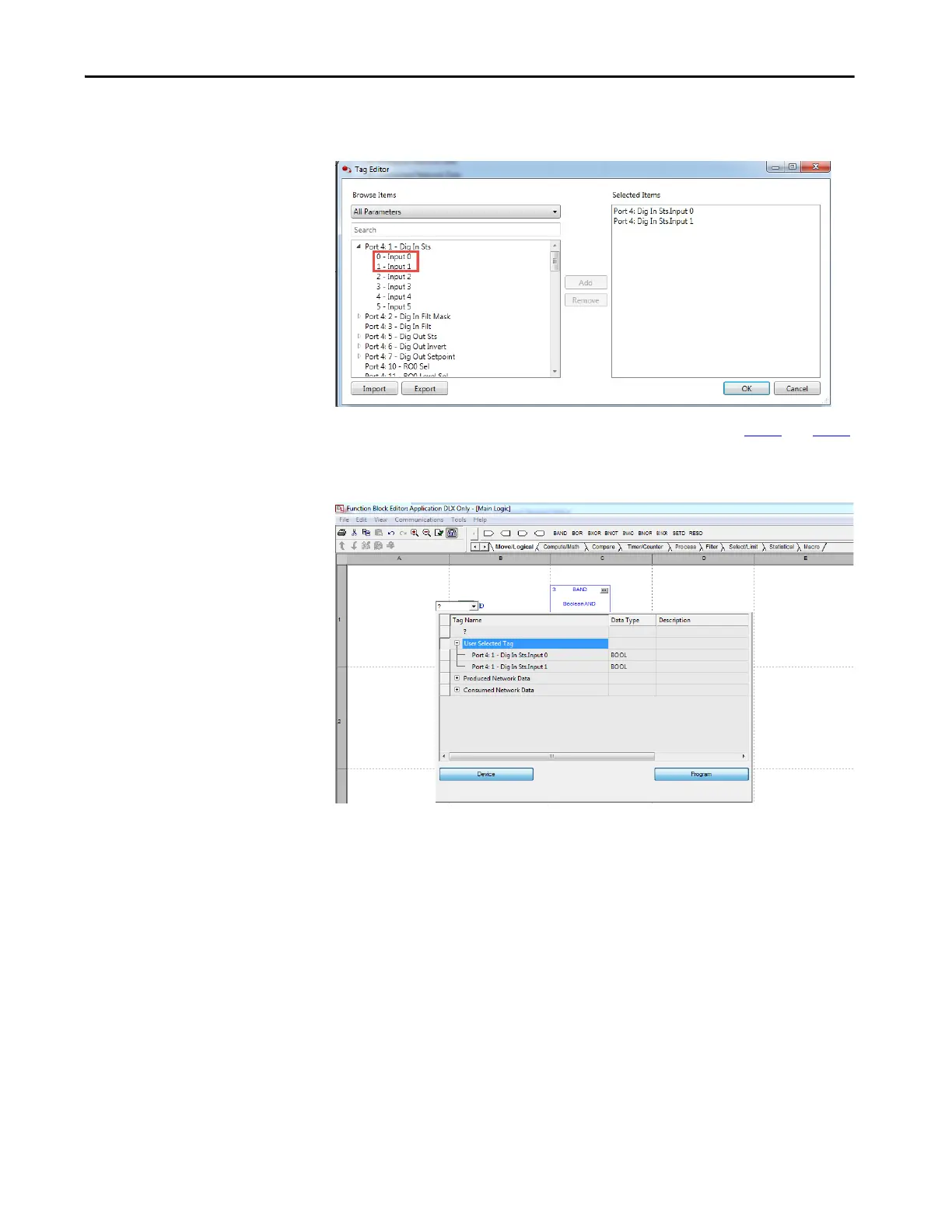

For example, to select digital input 0 from an I/O module in port 4, select
4:1 [Dig In Sts] bit 0 ‘Input 0’ and click Add.
3. To add other drive parameters to the Tag database, repeat step 1
and step 2.
4. To close the window, click OK.
All added tags appear in the DeviceLogix Editor workspace.
