Drive Selection Considerations Chapter 1

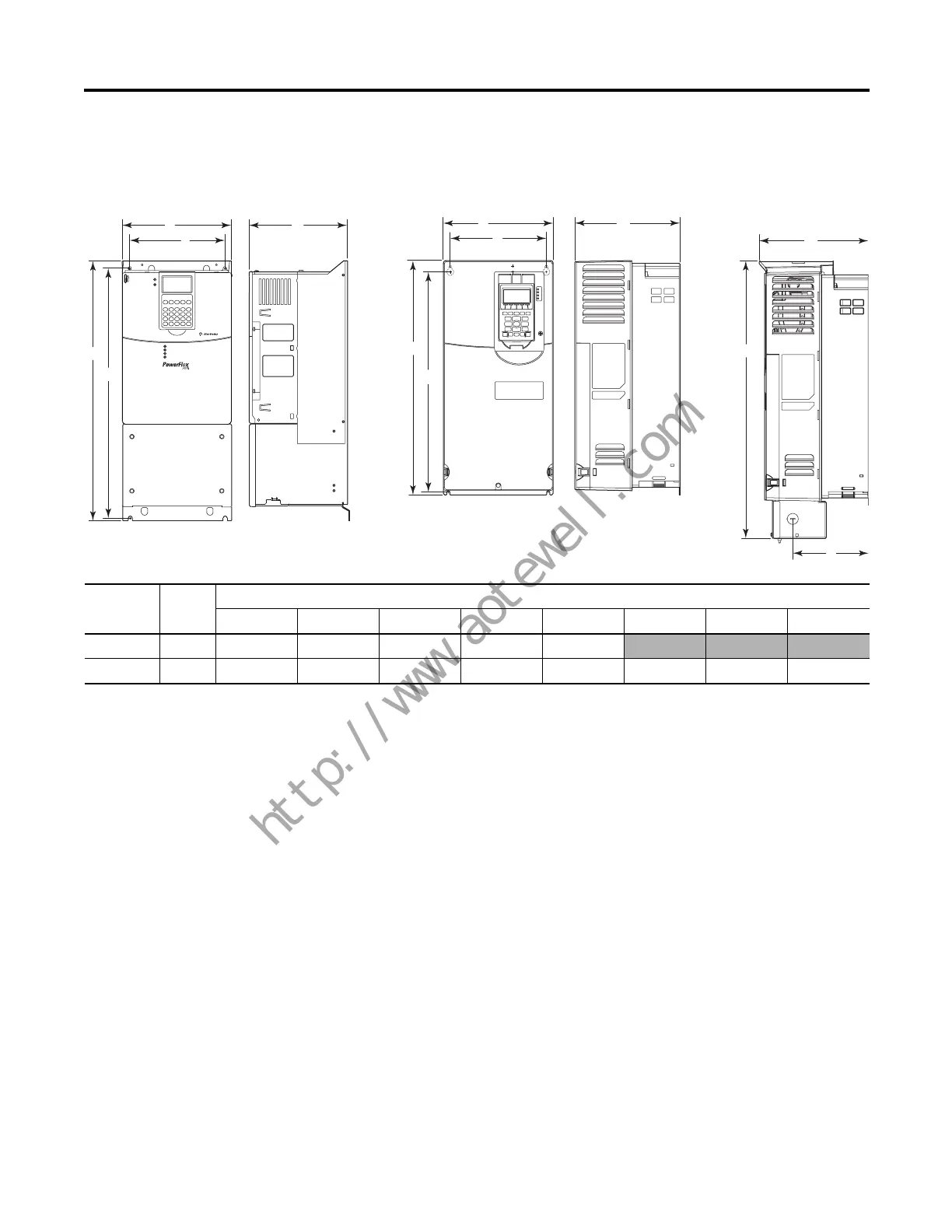

Figure 3 - PowerFlex 700 Frame 3 to PowerFlex 750-Series Frame 4
Dimensions mm (in.)
DriveFrameABCDE FGH
700 3 222.0 (8.74) 192.0 (7.56) 200.0 (7.87) 517.5 (20.37) 500.0 (19.69)
750-Series 4 222.0 (8.74) 194.0 (7.64) 212.0 (8.35) 474.0 (18.66) 455.0 (17.91) 222.7 (8.77) 564.4 (22.22) 154.7 (6.09)
C
A
B
E
D
C
A
B
E
D
F
H
G
PowerFlex 700 Frame 3 PowerFlex 750-Series Frame 4 PowerFlex 750-Series
Frame 4 w/NEMA 1 Kit
