Rockwell Automation Allen-Bradley PowerFlex 750 Series Migration Guide

24 Rockwell Automation Publication PFLEX-AP005A-EN-P - October 2010
Chapter 1 Drive Selection Considerations

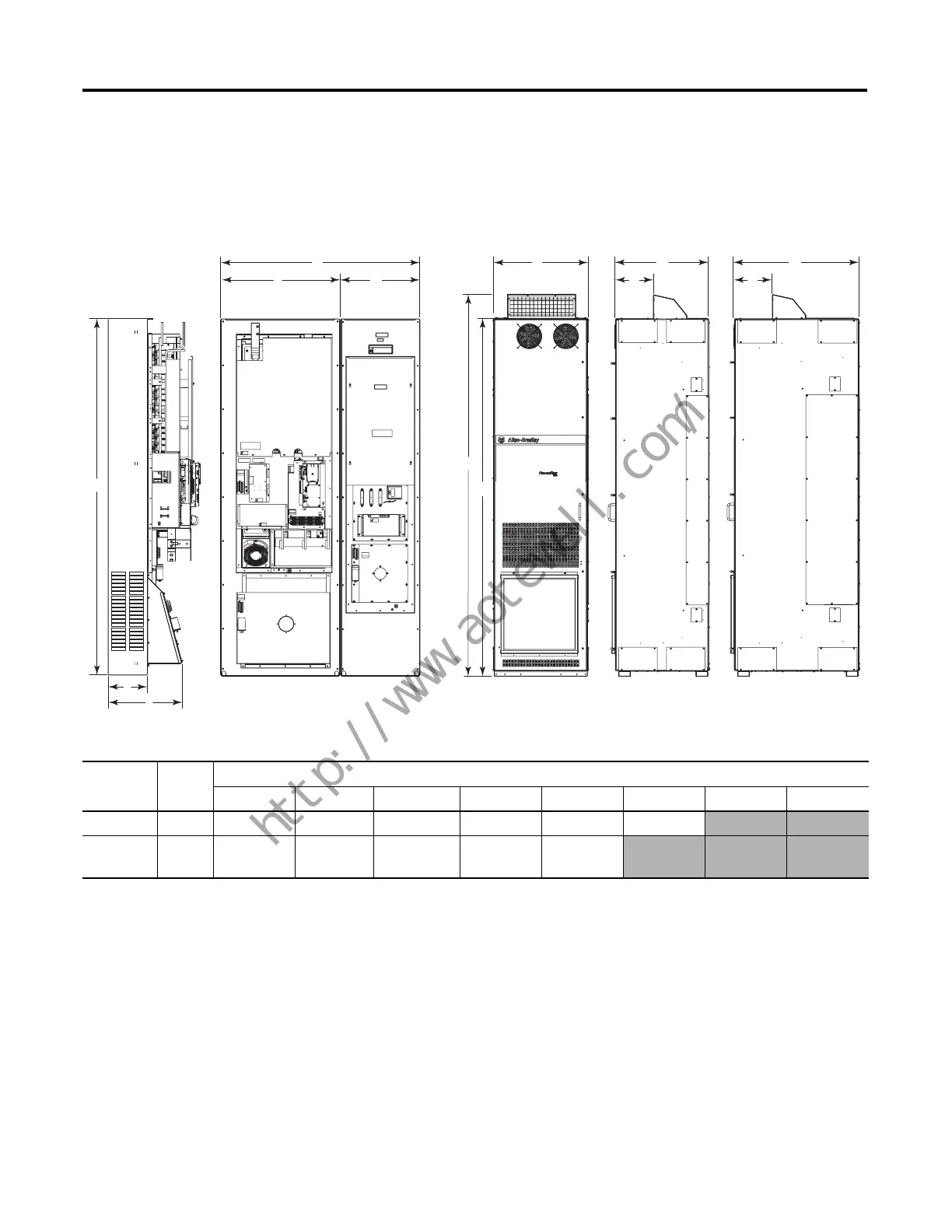

Figure 12 - PowerFlex 700 Frame 10 (IP00) to PowerFlex 755 Frame 8 (IP20)
NOTE: PowerFlex 753 Drive is not available in a Frame 8 model.
(1) PowerFlex 753 drive is not available in a Frame 8 model.
Dimensions mm (in.)
Drive Frame A B C D E F G H
700 10
1267.7 (49.91) 757.7 (29.83) 503.7 (19.83) 2275.8 (89.6) 252.7 (9.95) 475.0 (18.7)
755 8 600.0 (23.6) 240.0 (9.4) 600.0 (23.6)
(1)
800.0 (31.5)
(2)
2453.0 (96.6) 2300.0 (90.6)
(1) For 2500 MCC cabinet enclosure code B.
(2) For 2500 MCC cabinet enclosure code L.
C
A
B
E
D
C
B
120
IN1
120
IN2
3
4
5
6
DC+
DANGER
DANGER
DANGER
TB9
8 AMPERES RMS
MAXIMUM
120
IN1
120
IN2
3
4
5
6
VWU
TB11
PE
25 AMPERES RMS
MAXIMUM
GND
RISK OF SHOCK
REPLACE AFTER
SERVICING
!
DANGER
RISK OF SHOCK
REPLACE AFTER
SERVICING
!
DANGER
RISK OF SHOCK
REPLACE AFTER
SERVICING
!
DANGER
TB10
8 AMPERES RMS
MAXIMUM
120
IN1
120
IN2
3
4
5
6
TB10
8 AMPERES RMS
MAXIMUM
GND
RISK OF SHOCK
REPLACE AFTER
SERVICING
!
DANGER
C
A
B
D
F
E
PowerFlex 700 Frame 10
(IP00, NEMA/UL Type Open)
PowerFlex 755 Frame 8
(IP20, NEMA/UL Type 1)
With 2500
MCC Cabinet
(Enclosure Code B)
With 2500
MCC Cabinet
(Enclosure Code L)
