Rockwell Automation Publication PFLEX-AP005A-EN-P - October 2010 33
Drive Selection Considerations Chapter 1

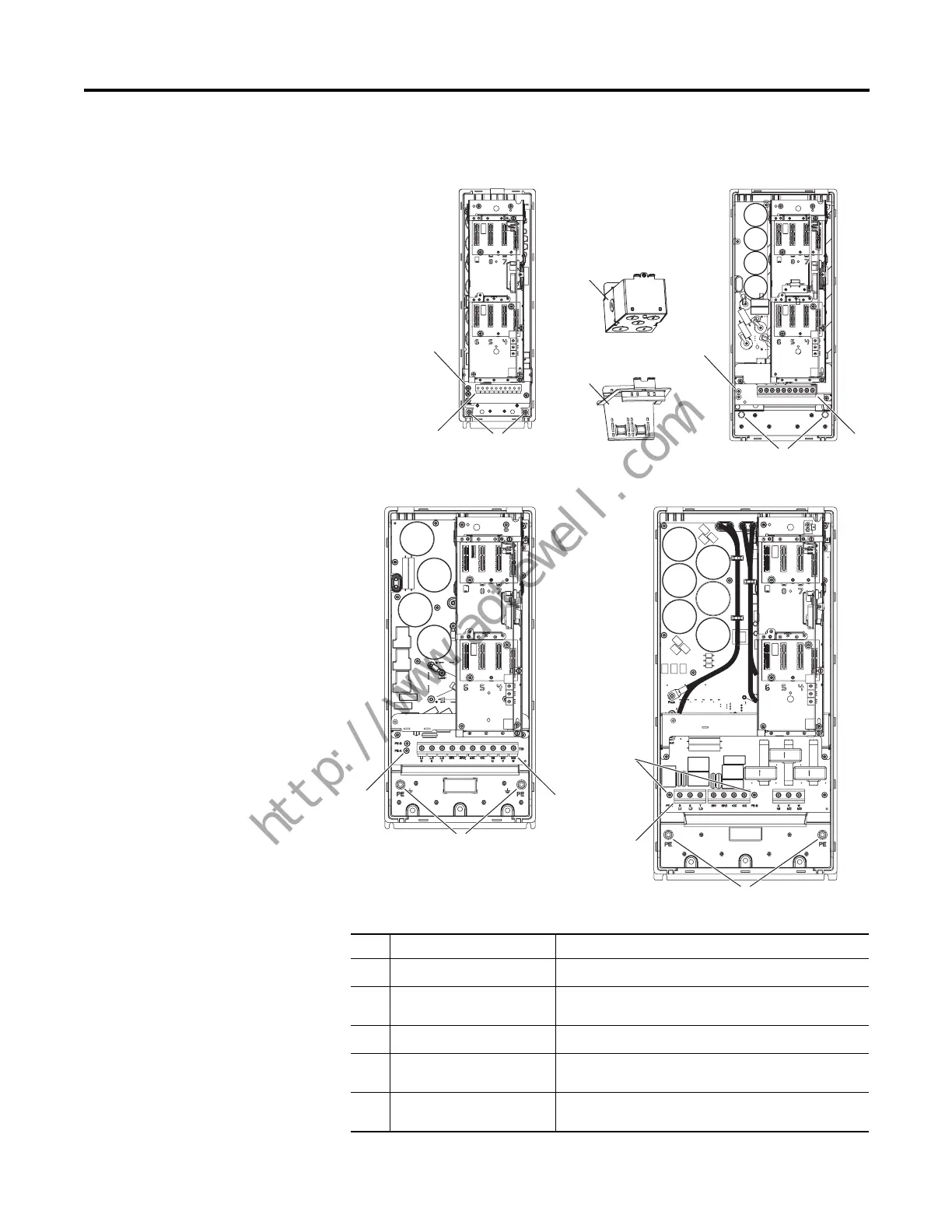

Figure 16 - PowerFlex 750-Series Frames 2…5
Typical Terminal Block Location and Termination Points
No. Name Description
Power Terminal Block R/L1, S/L2, T/L3, BR1, BR2, +DC, -DC, U/T1, V/T2, W/T3
PE Grounding Studs Terminating point to chassis ground for incoming AC line
and motor shields
PE-A and PE-B MOV and CMC jumper screws
Optional NEMA/UL Type 1
Conduit Box
Terminating point to chassis ground for incoming AC line,
motor shields, and control wire shields
Optional EMC Plate Terminating point to chassis ground for incoming AC line,
motor shields, and control wire shields
Frame 2
Frame 3
Frame 4
Frame 5
