Rockwell Automation Allen-Bradley PowerFlex 750 Series Migration Guide

Rockwell Automation Publication PFLEX-AP005A-EN-P - October 2010 41
Drive Selection Considerations Chapter 1

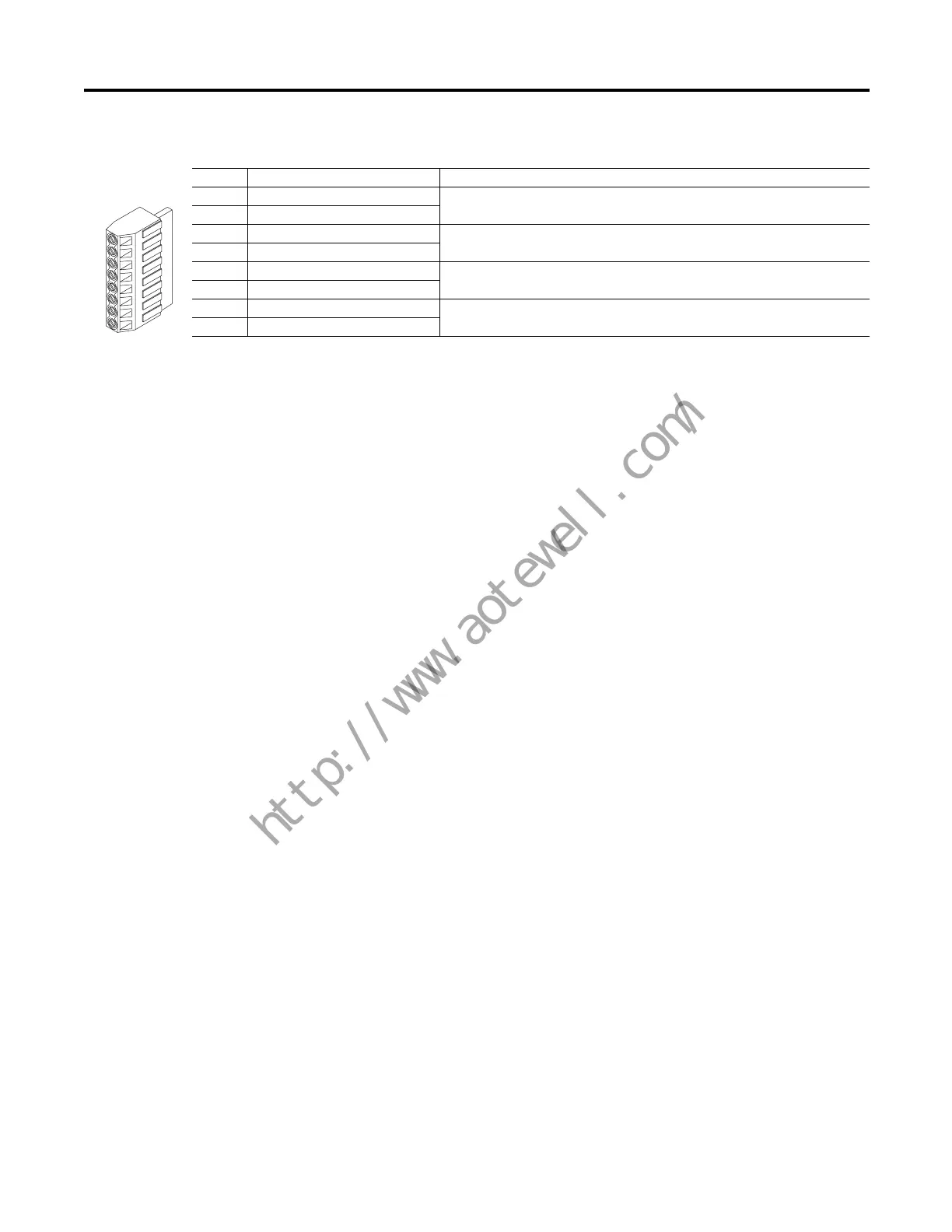

Table 17 - PowerFlex 700 Drive Encoder Terminal Designations (all Frames)
Terminal Name Description
8+12V
(1)
DC Power Internal power source 250 mA
7+12V
(1)
DC Return (Common)
6 Encoder Z (NOT) Pulse, marker or registration input
(2)
5 Encoder Z
4 Encoder B (NOT) Quadrature B input
3 Encoder B
2 Encoder A (NOT) Single channel or quadrature A input
1 Encoder A
(1) Jumper-selectable +5/12V is available on PowerFlex 700 Drive ENC-1 encoder boards.
(2) Z channel can be used as a pulse input while A & B are used for encoder.
1
8
