Chapter 5 ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual

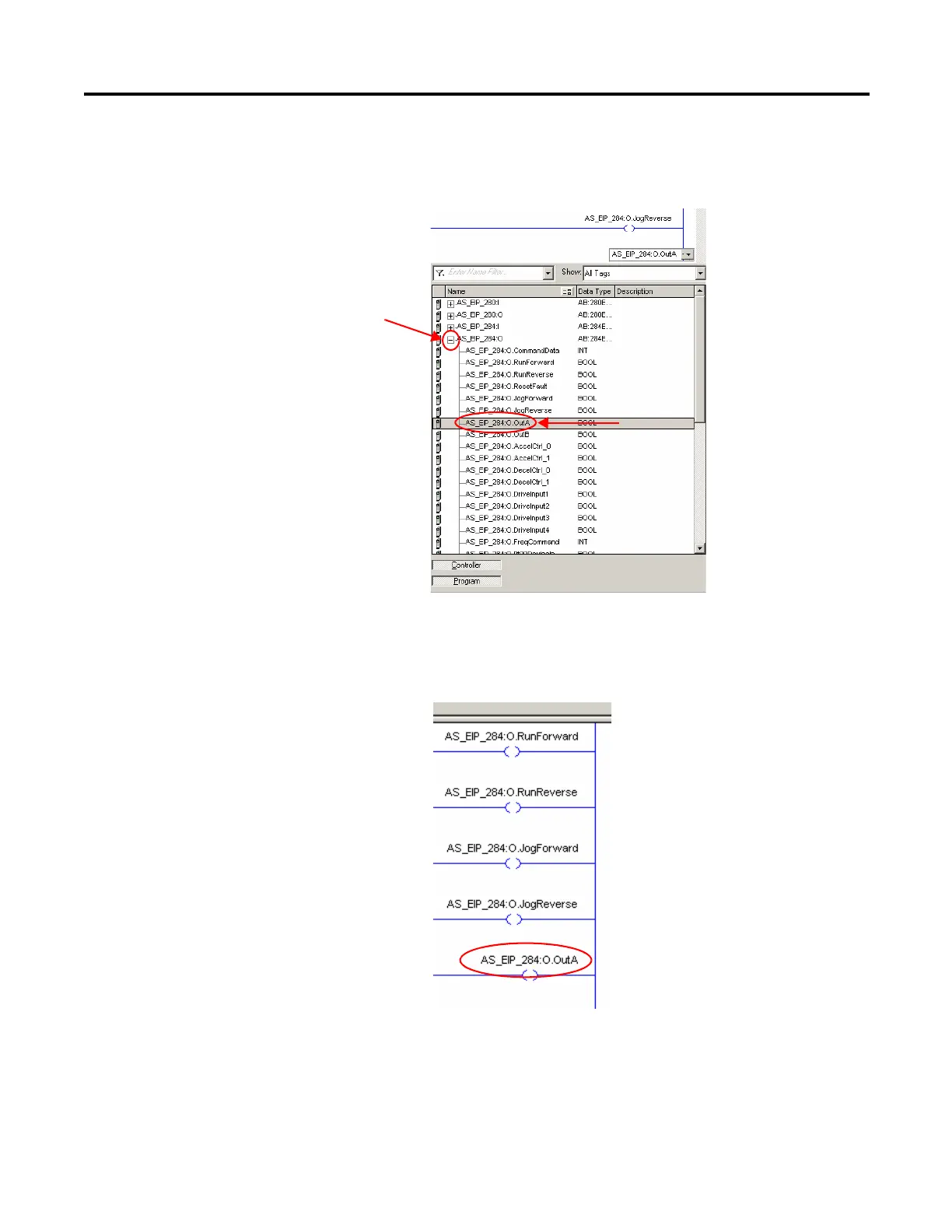

ii. Expand the options for the AS_EIP_284:O by clicking on the plus
next to AS_EIP_284:O. Select AS_EIP_284:O.OutA tag name and
hit Enter.
iii. The output of Rung 4 is now set to be Output A that turns on the
signal light. The ladder logic element should look like the figure
below.
