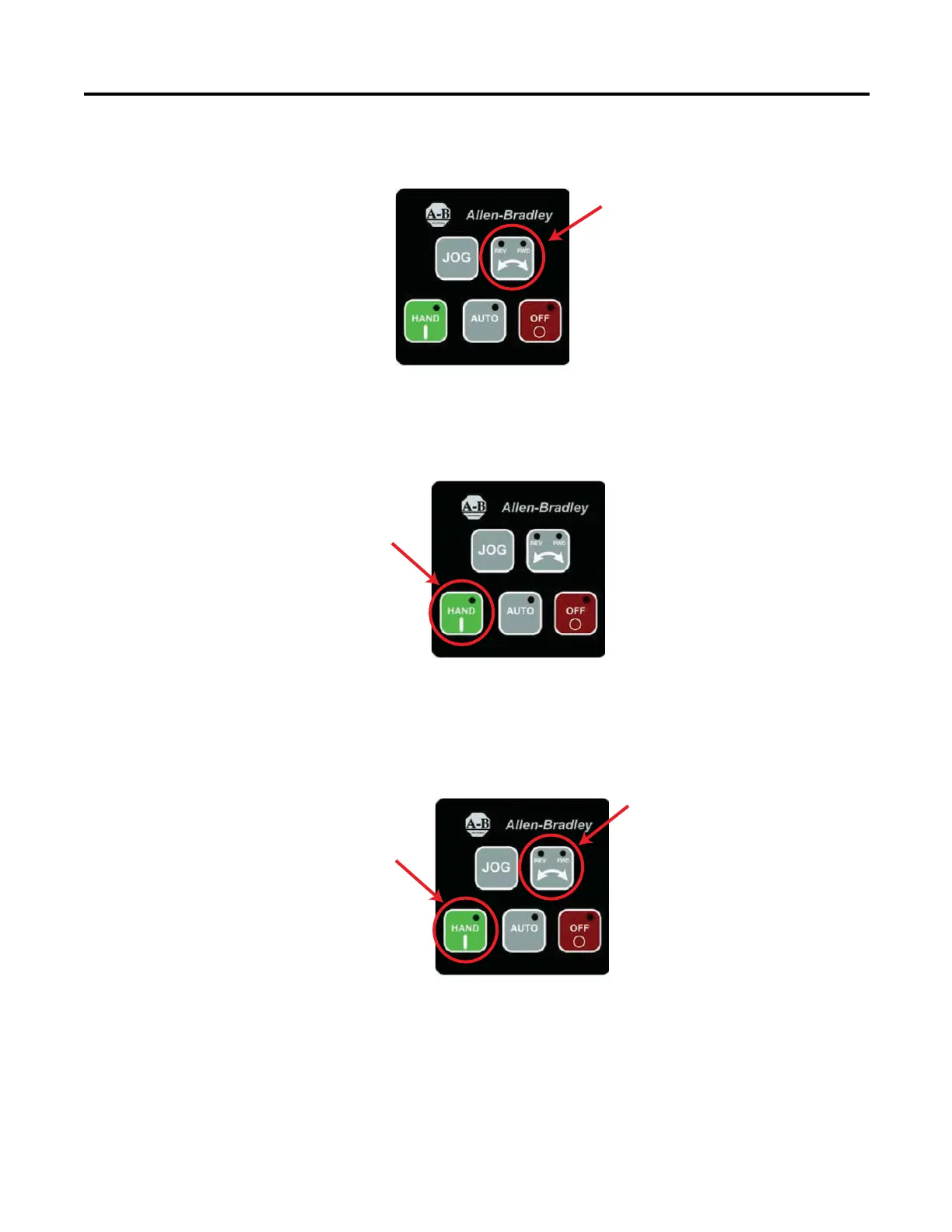

4. Press the Forward/Reverse button to select a direction for the motor to
spin.
5. The Hand function of the Bulletin 284E allows the user to continuously
spin the motor by pushing the Hand button and holding it down. Press
and hold the Hand button down to begin manual control of the unit, and
start spinning the motor in the selected direction.
6. Notice that the HOA automatically changes from Hand control mode to
Off when the Hand button is released.
7. Change the direction that the motor is spinning by pressing the Forward/
Reverse button, then hold down the Hand button. You should see the
motor decelerate and begin to accelerate in the new direction.
8. The Jog function of the Bulletin 284E allows the user to jog, or spin the
motor while the Jog button is pressed and held down. When the Jog
button is released, the motor will begin to decelerate and come to a stop.
Press the Jog button to see the Bulletin 284E unit jog the motor in the
direction designated by the Forward/Reverse button.
