Rockwell Automation ARMORSTART User Manual

62 Rockwell Automation Publication 280E-PM001A-EN-P – August 2011
Chapter 5 ArmorStart
®
EtherNet/IP
™
Communications & Control Programming Manual

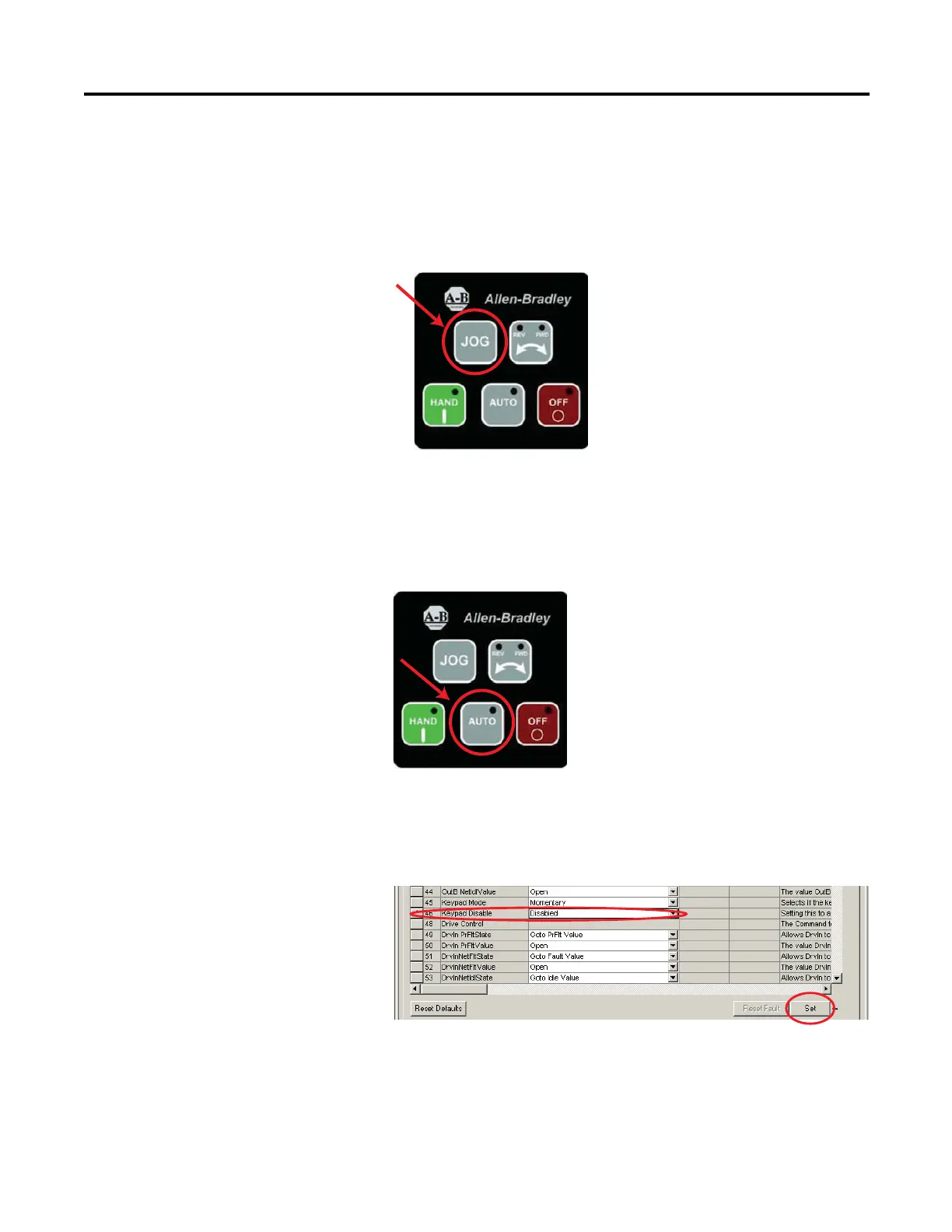

The difference between the Hand control mode and the Jog mode is that
the Hand control will bring the motor up to the designated reference speed
(for example, 60 Hz) whereas the Jog function will only bring the motor up
to a slower jog speed (for example, 10 Hz). The Jog function is intended to
provide a small jog to validate that the motor can spin versus ramping up to
running speed and then ramping back down.
9. Experiment with the Jog and Hand control functions to see if you can get
the motor to continuously run forward and in reverse, then also
experiment with jogging the motor both forward and reverse.
10. Press the Auto button to put the Bulletin 284E unit back into Auto
Control Mode.
11. The HOA keypad can be disabled using parameter 46 located in the
Parameters tab in the Properties menu. Using the drop down box, change
parameter 46 to Disabled and click the Set button. Click the OK button
to exit the Properties menu.
12. Attempt to manually control the unit using the HOA keypad. Verify that
the HOA keypad has been disabled.
