Powering Up and Adjusting the OIM
3-1
C
HAPTER
3
Powering Up and Adjusting the OIM
This chapter tells you what to expect on power-up and power-down and how to make
adjustments for your application.
3.1 Powering Up the OIM
The
OIM
is powered when the drive is powered. During power up, the
OIM
establishes
communication with the drive and reads drive information from the Regulator board.
The
OIM
indicators are off and the display goes through the power-up sequence shown
in figure 3.1.
Important:
See the hardware manual for instructions on powering up the drive.
When the power-up sequence is complete, the
OIM
enters program or monitor mode,
depending on the mode when it was powered down. Any faults or alarms detected
during power-up are displayed before you see the normal displays. See chapter 7 for
information on alarms and faults.
Important:
The
OIM
is powered down with the drive. Make sure changes are saved
before powering down the drive. If parameter changes are not saved, they
will be lost. See section 4.4, “Saving and Restoring Parameter Values”.

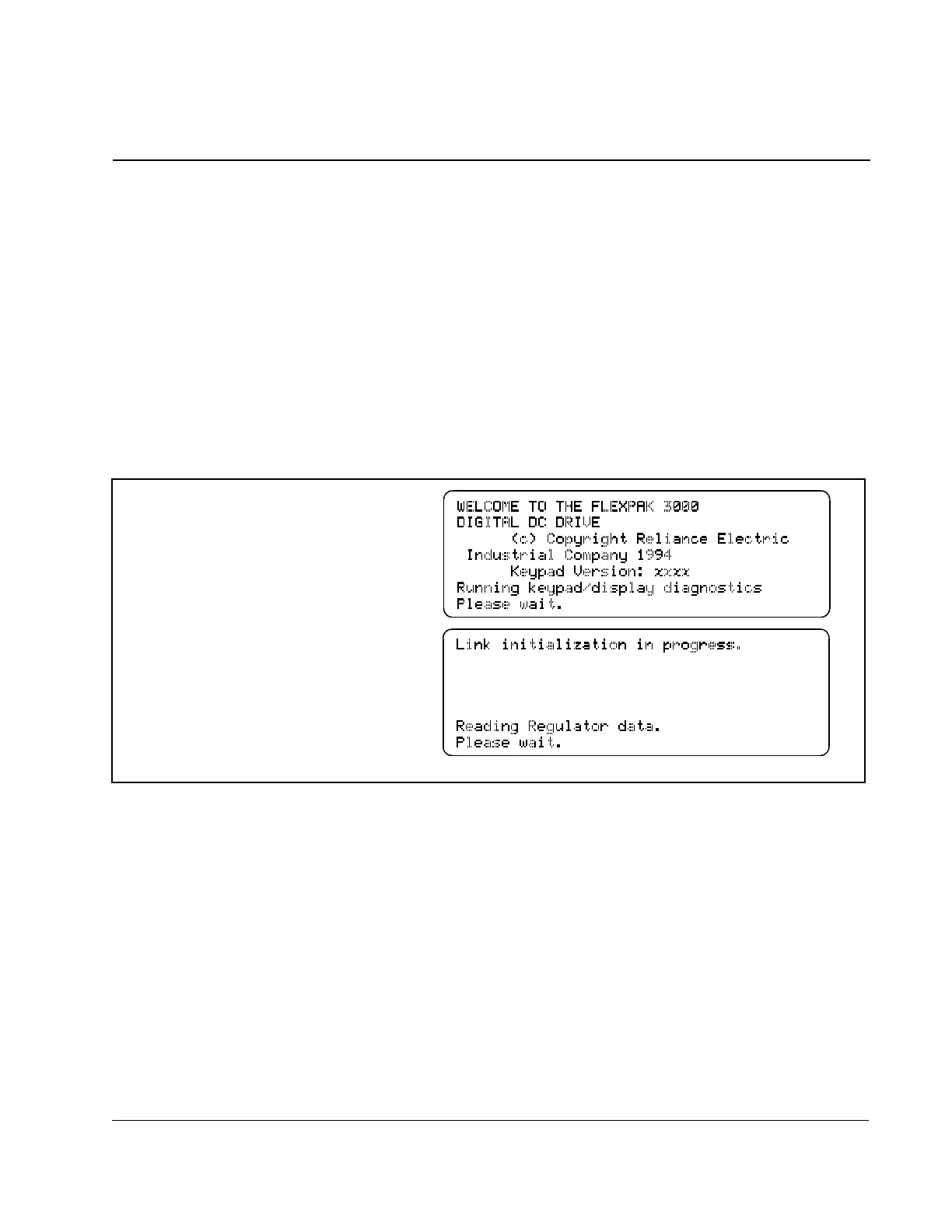

Figure 3.1 – OIM Power-Up Sequence
First Screen on Power-Up
Second Screen on Power-Up
To Next Page
