Powering Up and Adjusting the OIM
3-5
3.4.1 Changing the Scaling of Speed, Load, and
Outer Control Loop Units
Examples in this procedure are for speed unit scaling. The same basic steps are used
to configure load and outer control loop units.
To scale units:
Step 1. Press until the key indicator reads
PROGRAM
. Press until
“FlexPak 3000 Main Menu” is displayed at the top of the screen.
Step 2. Press to point the cursor ( ) to Operator Interface. Press .
Step 3. Press to point the cursor to Define User Units. Press to display
the menu shown in figure 3.4.
Step 4. Press
until the cursor is pointing to the option you want. Press .
After a few seconds, the Define Units screen is displayed, shown in figure 3.5.
The currently selected units shown on the right side of the screen.
Step 5. Move the cursor to the units of measure that you want. Press
•
If you selected
RPM
, %, %
FLA
, or
AMPS
: The units are changed and you
are returned to the Define User Units screen. To save the new units
through a power cycle, you must use Memory Save. See section 4.4.
•
If you selected
OTHER
: See the next section.

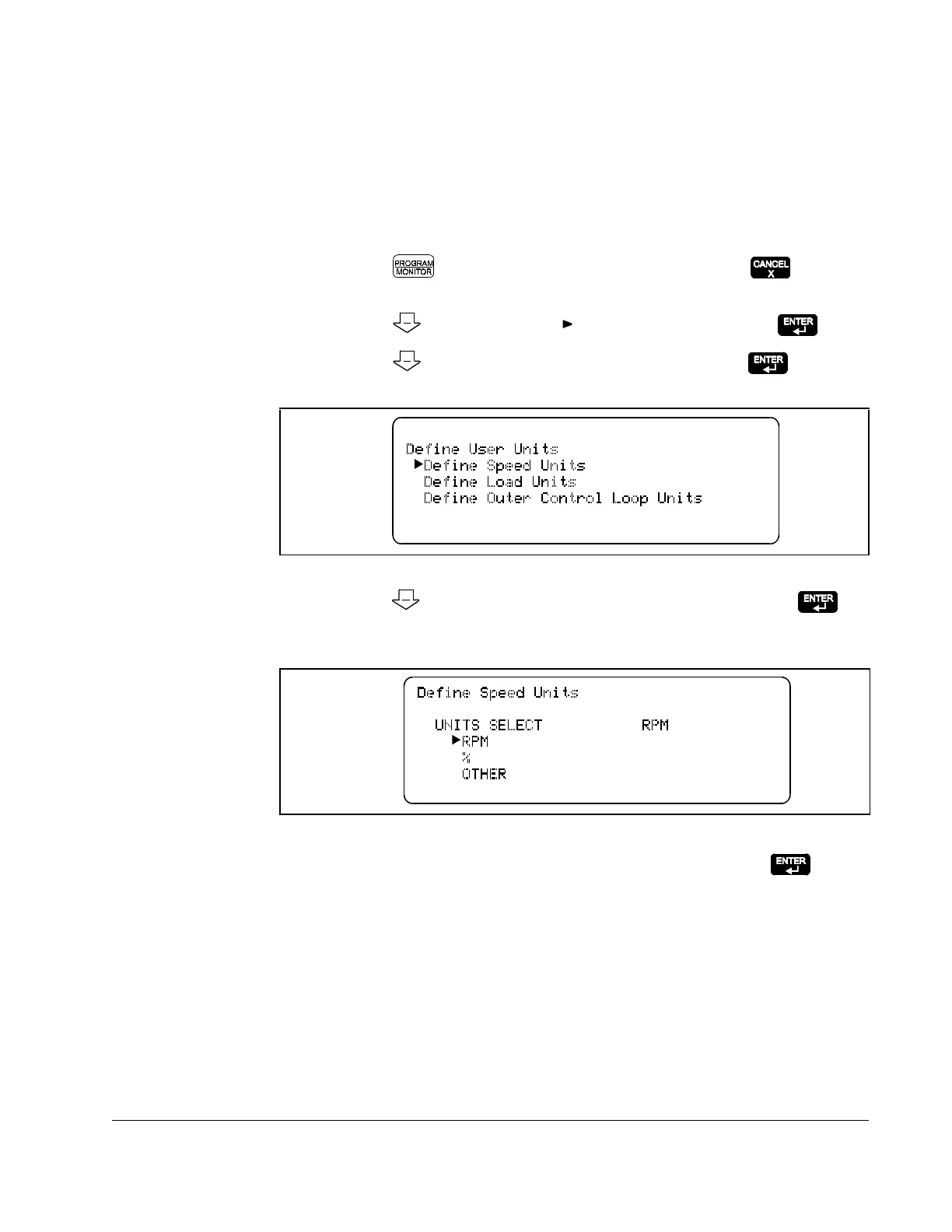

Figure 3.4 – Define User Units Menu
Figure 3.5 – Define Speed Units Screen
To Next Page
