Maintenance
Repair
108 MagneMotion
Rockwell Automation Publication MMI-UM037A-EN-P - April 2020
5. Tilt the vehicle at an angle, with the eccentric bearings positioned down and the mag-
net arrays upward, as shown in Figure 39.

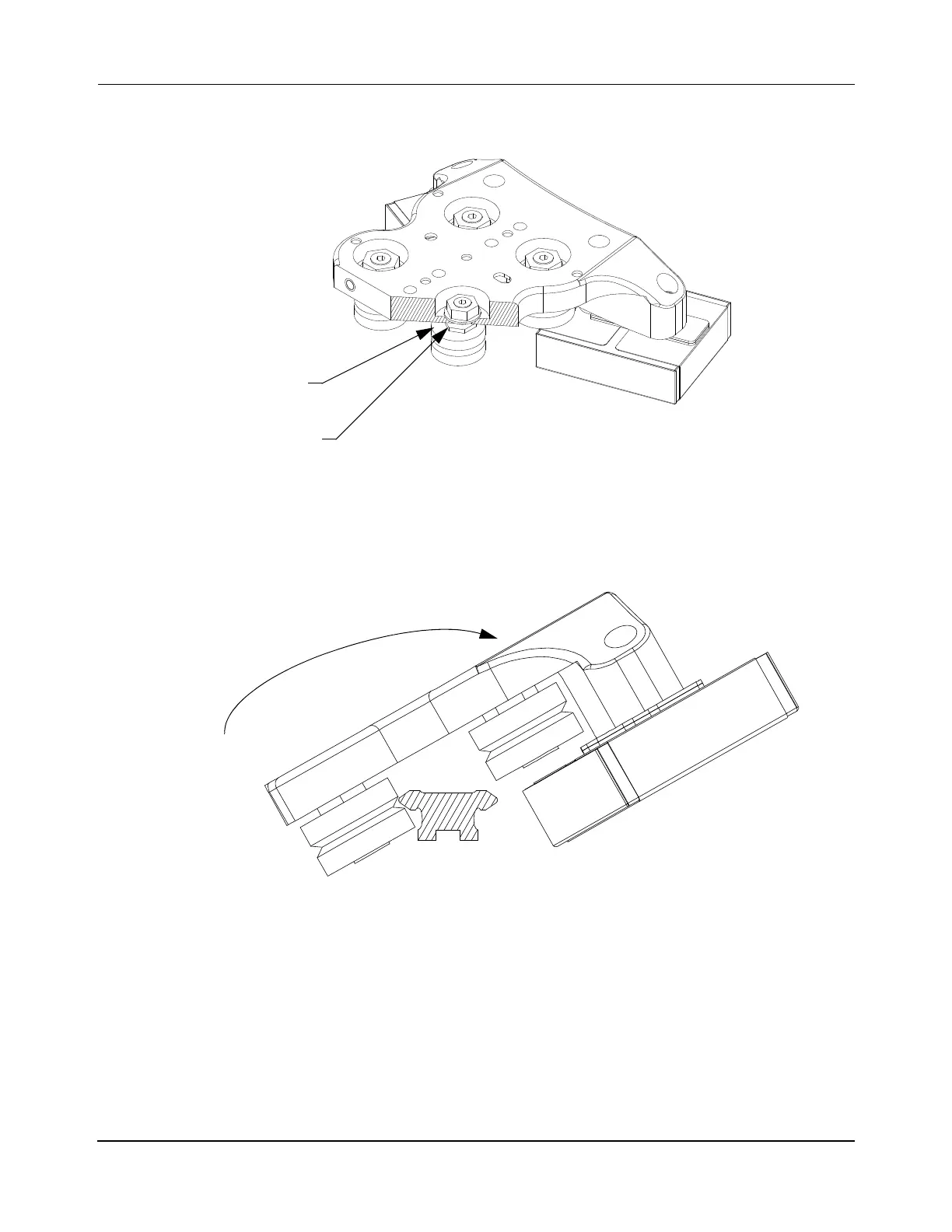

Figure 39: Precision Rail Vehicle Eccentric Bearings
6. Touch the inside edges of the eccentric bearings to the outside edge of the rail, then
slowly roll the magnet side of the vehicle onto the rail bringing the concentric bearings
and magnet arrays to a horizontal position.
Figure 40: Install Precision Rail Vehicle on Rail
7. To adjust both eccentric bearings, see Adjusting Vehicle Bearings on page 49.
8. Reattach the lubricating applicator to bottom of the vehicle. See Replace Lubricating
Applicators on Vehicles on page 109.
9. Return the MM LITE transport system to normal operation.
Eccentric
Bearing
Bearing Nut
Motor Side of Vehicle
To Next Page
