Replace Glide Puck Wear Surfaces
The various wear surfaces on the glide pucks must be replaced once they have become worn
due to extended use (typically greater than 16,000 km travel or 2 years, whichever occurs
first). This procedure provides instructions to replace either all worn wear surfaces or just the
top surfaces on the following glide pucks:
• 700-1440-00: ML Gen 4.1 Puck Assy.
• 700-1441-00: ML Gen 4.2 Puck Assy with PTFE Strip.
• 700-1441-01: ML Gen 4.2 Puck Assy with UHMW Strip.
• 700-1540-00: ML Gen 4.3 Puck Assy.
• 700-1560-00: ML G5 Puck Assy.
Required Tools and Equipment
Full Kit
• 700-1587-00 – Kit, ML Puck Wear Surfaces Replacement, Complete. Contains:
• Assy, Top Plate, Puck, Gen 4, ML.
• Preload Spacer, Compliant, Puck Center Plate, ML.
• Glue Dot, Adhesive, Hi-Tack, Semi-Perm, Lo-Profile, 0.250.

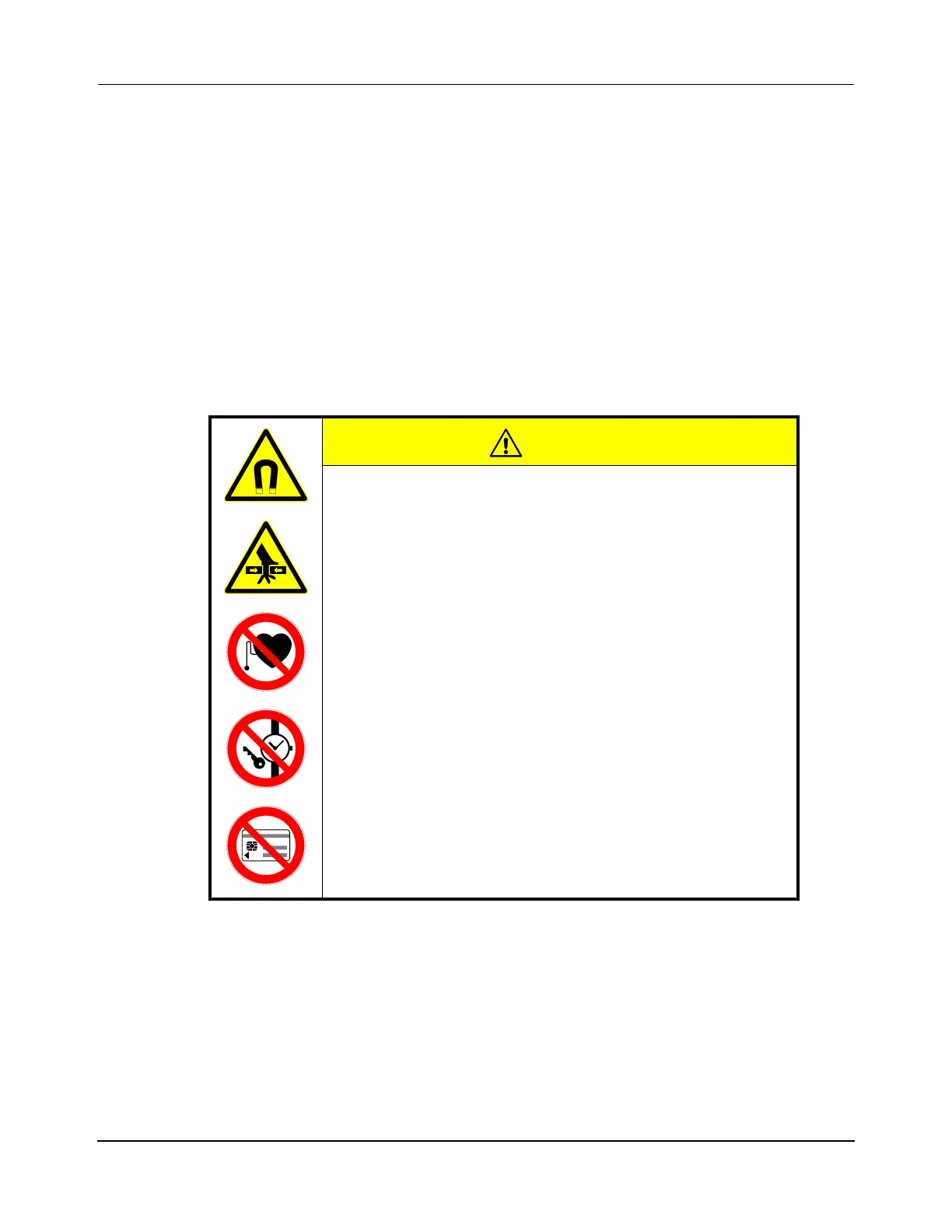

CAUTION
Strong Magnets
To avoid severe injury, people with pacemakers and other
medical electronic implants must stay away from the magnet
array on the vehicles (pucks).
To avoid injury from strong magnetic attractive forces:
• Handle only one vehicle (puck) or magnet array at a time.
• Do not place any body parts, such as fingers, between a
vehicle (puck) or magnet array and any ferrous material
or another magnet array.
• Vehicles (pucks) or magnet arrays not being used must be
secured individually in isolated packaging.
To avoid damage to watches, instruments, electronics, and
magnetic media, keep metal tools, metal objects, magnetic
media (for example, memory disks/chips, credit cards, and
tapes) and electronics away from the magnet arrays.
