Rockwell Automation MagneMotion MagneMover LITE Service Manual

Maintenance
Repair
82 MagneMotion
Rockwell Automation Publication MMI-UM037A-EN-P - April 2020
• Center Plate, Puck, Ribs, G5, ML.
• Strip, Protective, Puck Bottom, Wide, UHMW.
• Screw, FHC, M4 X 22 mm L, A4 SS, w/Dri-Loc
®
204, 5 mm DL (2X).
Top Plate Kit
• or 700-1613-00 – Kit, ML Puck Wear Surfaces Replacement, Top. Contains:
• Assy, Top Plate, Puck, Gen 4, ML.
• Preload Spacer, Compliant, Puck Center Plate, ML.
• Glue Dot, Adhesive, Hi-Tack, Semi-Perm, Lo-Profile, 0.250.
• Screw, FHC, M4 X 22 mm L, A4 SS, w/Dri-Loc 204, 5 mm DL (2X).
Tools
• Isopropyl Alcohol.
Procedure

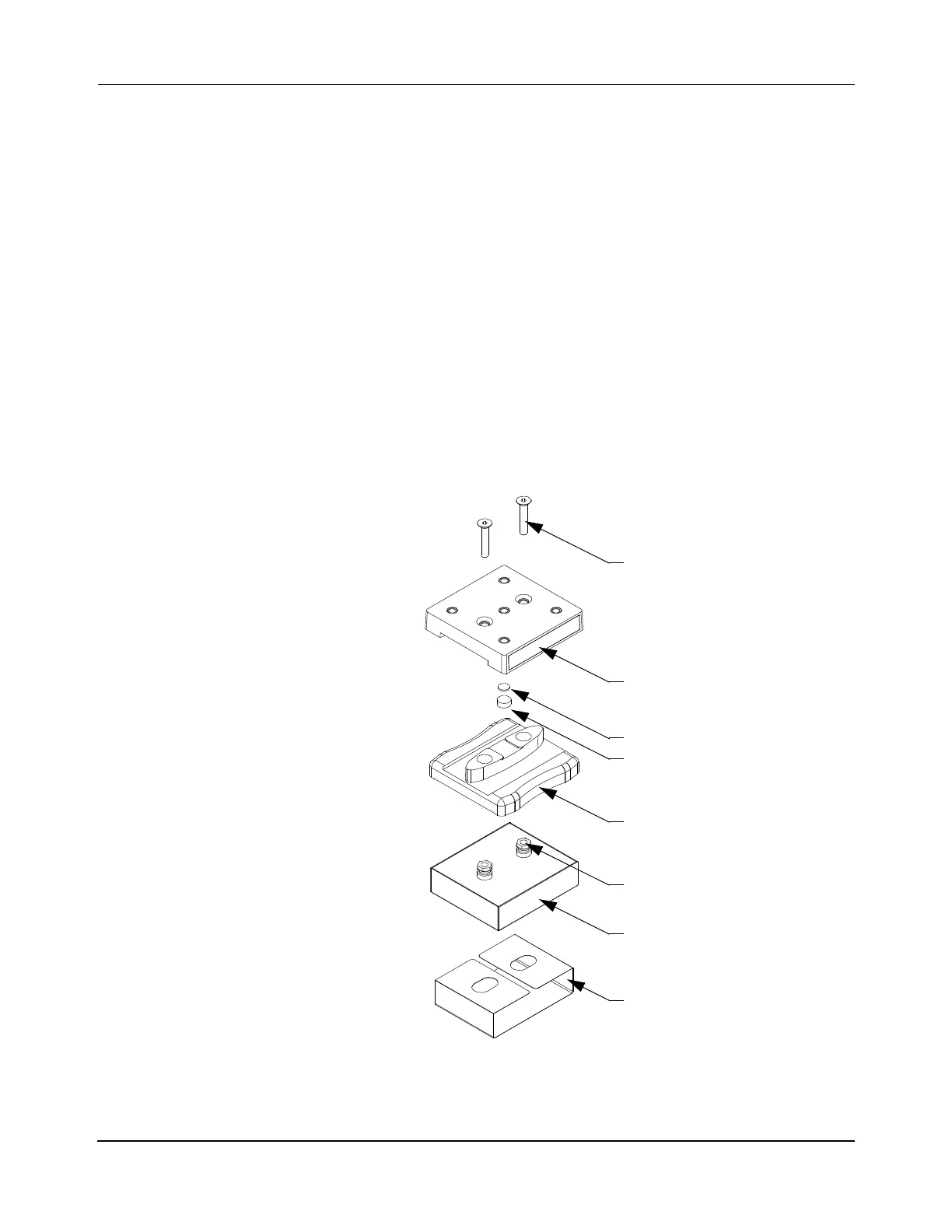

Figure 21: Remove Plates from Magnet Assembly
1. Remove the puck from the MagneMover LITE transport system (see Replace Pucks
on page 78).
M4 x 22 Screw
(2X)
Magnet Assembly
Top Plate
Center Plate
Protective Strip
Compliant Spacer
Threaded Standoff
Glue Dot
(Ref)
