Rockwell Automation MagneMotion MagneMover LITE Service Manual

Maintenance
Repair
90 MagneMotion
Rockwell Automation Publication MMI-UM037A-EN-P - April 2020

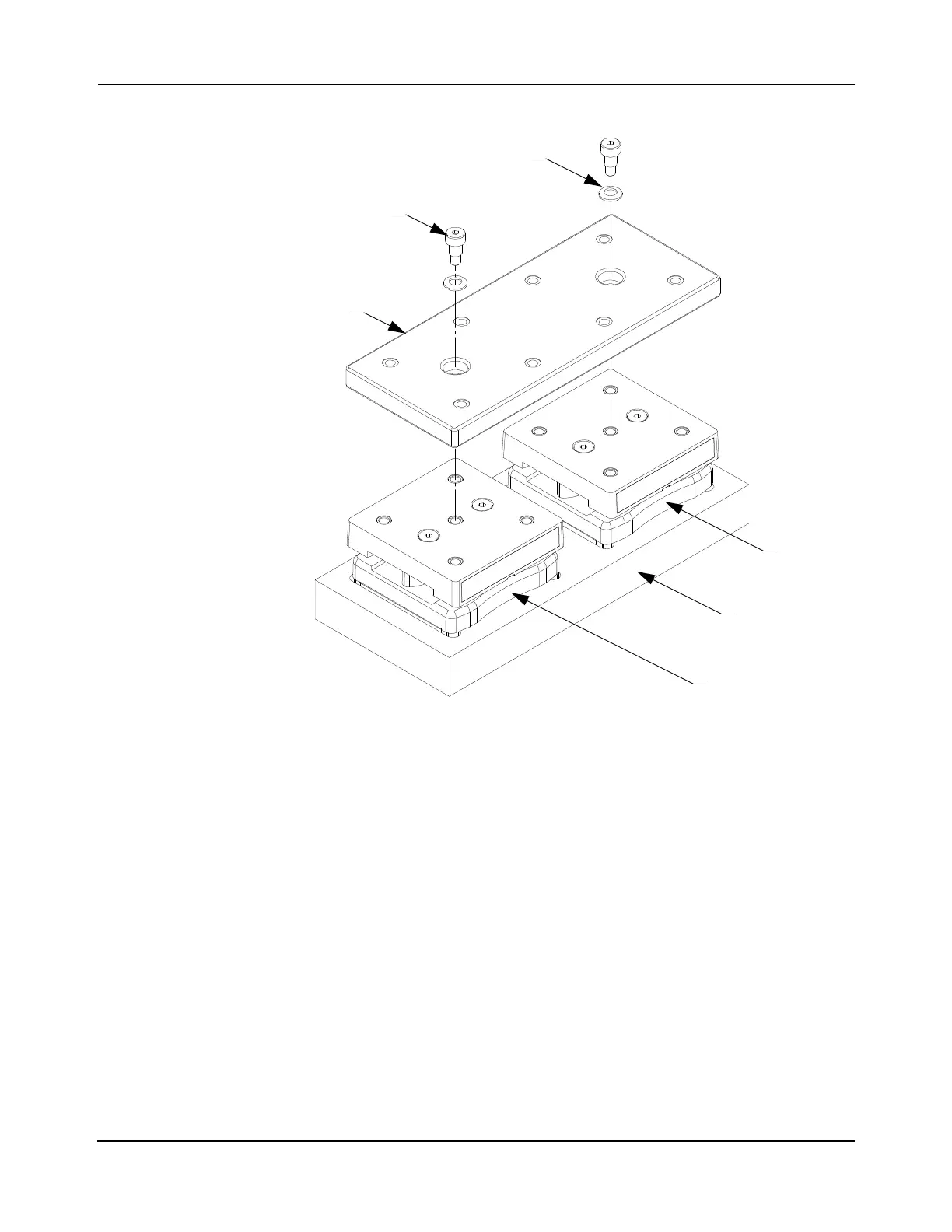

Figure 27: Attach Tandem Glide Puck Linkage Plate Assembly
7. Remove the Tandem Glide Puck Assembly from the fixture and reinstall on the MM
LITE transport system (see Replace Pucks on page 78).
If the tandem puck is not being reinstalled on the transport system, store it in its origi-
nal packaging, or wrap it in bubble-wrap, for protection.
Linkage Plate
Installation
Fixture
Puck
Puck
M4 Shoulder Screw
(2X)
Belleville Spring Washer
(2X)
