Maintenance
Repair
98 MagneMotion
Rockwell Automation Publication MMI-UM037A-EN-P - April 2020
F. Locate the new wheels and secure using the new M4 screws. Tighten to
0.9 N•m [8 in•lb].
The Loctite must cure for 2 hours at 22° C [72° F] before using the puck.
G. Flip the puck body over and locate it on the magnet array.
H. Secure the puck body to the magnet array using the new M4 shoulder screws.
Tighten to 1.4 N•m [12 in•lb].
The Loctite must cure for 2 hours at 22° C [72° F] before using the puck.
Re-assemble Tandem Puck Assembly

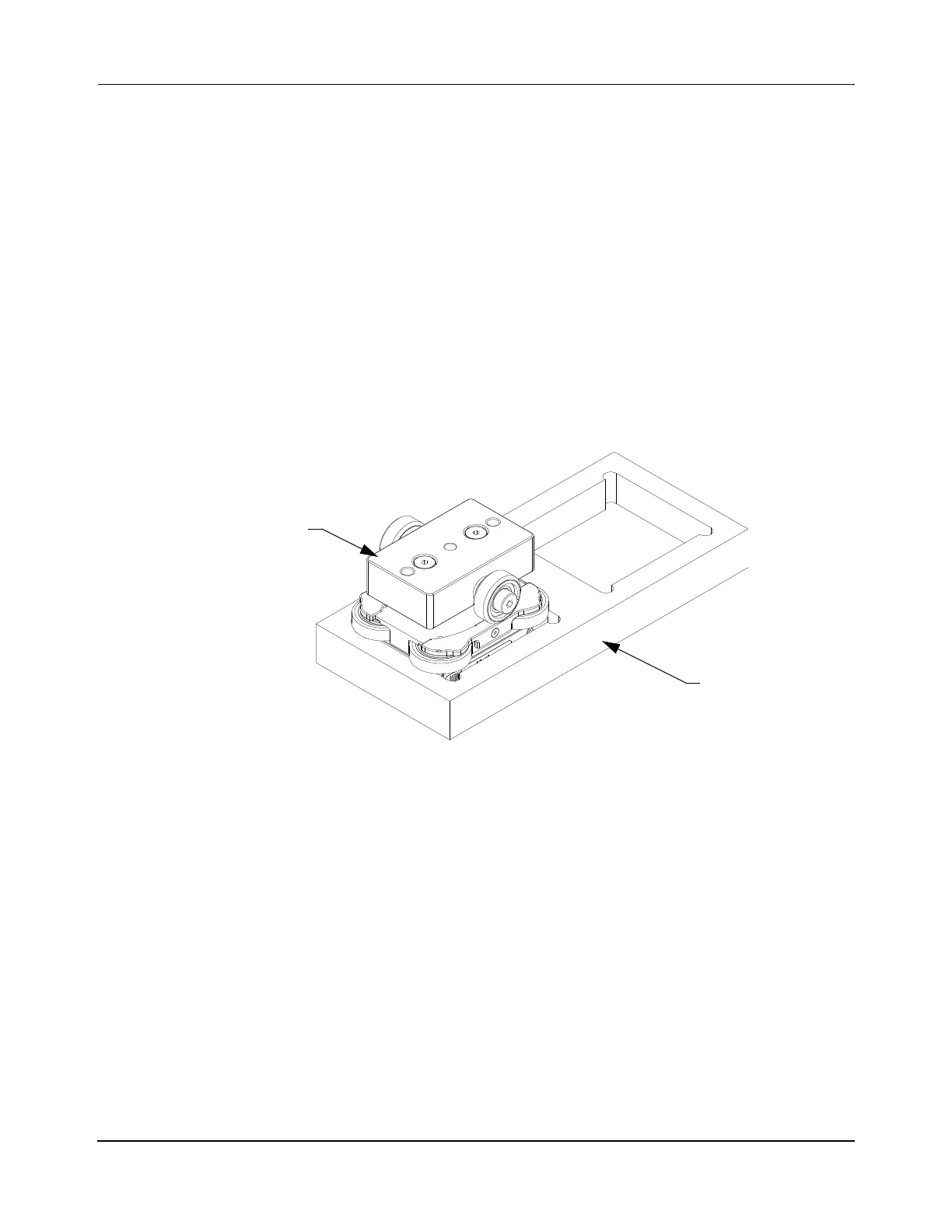

1. Place the tandem puck linkage plate installation fixture (shown in Figure 31) on a flat
surface.
2. Place one puck assembly in the left side of the fixture as shown in Figure 31.
Figure 31: Place First Wheeled Puck in Fixture
