3. Hold the left puck in place and place the right puck in the fixture keeping it as far away
from the left puck as possible as shown in Figure 32. Do not move one puck over, or
near, the other puck.

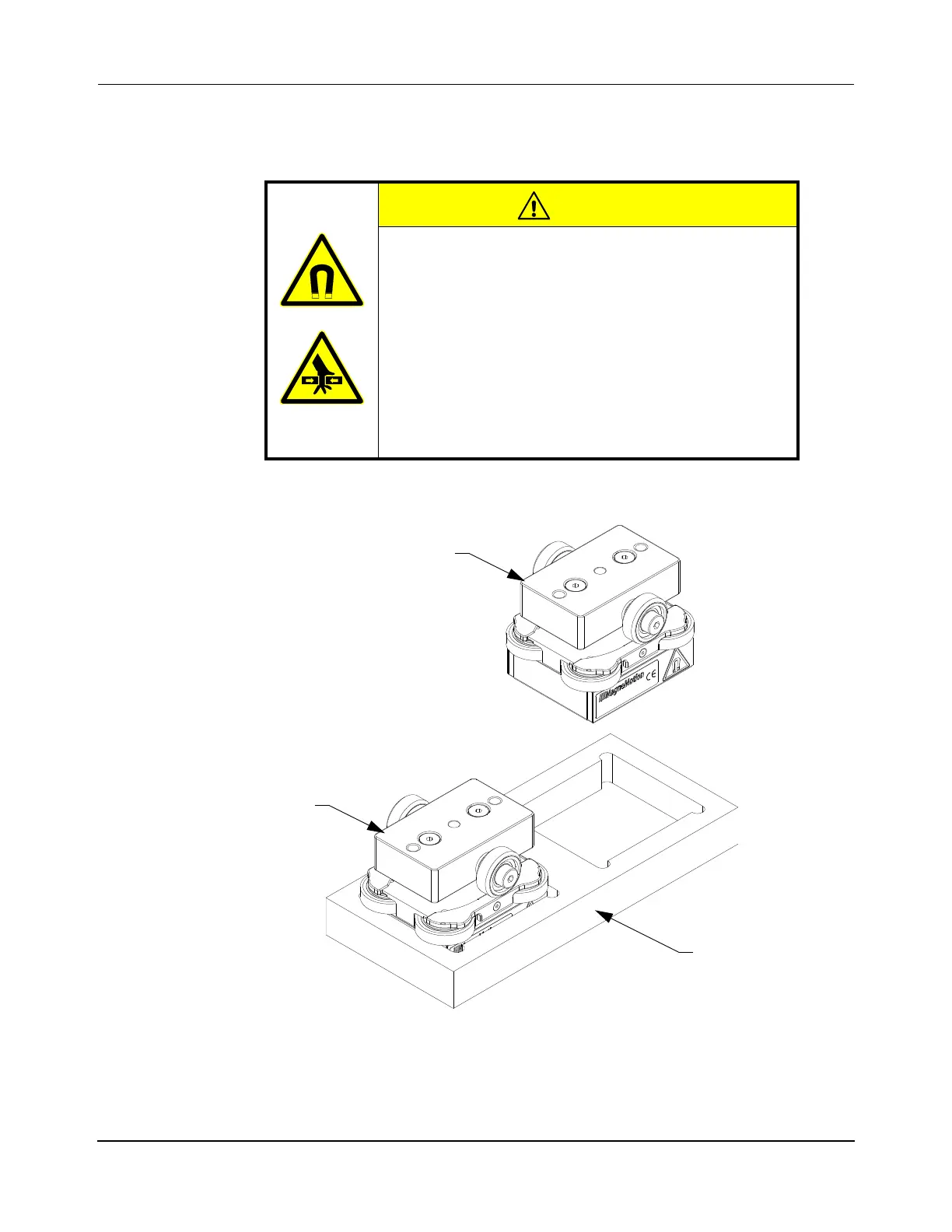

Figure 32: Place Second Wheeled Puck in Fixture
CAUTION
Strong Magnets
To avoid injury from strong magnetic attractive
forces:
• Handle only one puck at a time.
• Do not place any body parts, such as fingers,
between the puck and any ferrous material or
another magnet array.
• Pucks not being used must be secured individu-
ally in isolated packaging.
First Puck
Installation
Fixture
Second Puck
