13
Publication 1763-IN001C-EN-P - June 2015
Follow these steps to install your controller on the DIN rail.
1. Mount your DIN rail. (Make sure that the placement of the controller on the DIN rail
meets the recommended spacing requirements. See Controller Spacing on page 12.
Refer to the mounting template inside the back cover of this document.)
2. If it is open, close the DIN latch.
3. Hook the top slot over the DIN rail.
4. While pressing the controller down against the top of the rail, snap the bottom of the
controller into position.
5. Leave the protective debris strip attached until you are finished wiring the controller
and any other devices.

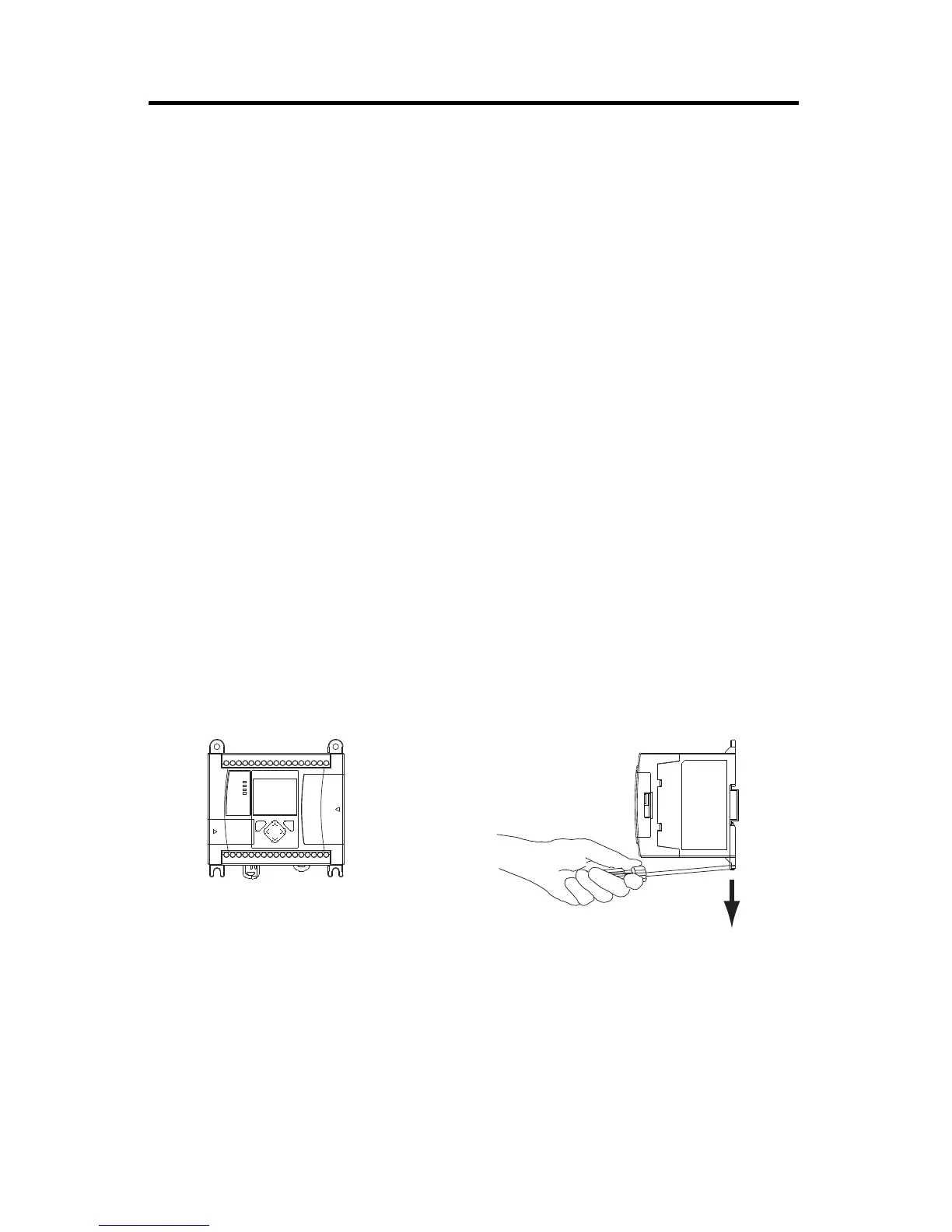

Follow these steps to remove your controller from the DIN rail.
1. Place a flat-blade screwdriver in the DIN rail latch at the bottom of the controller.
2. Holding the controller, pry downward on the latch until the latch locks in the open
position.
3. Repeat steps 1 and 2 for the second DIN rail latch.
4. Unhook the top of the DIN rail slot from the rail.
ESC OK
open
closed
