PowerFlex 753 Drive (P_PF753)
The following table shows the functions included on the Operator tab.

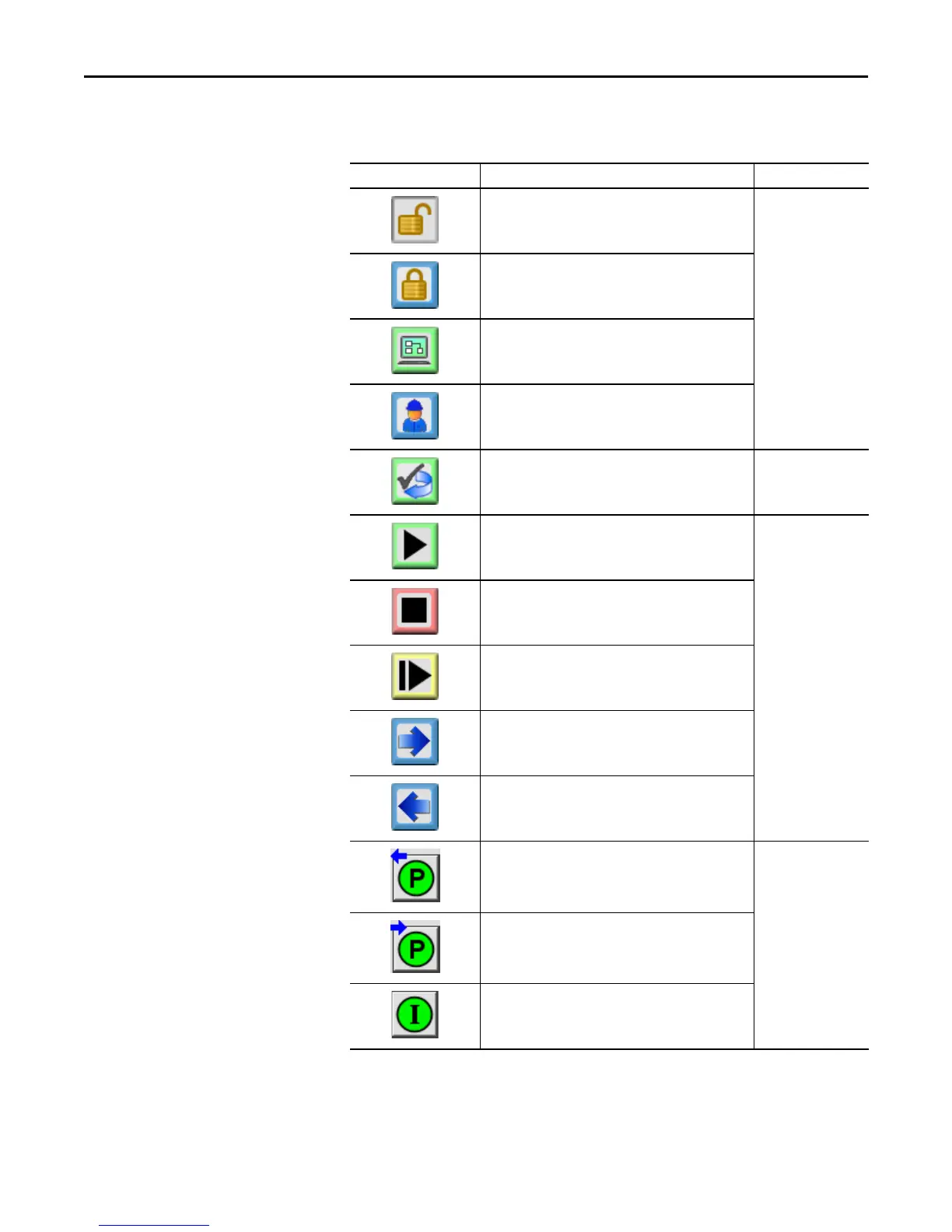

Table 13 - Operator Tab Description
Function Action Security
Click to release Operator mode lock. Manual Device
Operation
(Code B)
Click to lock in Operator mode.
Click to request Program mode.
Click to request Operator mode.
Click to reset and acknowledge all alarms. Acknowledge Alarms
(Code F)
Click to Start drive. Normal Operation of
Devices (Code A)
Click to Stop drive.
Click to Jog drive.
Click to select forward direction.
Click to select reverse direction.
Click to open Reverse Permissive faceplate. None
Click to open Forward Permissive faceplate.
Click to open Interlock faceplate.
