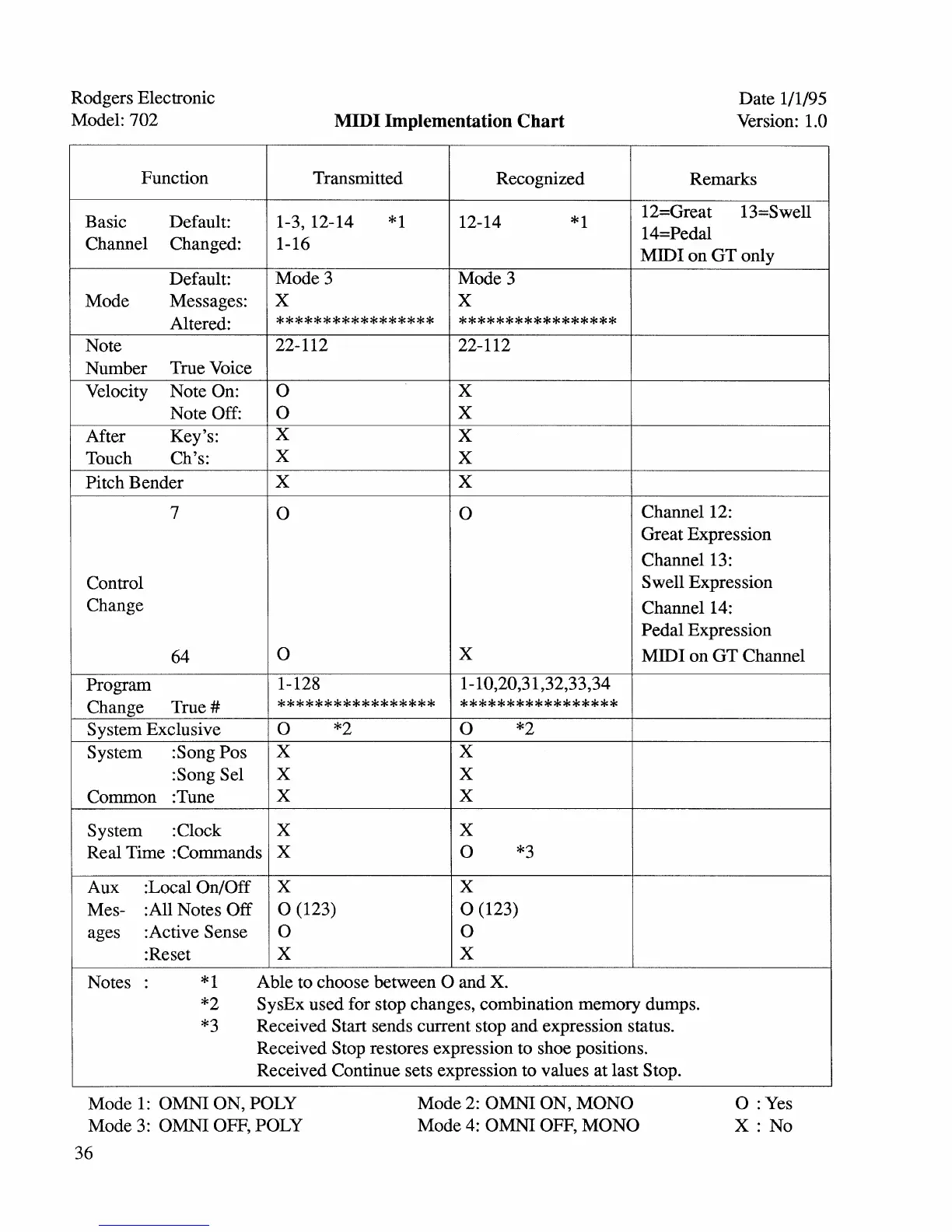

Rodgers 702 - MIDI Implementation Chart

Rodgers Electronic
Model: 702
MIDI Implementation Chart
Date 1/1/95
Version: 1.0
Function
Transmitted
Recognized
Remarks
Basic Default:
1-3, 12-14
*1
12-14
*1
12=Great
13=Swell
14=Pedal
Channel Changed: 1-16
MIDI on
GT only
Default:
Mode 3 Mode 3
Mode Messages:
X
X
Altered:
*****************
*****************
Note
22-112 22-112
Number
True Voice
Velocity Note On:
a
X
Note Off:
a X
After Key's:
X
X
Touch
Ch's:
X
X
Pitch Bender
X X
7
a a
Channel 12:
Great Expression
Channel 13:
Control
Swell Expression
Change
Channel 14:
Pedal Expression
64
a
X
MIDI on
GT Channel
Program
1-128
1-10,20,31,32,33,34
Change True
#
***************** *****************
System Exclusive
a
*2
a
*2
System
:Song Pos
X X
:Song Sel
X X
Common
:Tune
X X
System :Clock
X X
Real Time :Commands
X
a
*3
Aux :Local On/Off
X
X
Mes- :All Notes Off
0(123) 0(123)
ages
:Active Sense
a a
:Reset
X X
Notes
*1 Able to choose between a and X.
*2
SysEx used for stop changes, combination memory dumps.
*3
Received Start sends current stop and expression status.
Received Stop restores expression to shoe positions.
Received Continue sets expression to values at last Stop.
Mode
1: OMNI ON, POLY
Mode
3: OMNI OFF, POLY
36
Mode
2: OMNI ON, MONO
Mode
4: OMNI OFF, MONO
a :Yes
X: No
