[Intensity]
Adjusts the intensity of the waveforms on the screen, or the background transpar-
ency of dialog boxes, or the transparency of result boxes. If a dialog box is open,
turning the knob changes the transparency of dialog boxes. If a result box is
open, the transparency of result boxes is changed. Otherwise the waveform
intensity is adjusted. Press the knob to toggle between the three settings. The
controlled parameter and its value are shown in the input box in the lower right
corner of the screen.
4.3.3 Horizontal Controls

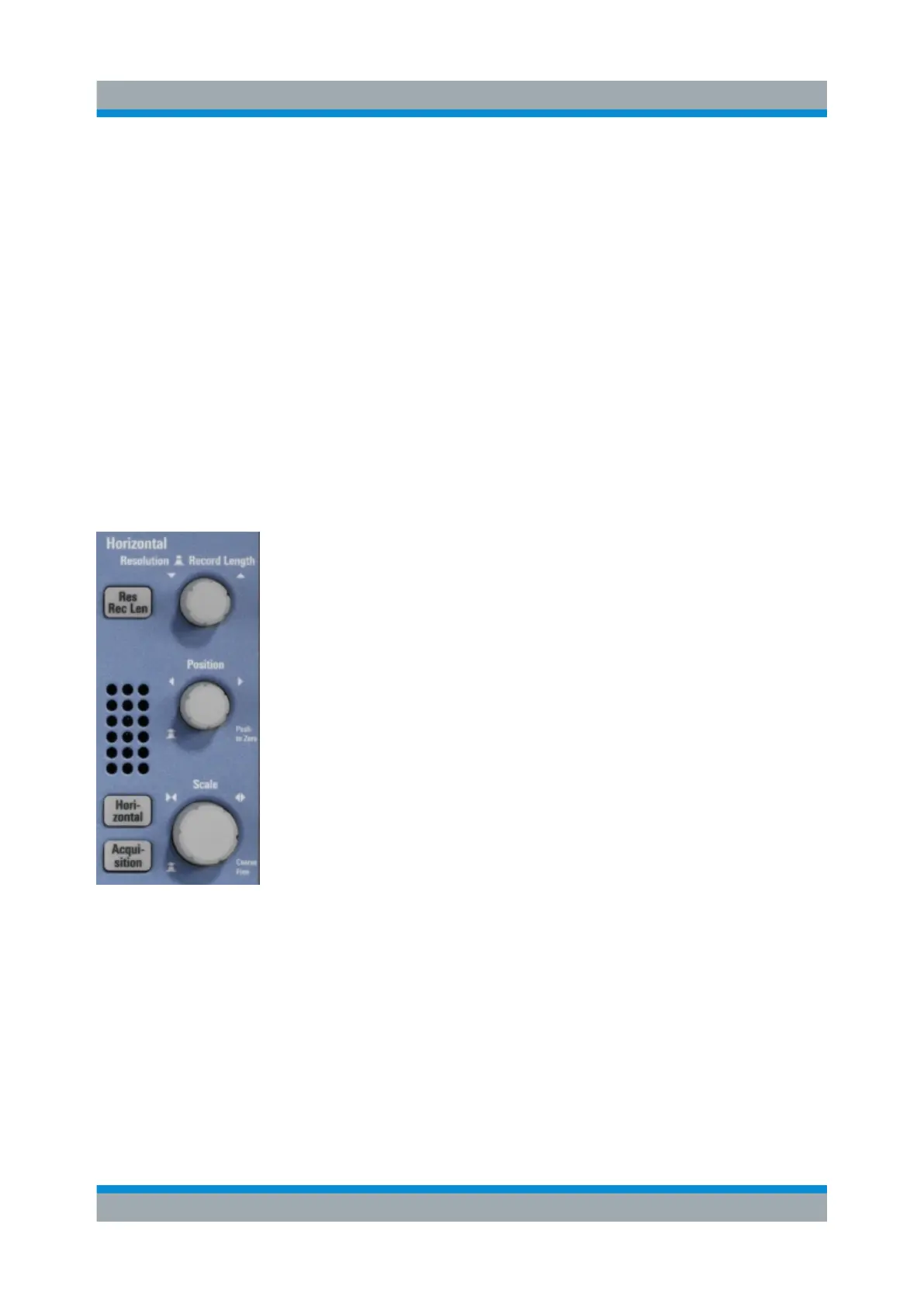

The keys and rotary knobs in the Horizontal functional block adjust the acquisition
settings and horizontal parameters. These settings are effective for all channel
waveforms.
[Res Rec Len], [Horizontal]
Open and close the "Setup" tab in the "Horizontal" dialog box, where you can:
●
Adjust the time scale, and acquisition time
●
Adjust the horizontal position, and reference point
●
Adjust the resolution and the record length
●
Enable the roll mode
Keys and Controls
