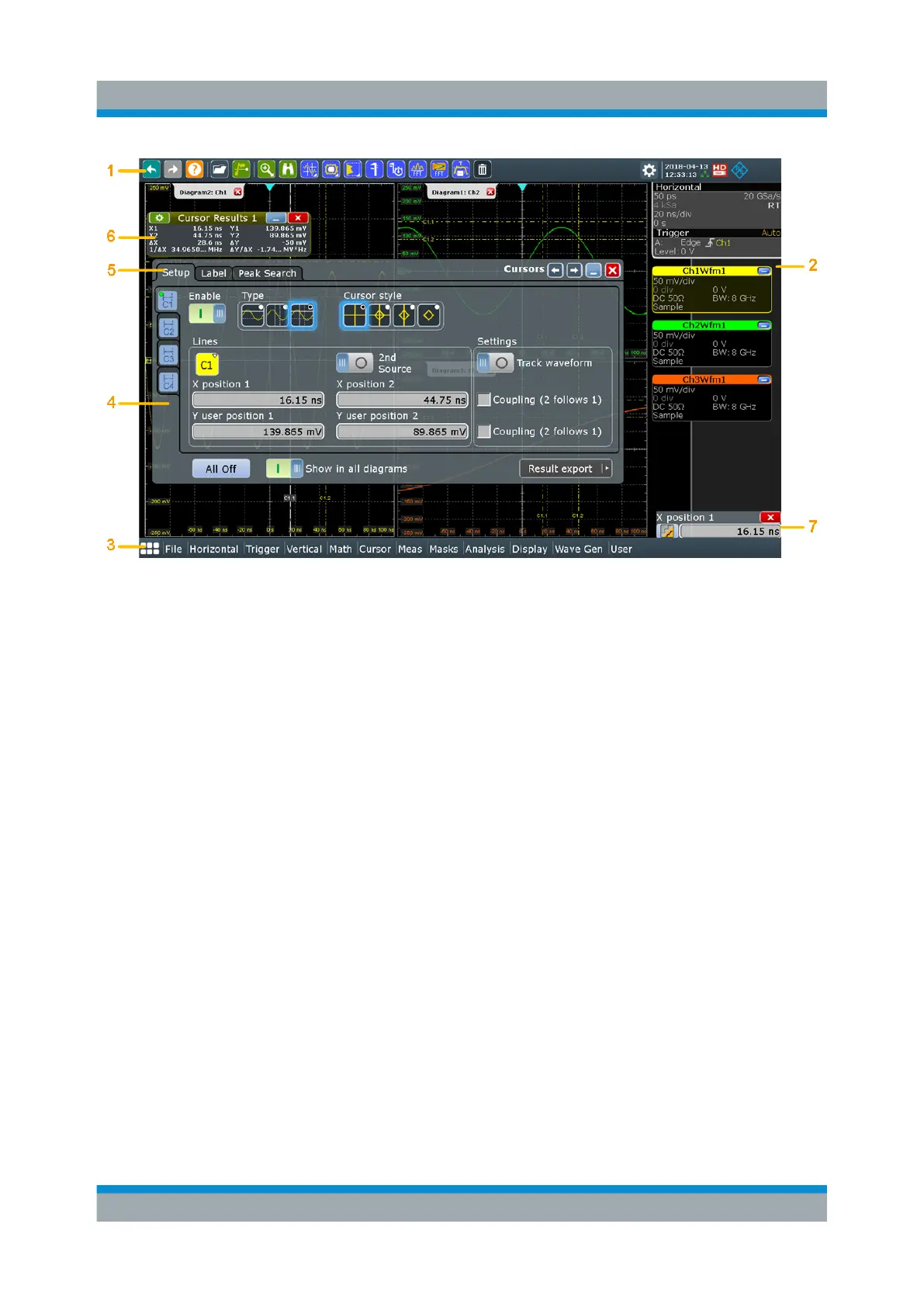

Figure 5-4: Control elements on the touchscreen
1 = Toolbar
2 = Sidebar, see "Sidebar (3)" on page 41
3 = Menu bar
4 = Dialog box
5 = Tab in a dialog box
6 = Result box
7 = Input box
Toolbar (1)
The icons on the toolbar provide quick and easy access to the most important
functionality. For a detailed description, refer to Chapter 5.6, "Toolbar",
on page 50.
Menu bar (3)
The menus provide access to the complete functionality of R&S RTP.
Dialog box (4, 5)
The tabs of the dialog boxes contain all task-oriented settings and operations,
and black buttons for calling related tabs. The usage of dialog boxes is described
in Chapter 5.8, "Using Dialog Boxes", on page 61.
