5.6.1 Using the Toolbar
Using the toolbar is easy and straightforward.
Some of the toolbar functions are one-click actions. These actions are performed
immediately when you tap the icon.
Other toolbar functions are analyzing functions. These actions are interactive
actions.

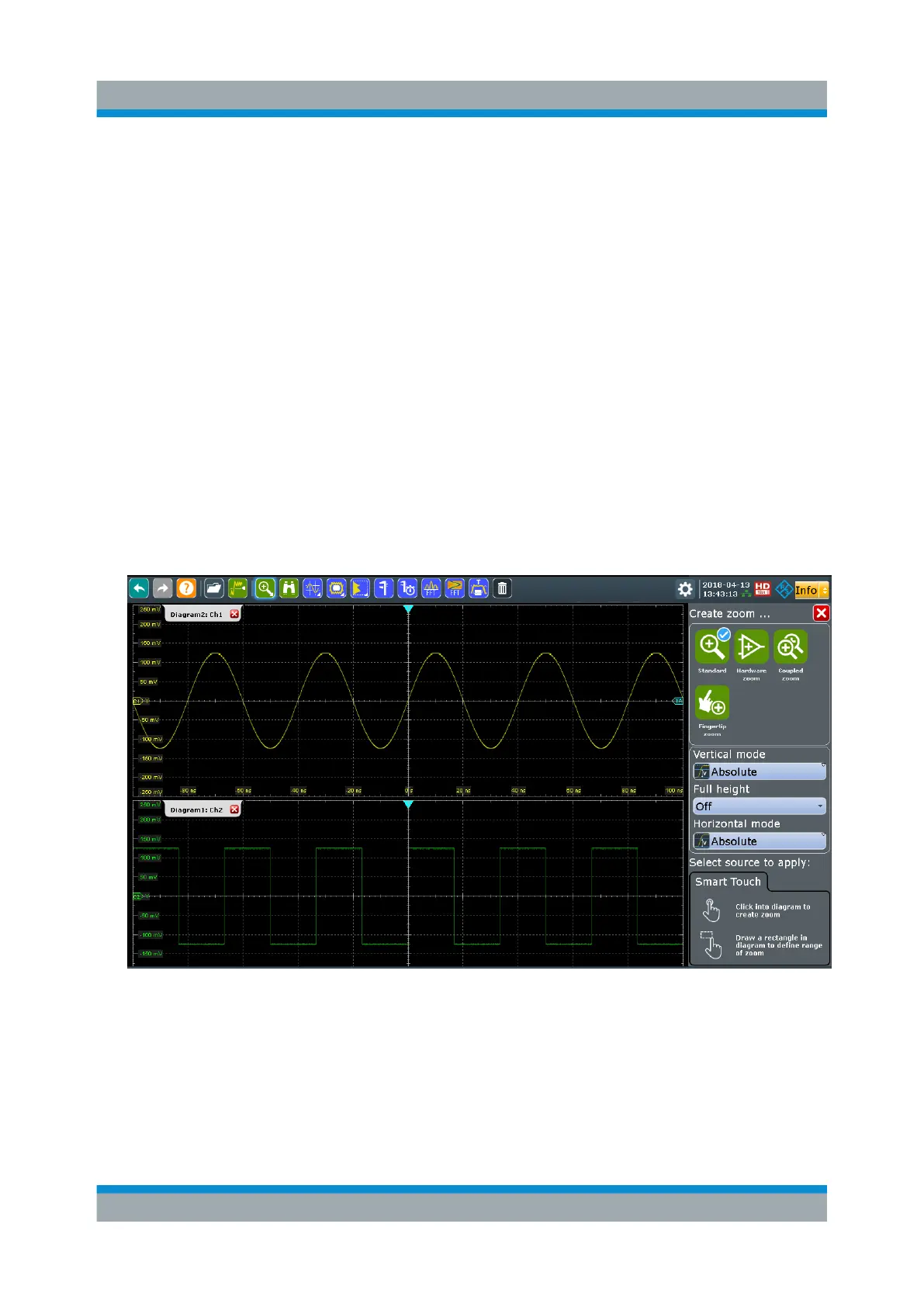

To use analyzing functions (interactive actions)
1. If several waveforms are shown in the diagram, select the waveform that you
want to analyze.
See: "To select a waveform" on page 48
2. Tap the icon of the function in the toolbar.
3. Check and adjust the settings in the sidebar on the right.
4. To define the analyzed area, do one of the following:
● Tap the required diagram.
● Drag a rectangle on the diagram.
