Roland Camm-1 GR2-640 User Manual

Loading Roll Material
Load the roll material on the cutting machine.
CAUTION
Load the roll media correctly.
Otherwise the media may fall and cause injury.
CAUTION
The roll media is approximately 24 kg (52.9 lb.) (54-inch model: 20 kg
[44.1 lb.]).
To avoid injury, handle the roll media with care.
CAUTION
Never load media that weighs over 24 kg (52.9 lb.) (54-inch model: 20 kg
[44.1 lb.]).
The machine may fail to withstand the weight and tip over or cause the media to fall.
Procedure

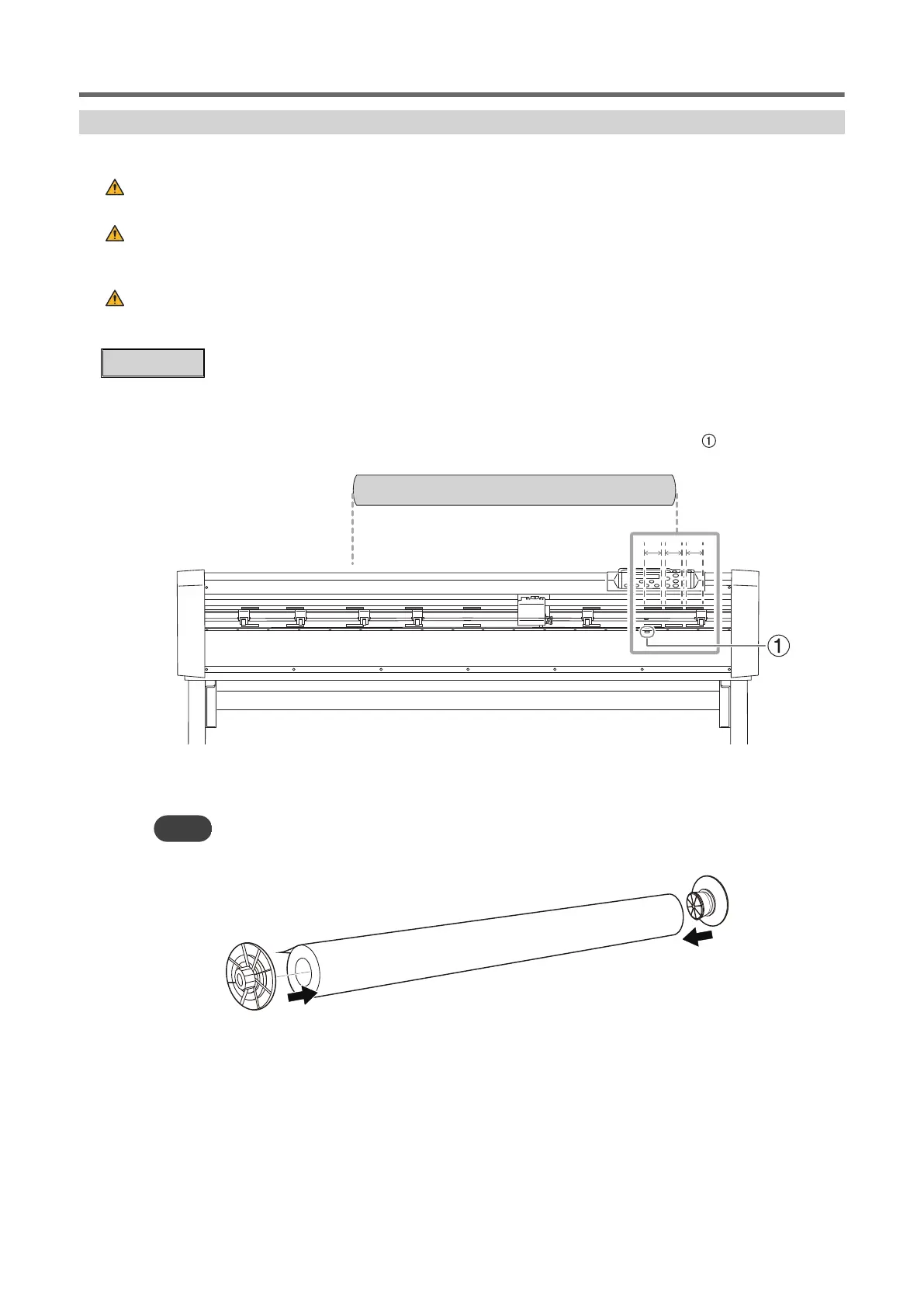

1. Determine the left and right edge positions of the roll material with the grit patterns as a reference.
Ensure that the right edge of the material (looking from the front of the machine) is positioned
so that it is within the range of the grit patterns and covers the paper sensor (
).
2. Insert the roll holder flanges into the paper tube of the roll material.
Turn the knobs of the roll holder flanges to securely attach them to the roll material.
MEMO
Roll holder flanges cannot be used for roll materials with an outer diameter of 160 mm (6.30 in.) or more or
for roll materials with 2-inch paper tubes.
3. Place the roll holder guide bushes by aligning them at both ends of the roll material.
Move the roll holder guide bushes with the resin bolts loosened.
Loading the Material
Basic Settings and Operations 23

Roland Camm-1 GR2-640 Specifications

General

Model	Roland Camm-1 GR2-640
Power Supply	AC 100 to 240 V ±10%, 50/60 Hz
Maximum Cutting Speed	1, 485 mm/s
Cutting Force	600 gf
Interface	USB 2.0, Ethernet
Maximum Cutting Area	1, 651 (W) x 50, 000 (L) mm
Blade Force	600 gf
Software Resolution	0.025 mm/step
Distance Accuracy	±0.1% of distance traveled, or ±0.1 mm
Repeatability	±0.1 mm
Alignment Accuracy for Print & Cut	±0.1 mm (0.0004 in) or less
Operating Temperature	5 to 40°C
Operating Humidity	35 to 80 % RH (no condensation)
Dimensions (with stand)	73.8 in. (W) x 28.5 in. (D) x 44.5 in. (H) (1, 875 mm (W) x 723 mm (D) x 1, 130 mm (H))
