Roland Color Camm Pro PC-60 User Manual

1 Structure & Spare Parts
1
1
1 Structure & Spare Parts

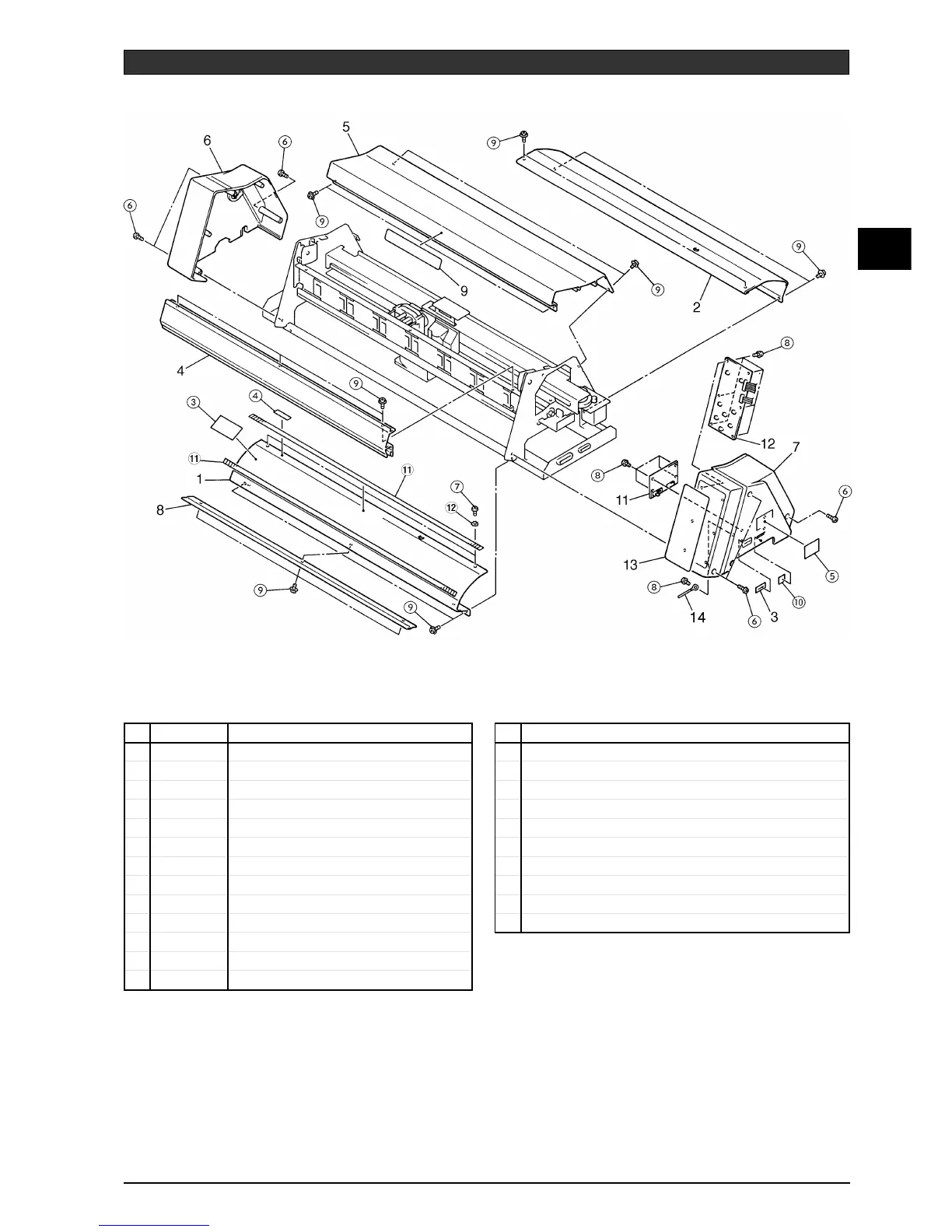

1-1 COVERS
PARTS LIST -Main Parts-
Parts No. Parts Name
1 22095102 APRON,F PC-60
2 22095101 APRON,R PC-60
3 22245101 COVER DUST PNC-960
4 22025230 COVER,FRONT PC-60
5 22025229 COVER,RAIL PC-60
6 22025227 COVER,SIDE L PC-60
7 22025228 COVER,SIDE R PC-60
8 22135529 GUIDE,CUTTER PC-60
9 22505284 LABEL,COLOR CAMM PRO PC60 #760
11 7435220020 PANEL BOARD ASS'Y
12 7435217010 PANELKEY BOARD ASS'Y
13 22665236 SHEET,PANEL SW PC-60
14 12369446 CS-2 CLIP
PARTS LIST -Supplemental Parts-
Parts Name
3 LABEL CAMM-1 WARNING
4 LABEL CAUTION PAD,PC-60 No.766
5 LABEL DIP SW PC60
6 SCREW BINDING HEAD Cr 3X8
7 SCREW BINDING HEAD BC 3X6
8 SCREW P-TIGHT BINDING HEAD BC 3X6
9 SCREW W-SEMS BC 3X6
0 TAPE 3M ELECTRICAL #1245 25X21
{ TAPE TAPE,GUIDE(CUT WHEN USING) L=820MM
} WASHER OUT SIDE TEETH Cr M3

Roland Color Camm Pro PC-60 Specifications

Operating Environment

operating temperature	15—30ºC
operating humidity	35—70% (non-condensing)
acoustic noise level (printing/cutting mode)	less than 60 dB (A)
acoustic noise level (standby mode)	less than 40 dB (A)

Power

power consumption at 100 V	0.9 A
power consumption at 117 V	0.8 A
power consumption at 220-240 V	0.45 A

Performance

acceptable media width	50 mm—610 mm
maximum work area	571.6 mm x 24998 mm
acceptable media thickness	0.23 mm—0.06 mm
cutter force	30 gf—200 gf
cutting speed	10 mm/sec.—200 mm/sec.
printing speed	Max. 130 mm/sec.
cutting resolution	0.025 mm/step
printing resolution	600 dpi
cutting accuracy	Less than +/-0.3 % of distance traveled or +/-0.3 mm
registration between printing/cutting	Less than +/-0.3 mm

System Memory

memory	2 Mb

Ports & Interfaces

interface type	Parallel (Centronics), Serial (RS-232C, RS-422)
transmission speed (RS-232C)	9600, 19200
transmission speed (RS-422)	115.2 Kbps, 57.6 Kbps

Weight and Dimensions

main unit dimensions (width x depth x height)	1016 mm x 326 mm x 266 mm
main unit dimensions with open cover (width x depth x height)	1016 mm x 326 mm x 355 mm
dimensions with stand (width x depth x height)	1016 mm x 326 mm x 1125 mm
dimensions with stand and open cover (width x depth x height)	1016 mm x 326 mm x 1214 mm
main unit weight	26 kg
weight with stand	45 kg
