Roland Color Camm Pro PC-60 User Manual

About the Labels Affixed to the Unit@{\tx´¢˜
In addition to the and symbols, the symbols shown below are also used.
kgf•cm
8
: Tips and advice before the adjustment.
: Indicates tightening torque.
: Indicates amount for Pen Pressure and Tension.
: Indicates clearance.

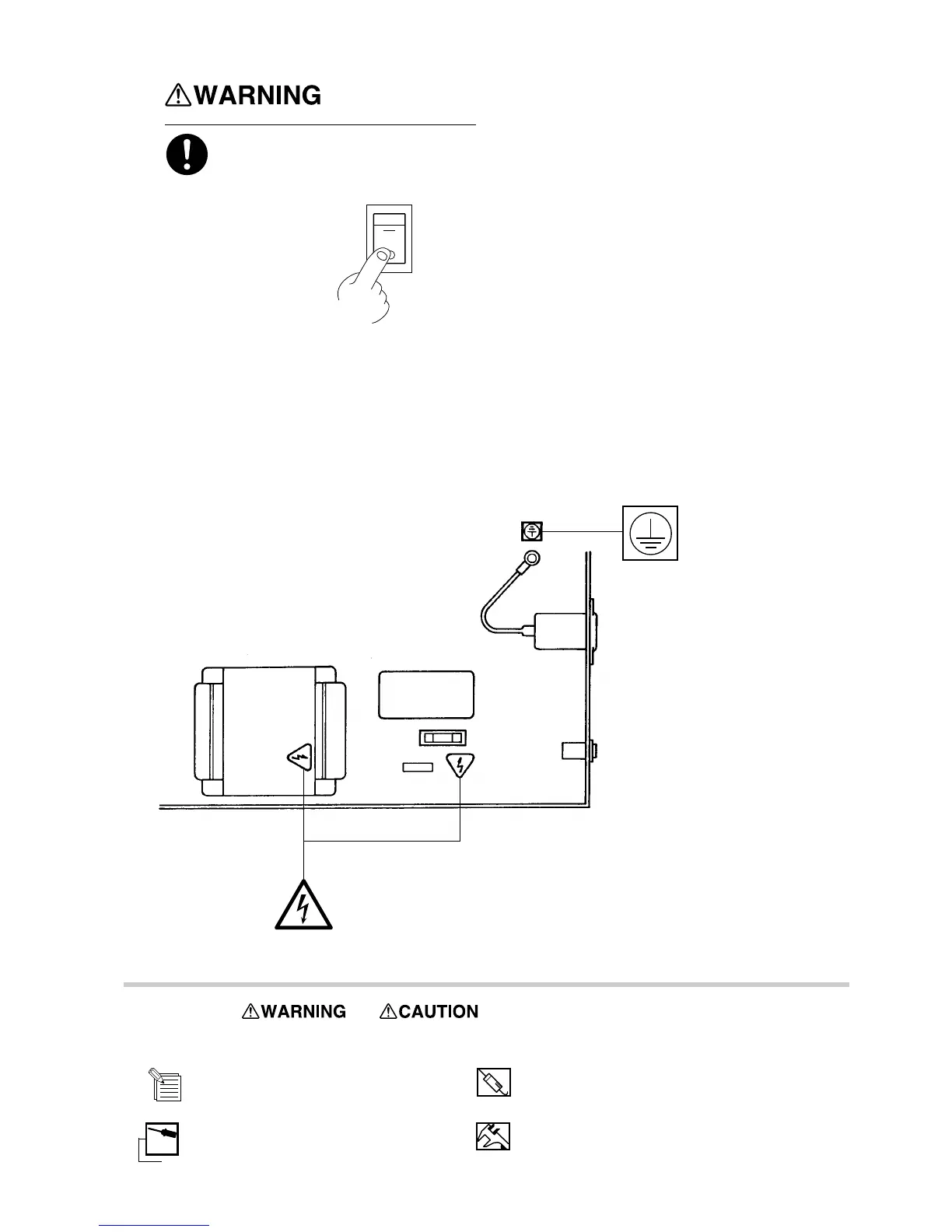

About the Labels Affixed to the Unit
These labels are affixed to the body of this product.
The following figure describes the location.
Electric charge.
Do not touch when power is on.
The wiring terminal intended for
connecetiion of the protective
earthing conductor associated
with the supply wiring.
Do not disconnect the cable of
this terminal except the time of
replacement.
Turn off the main power SW before
servicing.
Main power SW still supplied even sub
power SW is turned off.
Torque

Roland Color Camm Pro PC-60 Specifications

Operating Environment

operating temperature	15—30ºC
operating humidity	35—70% (non-condensing)
acoustic noise level (printing/cutting mode)	less than 60 dB (A)
acoustic noise level (standby mode)	less than 40 dB (A)

Power

power consumption at 100 V	0.9 A
power consumption at 117 V	0.8 A
power consumption at 220-240 V	0.45 A

Performance

acceptable media width	50 mm—610 mm
maximum work area	571.6 mm x 24998 mm
acceptable media thickness	0.23 mm—0.06 mm
cutter force	30 gf—200 gf
cutting speed	10 mm/sec.—200 mm/sec.
printing speed	Max. 130 mm/sec.
cutting resolution	0.025 mm/step
printing resolution	600 dpi
cutting accuracy	Less than +/-0.3 % of distance traveled or +/-0.3 mm
registration between printing/cutting	Less than +/-0.3 mm

System Memory

memory	2 Mb

Ports & Interfaces

interface type	Parallel (Centronics), Serial (RS-232C, RS-422)
transmission speed (RS-232C)	9600, 19200
transmission speed (RS-422)	115.2 Kbps, 57.6 Kbps

Weight and Dimensions

main unit dimensions (width x depth x height)	1016 mm x 326 mm x 266 mm
main unit dimensions with open cover (width x depth x height)	1016 mm x 326 mm x 355 mm
dimensions with stand (width x depth x height)	1016 mm x 326 mm x 1125 mm
dimensions with stand and open cover (width x depth x height)	1016 mm x 326 mm x 1214 mm
main unit weight	26 kg
weight with stand	45 kg
