Roland Color Camm Pro PC-60 User Manual

87
6 Trouble Shooting
6

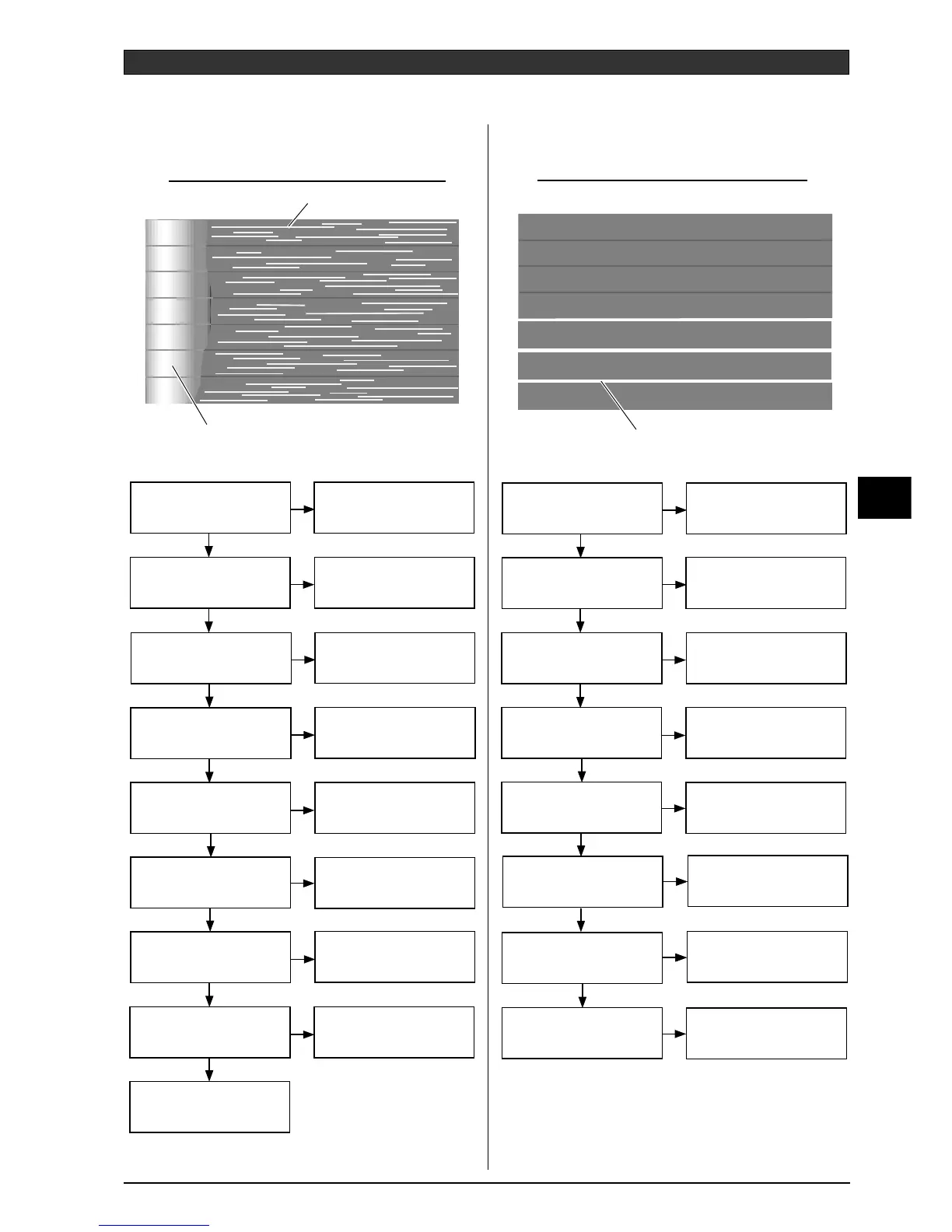

6 Troubleshooting
GAP BETWEEN BANDSSCRATCHY PRINTING/WHITE LINE IN BAND
6-1 PRINTING
SCRATCHY PRINTING
WHITE LINE IN BAND
GAP BETWEEN BANDS
Replace the CLEANING PAD.
Fix the PLATEN DAMPER.again.
NO
YES
YES
Adjust HEAD POSITION.
Adjust HEAD VOLTAGE.
Replace the PLATEN DAMPER.
Is the CLEANING PAD dirty?
Is the PLATEN DAMPER loose?
Is the PLATEN DAMPER flat and smooth?
YES
Is the HEAD POSITION OK?
YES
Is the HEAD VOLTAGE OK?
NO
NO
NO
NO
YES
Life of the HEAD. Replace the HEAD
ASSEMBLY.
Clean the Media with alcohol.
Clean the HEAD.
NO
YES
Is the Media dirty?
Is the HEAD dirty?
YES
NO
Adjust HEAD DENSITY ADJUSTMENT.
YES
Is the HEAD DENSITY ADJUSTMENT
OK?
NO
Replace the PINCH ROLLER.
YES
NO
YES
Accommodate Media in environment.
Adjust GRIT COMPENSATION.
Set the Media correctly.
Is the Media set correctly?
Is the PINCH ROLLER worn out?
Is the GRIT COMPENSATION correct?
NO
Has the Media been accommodated in
environment?
YES
NO
YES
NO
Is the GRIT HOME POSITION SENSOR
OK?
Replace the GRIT HOME POSITION
SENSOR.
NO
YES
NO
Set the LINE SPACING ADJUSTMENT to
default.
Is the LINE SPACING ADJUSTMENT
for users set to default?
Adjust GRIT ECCENTRICITY.
Is the GRIT ECCENTRICITY
ADJUSTMENT OK?
YES
NO
Is the HEAD POSITION aligned OK?
Align the HEAD POSITION.
NO
YES

Roland Color Camm Pro PC-60 Specifications

Operating Environment

operating temperature	15—30ºC
operating humidity	35—70% (non-condensing)
acoustic noise level (printing/cutting mode)	less than 60 dB (A)
acoustic noise level (standby mode)	less than 40 dB (A)

Power

power consumption at 100 V	0.9 A
power consumption at 117 V	0.8 A
power consumption at 220-240 V	0.45 A

Performance

acceptable media width	50 mm—610 mm
maximum work area	571.6 mm x 24998 mm
acceptable media thickness	0.23 mm—0.06 mm
cutter force	30 gf—200 gf
cutting speed	10 mm/sec.—200 mm/sec.
printing speed	Max. 130 mm/sec.
cutting resolution	0.025 mm/step
printing resolution	600 dpi
cutting accuracy	Less than +/-0.3 % of distance traveled or +/-0.3 mm
registration between printing/cutting	Less than +/-0.3 mm

System Memory

memory	2 Mb

Ports & Interfaces

interface type	Parallel (Centronics), Serial (RS-232C, RS-422)
transmission speed (RS-232C)	9600, 19200
transmission speed (RS-422)	115.2 Kbps, 57.6 Kbps

Weight and Dimensions

main unit dimensions (width x depth x height)	1016 mm x 326 mm x 266 mm
main unit dimensions with open cover (width x depth x height)	1016 mm x 326 mm x 355 mm
dimensions with stand (width x depth x height)	1016 mm x 326 mm x 1125 mm
dimensions with stand and open cover (width x depth x height)	1016 mm x 326 mm x 1214 mm
main unit weight	26 kg
weight with stand	45 kg
